LT-50T Semi-Automatic Round Bottle Labeling Machine

LT-50T Semi-Automatic Round Bottle Labeling Machine

LT-50T is the configuration without a coder of the same base machine sold as LT-50D with a coder. It applies one label per round bottle, with manual loading and unloading and press-down microswitch activation. Select the LT-50D configuration if you need thermal ribbon date coding on labels.

LT-50T Semi-Automatic Round Bottle Labeling Machine

The LT-50T is a round bottle labeler supplied without a coding unit. It shares the same base machine as the LT-50D: selecting the thermal ribbon coder changes the configuration designation to LT-50D.

Choose the Configuration for Your Labeling Job

LT-50T: Supplied without a coder. Choose this configuration when label date printing is not required.
LT-50D: The configuration fitted with a thermal ribbon coder for dates and similar information on labels. Selecting the coding option adds cost compared with LT-50T.
LT-50S: A simplified, economical version that cannot be fitted with a coder.

See the LT-50D with coder or the simplified LT-50S to compare options. Tell us about coding requirements before ordering so the quotation names the correct configuration.

Manual Bottle Handling and Microswitch Start

The operator places the bottle in the labeling position by hand. The downward pressing action triggers a microswitch to start labeling. After the labeling cycle, the operator removes the bottle and loads the next one.

This machine is for single-label applications. If you need separate front and back labels, ask us to recommend a suitable double-label model.

Bottle and Label Compatibility

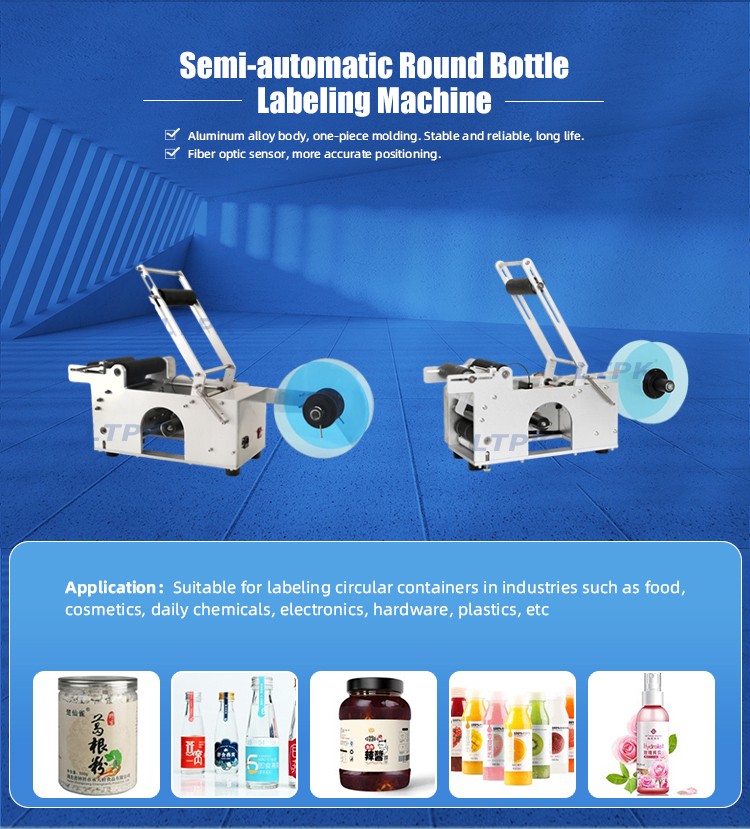

The listed bottle diameter range is 20–130 mm. Label height is 30–130 mm and label length is 30–300 mm. Applications include round beverage bottles, cosmetic containers and food jars. Send actual bottle and label samples to confirm suitability and label position.

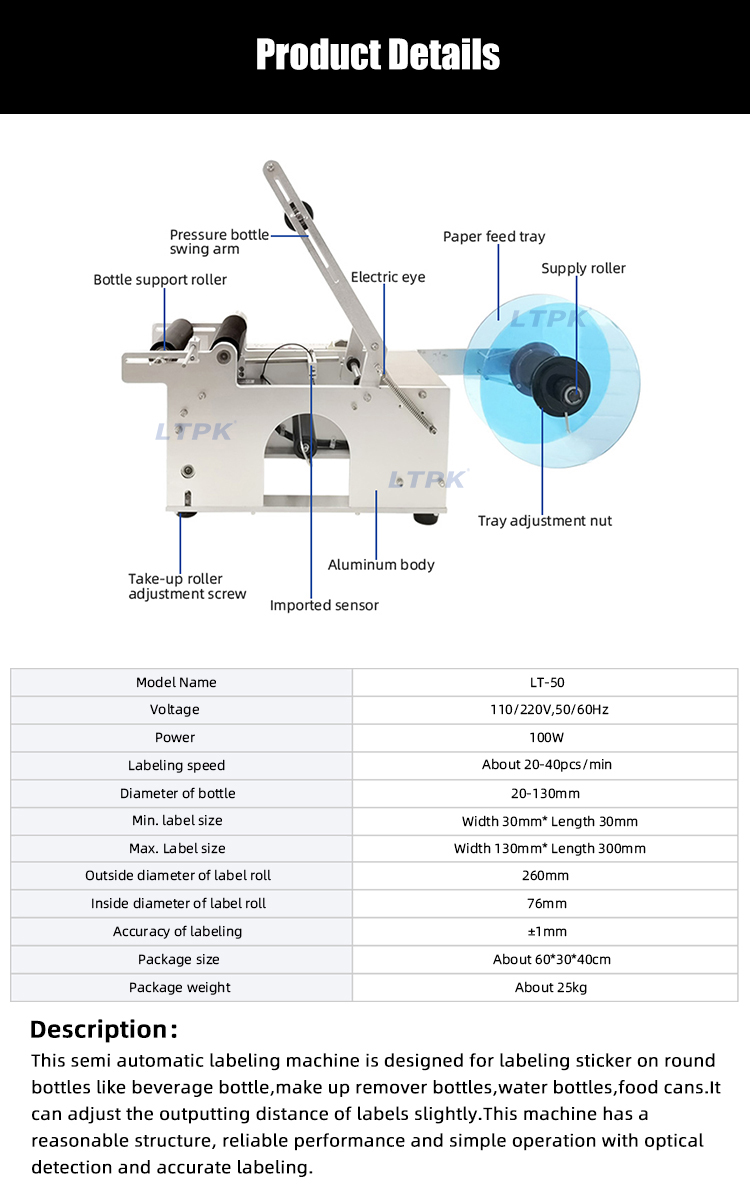

Technical Specifications

Model	LT-50T
Voltage	110/220V,50/60Hz
Power	100W
Labeling speed	About 20-40pcs/min
Diameter of bottle	20-130mm
Min. label size	Width 30mm* Length 30mm
Max. Label size	Width 130mm* Length 300mm
Outside diameter of label roll	260mm
Inside diameter of label roll	76mm
Accuracy of labeling	±1mm
Package size	About 60 × 30 × 40 cm
Package weight	About 25kg

The listed speed is approximately 20–40 pcs/min, where pcs refers to bottles. Actual output depends on the label, bottle and manual handling. Confirm performance for your application using samples.

Transparent Labels and Coding

Transparent labels require an optional sensor at an additional cost. This is separate from the coding configuration. LT-50T has no coder; select LT-50D when thermal ribbon date printing on labels is required.

Frequently Asked Questions

What is the difference between LT-50T and LT-50D?

They are configurations of the same base machine. LT-50T has no coder; the machine fitted with the coding option is called LT-50D.

Is LT-50T the same as LT-50S?

No. LT-50S is a simplified version that cannot accept a coder. LT-50T belongs to the machine family available as LT-50D with coding.

Can LT-50T apply two labels to one bottle?

No. It is intended for single-label applications. Tell us if you need separate front and back labels so we can select another model.

How is the labeling cycle started?

The downward pressing action triggers a microswitch. Bottles are loaded and removed manually.

What details should I provide for a quotation?

Send bottle dimensions and photos or samples, label dimensions and material, desired label position, target output and any date-printing requirements. Disclose transparent labels so the required sensor can be included in the quotation.

Warranty and Lead Time

The equipment warranty is generally one year, subject to agreed terms. Standard lead time is generally 3–5 days. Custom requirements need a separately confirmed lead time after the details are agreed.
