LT-50S Semi-Automatic Round Bottle Labeling Machine

LT-50S Semi-Automatic Round Bottle Labeling Machine

LT-50S is the simplified, economical version of the LT-50D round bottle labeling machine. It is a practical choice when date printing on labels is not required. A coding unit cannot be added to the LT-50S. For label date printing, choose LT-50D, the configuration with a thermal ribbon coder. The same base machine without a coder is LT-50T.

LT-50S Semi-Automatic Round Bottle Labeling Machine

The LT-50S is a simplified, economical version of the LT-50D for round bottle labeling. It is suited to customers who need to apply labels without printing dates or other coding information on them during labeling.

Choose LT-50S When Label Printing Is Not Required

If your labeling process does not require date printing on the label, the LT-50S offers a more economical choice than the LT-50D. Send your bottle and label details so we can confirm suitability and provide a quotation.

LT-50S vs. LT-50D: Coding Capability

LT-50S: The standard, simplified version. A coding unit cannot be added.
LT-50D: The configuration fitted with a thermal ribbon coder for printing dates and similar information on labels. The same base machine without a coder is called LT-50T.

If coding is required now or planned for the machine, consider the LT-50D round bottle labeling machine. Do not select the LT-50S on the assumption that a coder can be added later.

Bottle and Label Compatibility

The listed bottle diameter range is 20–120 mm. Label height is 30–130 mm and label length is 30–300 mm. Typical applications include round beverage bottles, cosmetic bottles and food containers. Confirm the bottle shape, label material and application position with samples before ordering.

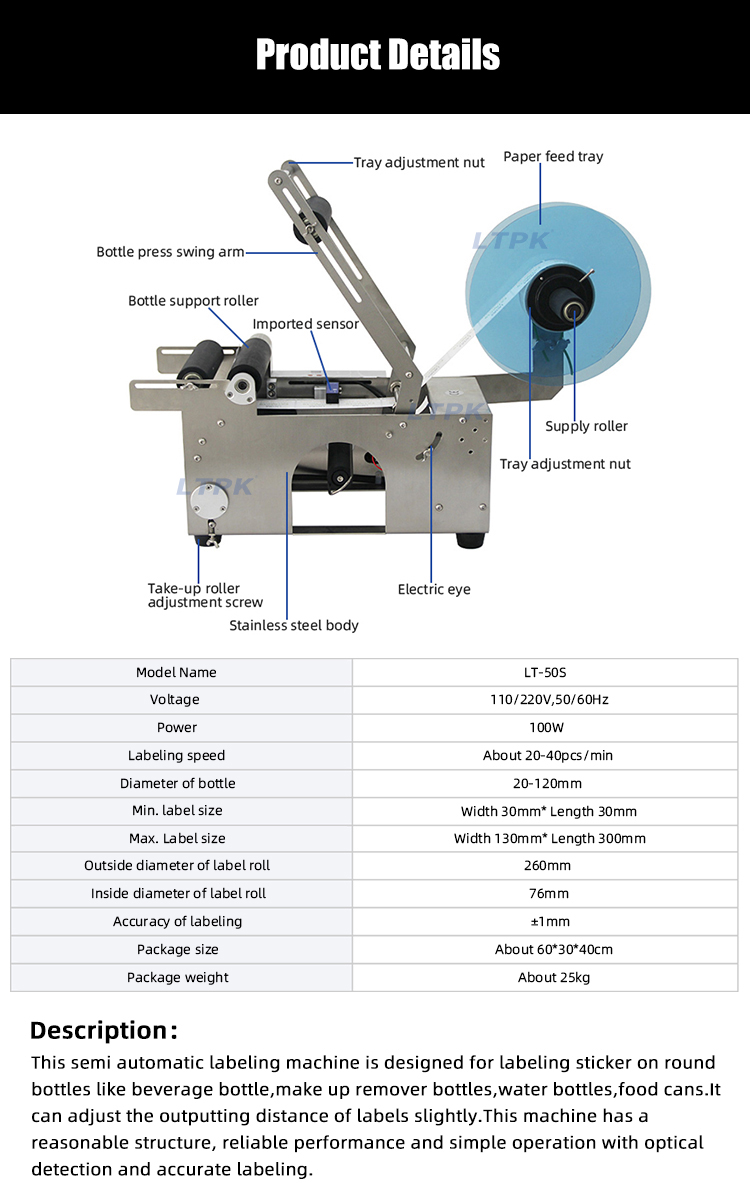

Technical Specifications

Model	LT-50S
Voltage	110/220V,50/60Hz
Power	100W
Labeling speed	About 20-40pcs/min
Diameter of bottle	20-120mm
Min. label size	Width 30mm* Length 30mm
Max. Label size	Width 130mm* Length 300mm
Outside diameter of label roll	260mm
Inside diameter of label roll	76mm
Accuracy of labeling	±1mm
Package size	About 603040cm
Package weight	About 25kg

The listed speed is approximately 20–40 pcs/min, where pcs refers to bottles. Actual output depends on the application and operating conditions; confirm performance with your samples.

Transparent Labels

Transparent labels require an optional transparent-label sensor at an additional cost. Tell us if you use transparent labels when requesting a quotation. This sensor option does not add coding capability to the LT-50S.

Frequently Asked Questions

What is the difference between LT-50S and LT-50D?

LT-50S is the simplified, more economical version for labeling without an add-on coder. LT-50D is the configuration with a thermal ribbon coder; LT-50T is the same base machine without the coder.

Can a date coder be added to LT-50S later?

No. LT-50S cannot be fitted with a coding unit. Choose the LT-50D coding configuration if date printing on labels is required.

Which model should I choose if I do not need date printing?

LT-50S is the more economical choice when its bottle and label specifications fit your application and label date printing is not required.

Can I use transparent labels?

Transparent labels require an optional sensor at an additional cost. Provide your label samples and disclose this requirement before ordering.

What should I send for a quotation?

Send bottle dimensions and photos or samples, label dimensions and material, desired label position and target output. Tell us whether date printing is required so we can recommend the correct model.

Warranty and Lead Time

The equipment warranty is generally one year, subject to the agreed terms. Standard lead time is generally 3–5 days. Custom requirements need a separately confirmed lead time after details are agreed.
