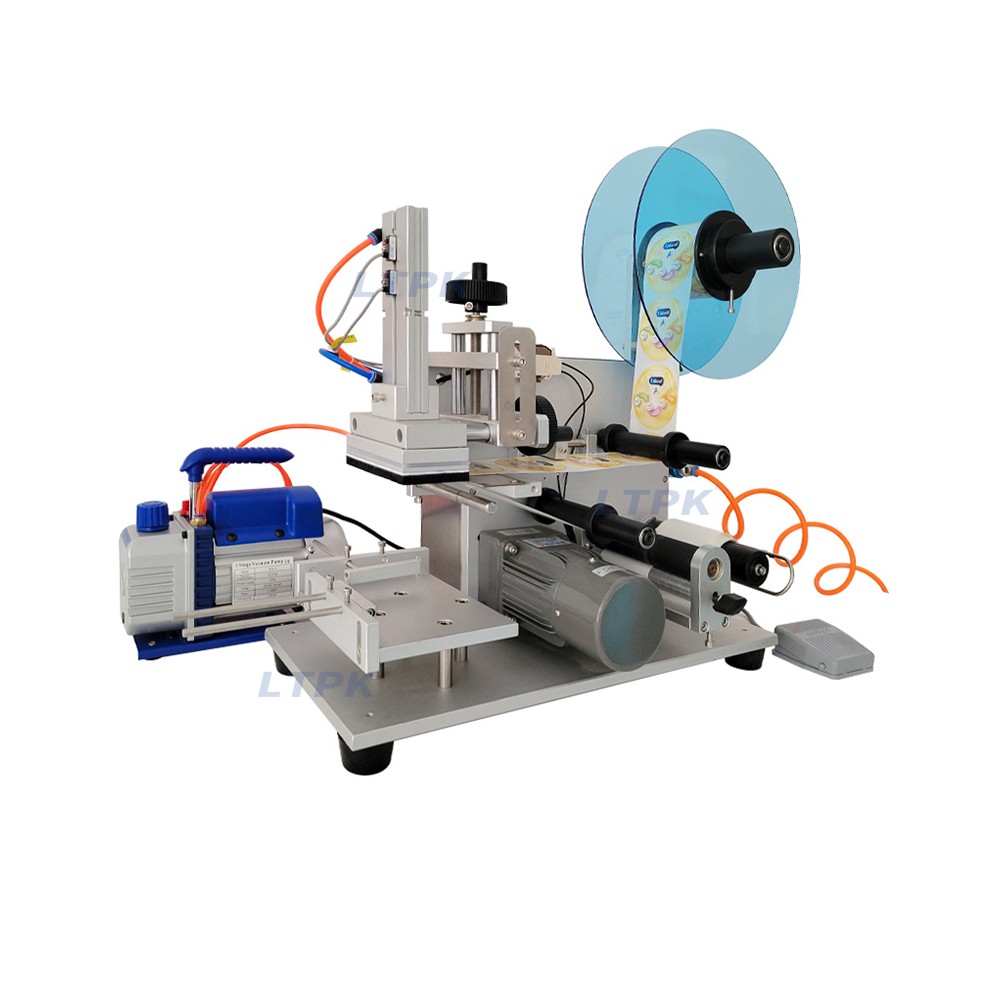

LT-60 Semi-Automatic Flat Surface Labeling Machine

LT-60 Semi-Automatic Flat Surface Labeling Machine

LT-60 is a semi-automatic flat surface labeler with an older, mainly pneumatic control design without a microprocessor. Products are positioned manually for labeling. Curved or concave surfaces require custom fixtures. Consider LT-T303 for PLC and HMI control when budget allows.

LT-60 Semi-Automatic Flat Surface Labeling Machine

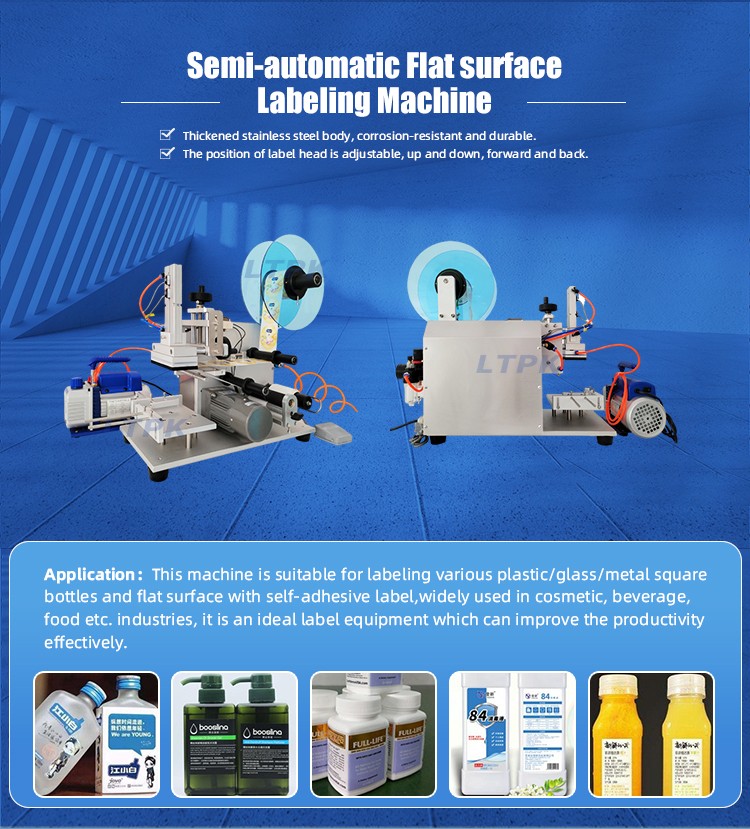

LT-60 is designed for self-adhesive labeling on suitable flat surfaces, including the flat faces of square containers. The operator places the product manually and the machine completes labeling. Product shape, stability and label position should be checked with samples.

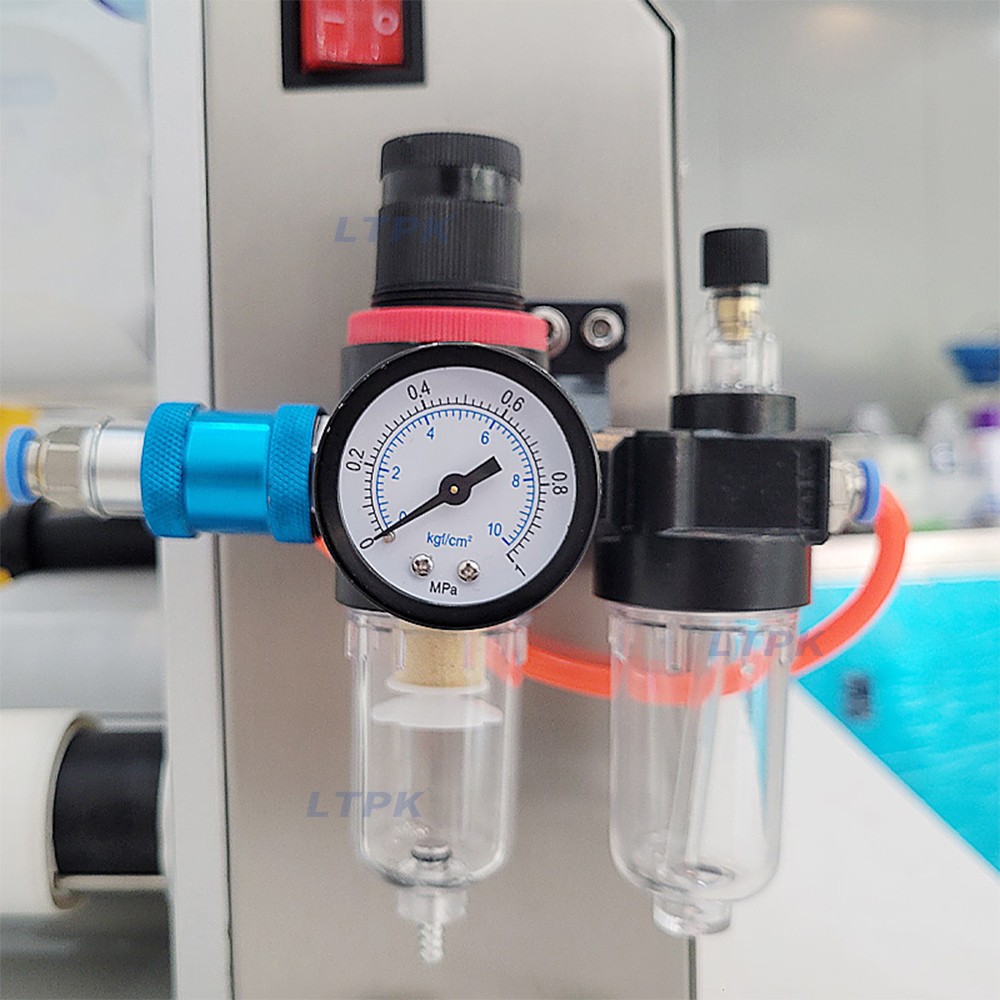

Mainly Pneumatic Control

LT-60 uses an older design based mainly on pneumatic control, without a microprocessor. For customers with sufficient budget, we recommend comparing the LT-T303 with PLC and HMI control.

Custom Fixtures for Non-Flat Surfaces

Concave or curved surfaces require custom fixtures, whether LT-60 or LT-T303 is selected. Supply samples for feasibility and fixture design confirmation before ordering.

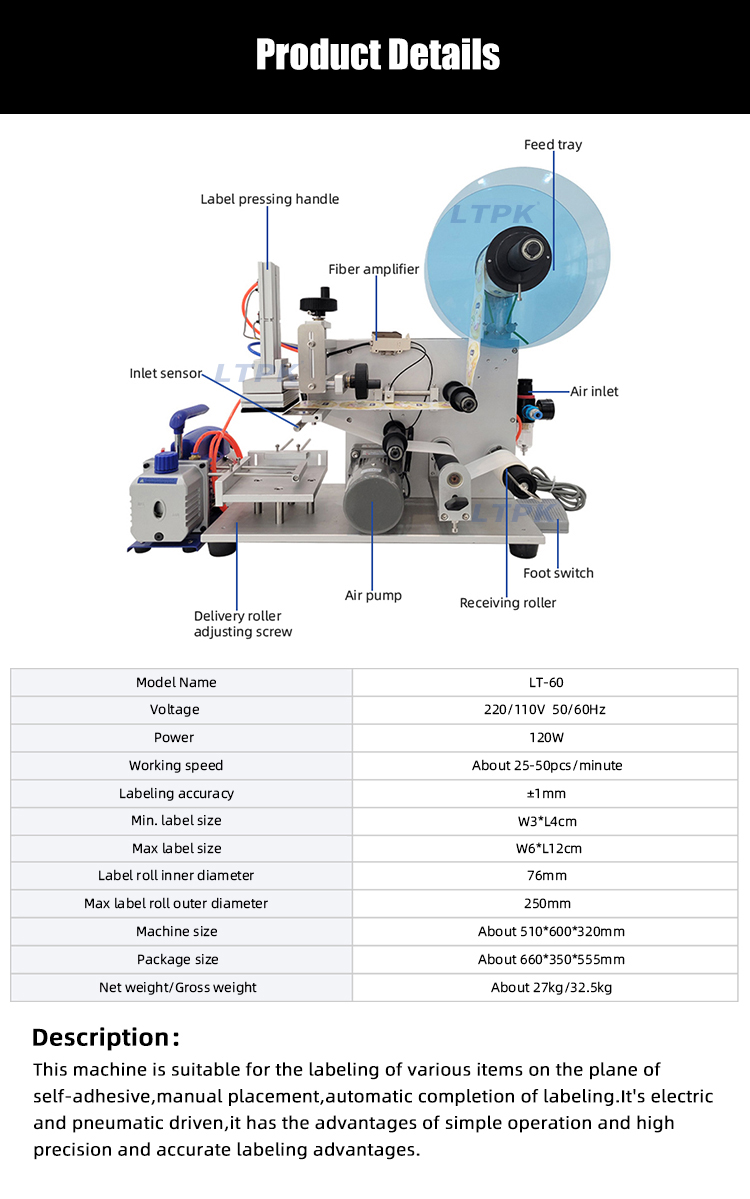

Listed Technical Specifications

Model	LT-60
Voltage	220/110V 50/60Hz
Power	120W
Working speed	About 25-50pcs/minute
Labeling accuracy	±1mm
Min. label size	W3*L4cm
Max label size	W6*L12cm
Label roll inner diameter	76mm
Max label roll outer diameter	250mm
Machine size	About 510600320mm
Package size	About 660350555mm
Net weight/Gross weight	About 27kg/32.5kg

Actual output and accuracy depend on the product, label, fixture and operating conditions. An air compressor is not supplied as standard; arrange the air supply after confirming the machine requirements.

Frequently Asked Questions

How does LT-60 differ from LT-T303?

LT-60 uses mainly pneumatic control without a microprocessor. LT-T303 offers PLC and HMI control and is recommended when budget allows.

Are products loaded automatically?

Products are placed manually for the labeling operation. Confirm the required workflow with your samples.

Can it label curved surfaces?

A custom fixture and sample evaluation are required. This is not a universal standard capability.

Can a coder be added?

Coder compatibility is not confirmed for this compact model. Request technical confirmation if your application needs date or batch printing.

Before Ordering

Send product dimensions, photos or samples, label size and material, required label position and target output. Confirm suitability and performance with your actual samples. Transparent labels require an optional sensor at an additional cost.

Warranty and Lead Time

The equipment warranty is generally one year, subject to agreed terms. Standard lead time is generally 3–5 days. Custom requirements need a separately confirmed lead time after the details are agreed.
