LT-80 Pneumatic Round Bottle Labeling Machine

LT-80 pneumatic round bottle labeling machine

The LT-80 is a pneumatic improvement on the LT-50T operating concept. Instead of manually lowering the rubber roller, an air cylinder lowers it before labeling. This distinction is useful when choosing a round bottle labeler based on how the clamping action is performed.

LT-80 versus LT-50T

With the LT-50T, the operator places the bottle and manually lowers the rubber roller to trigger labeling. LT-80 uses a cylinder for the roller-lowering action. The operator places the bottle manually. Confirm the start control for your quoted configuration.

Clamped-position labeling

The bottle is held at the labeling station while the label is applied. Holding it at a station does not mean registration to a seam, logo or other bottle feature is standard. Feature-oriented positioning requires application-specific customization, such as a custom roller or additional position sensor.

Applying two labels

LT-80 uses manual bottle placement. Applying two labels means the operator performs the operation twice; this is not automatic two-label application in a single cycle.

Frequently asked questions

What is the main improvement over LT-50T?

The rubber roller is lowered by an air cylinder rather than by hand.

Is an air compressor included?

No. Customers supply the compressor. Confirm the required air supply for the selected configuration.

Is LT-SL130D the same model family?

No. LT-SL130D is a separate series. Both use clamped-position labeling, but their features and specifications should be compared individually.

Can I use transparent labels?

Tell us in advance. A transparent-label sensor is an extra-cost option.

Can I label at a particular feature on the bottle?

This requires a custom assessment; clamping at the labeling station is not the same as detecting a particular bottle feature.

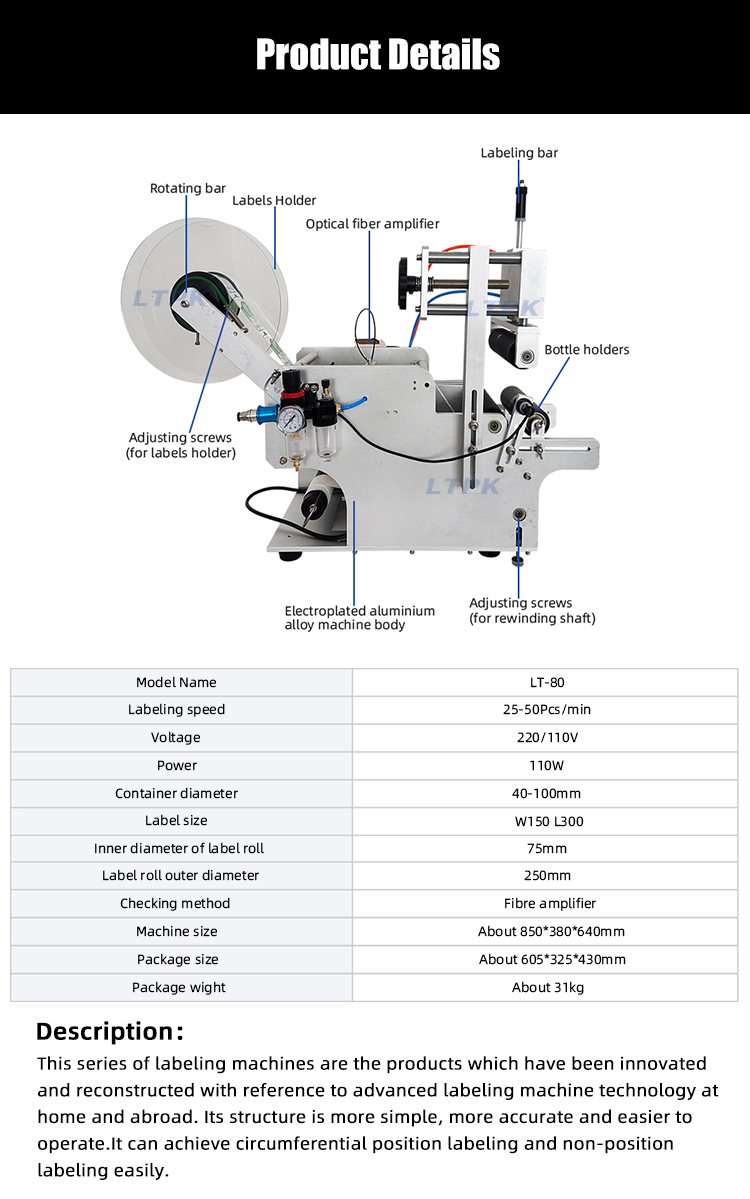

Listed technical specifications

The listed machine and packing dimensions require confirmation before shipping arrangements. Please request the dimensions of the final configuration.

Options and ordering

Please send product photos and dimensions, label artwork and size, the required label position and target output. Transparent labels require an optional sensor at extra cost; tell us before ordering. If date or batch printing is required, ask us to confirm coder compatibility and quote any additional equipment separately. Air compressors are not included; customers provide their own where compressed air is required.

Warranty and lead time

The standard equipment warranty is generally one year. Standard equipment usually has a lead time of 3–5 days. Custom equipment delivery is agreed after the specifications are confirmed.

Request a quotation: portiaxie@fillinglabeling.com | WhatsApp +86 15070838530.

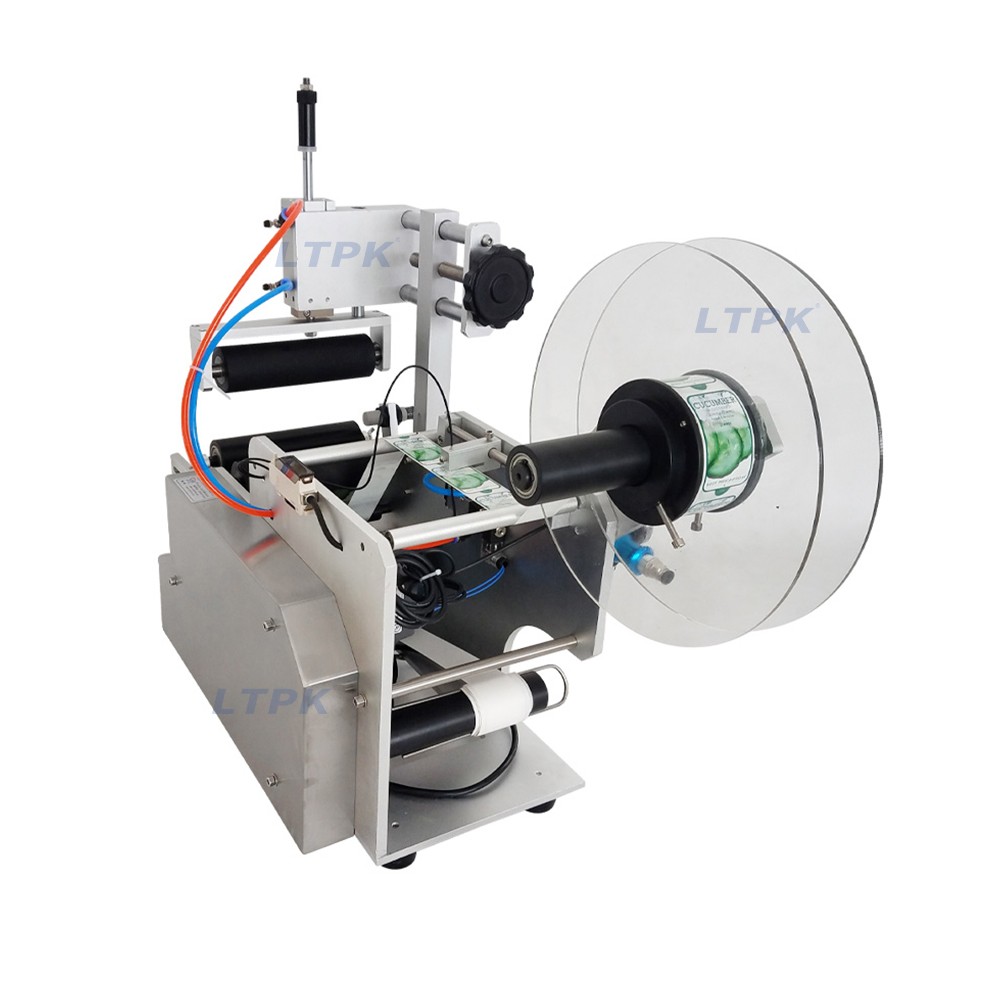

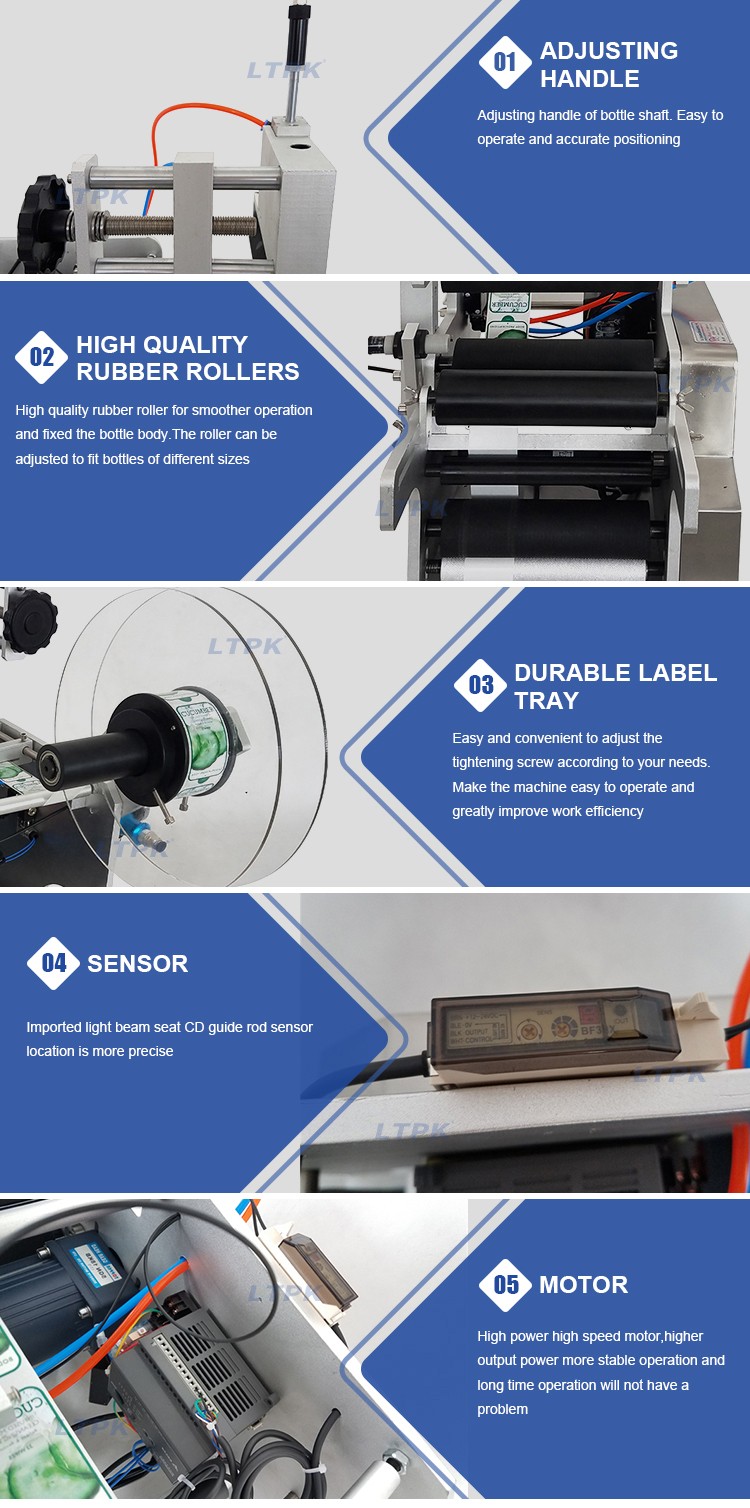

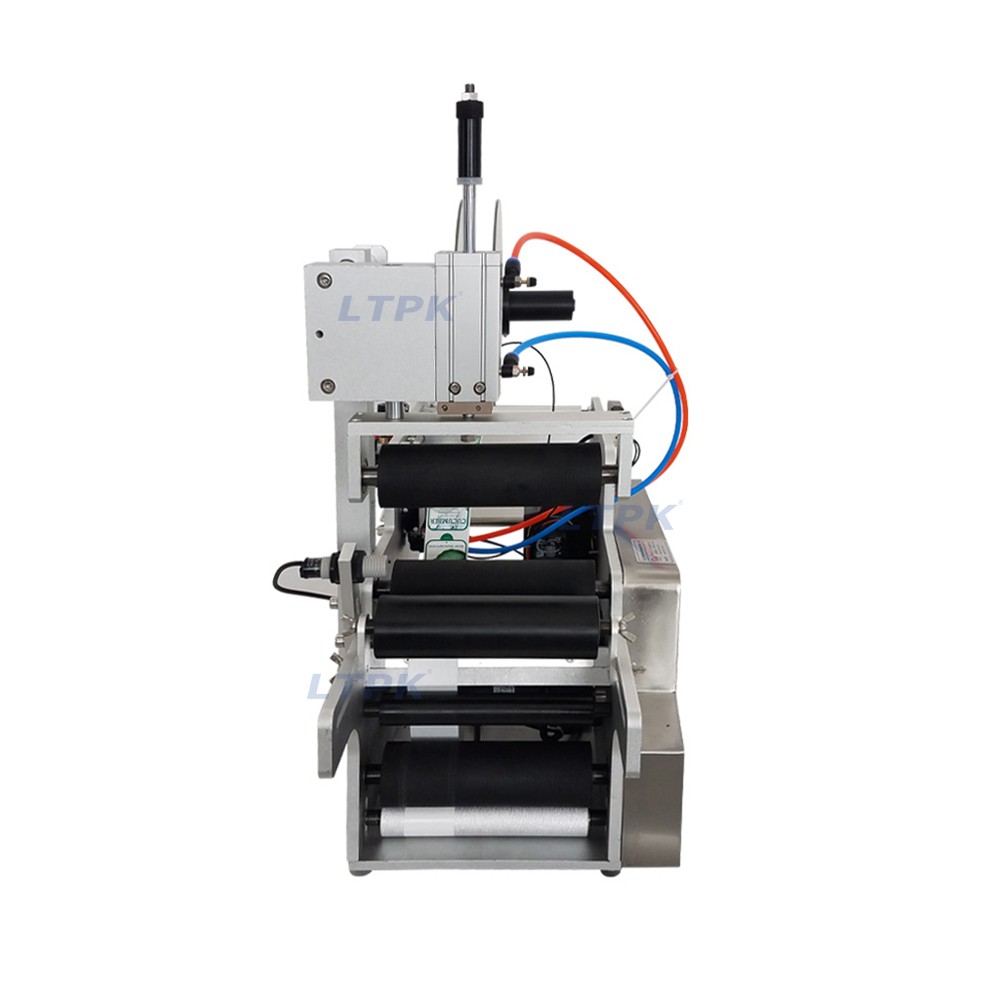

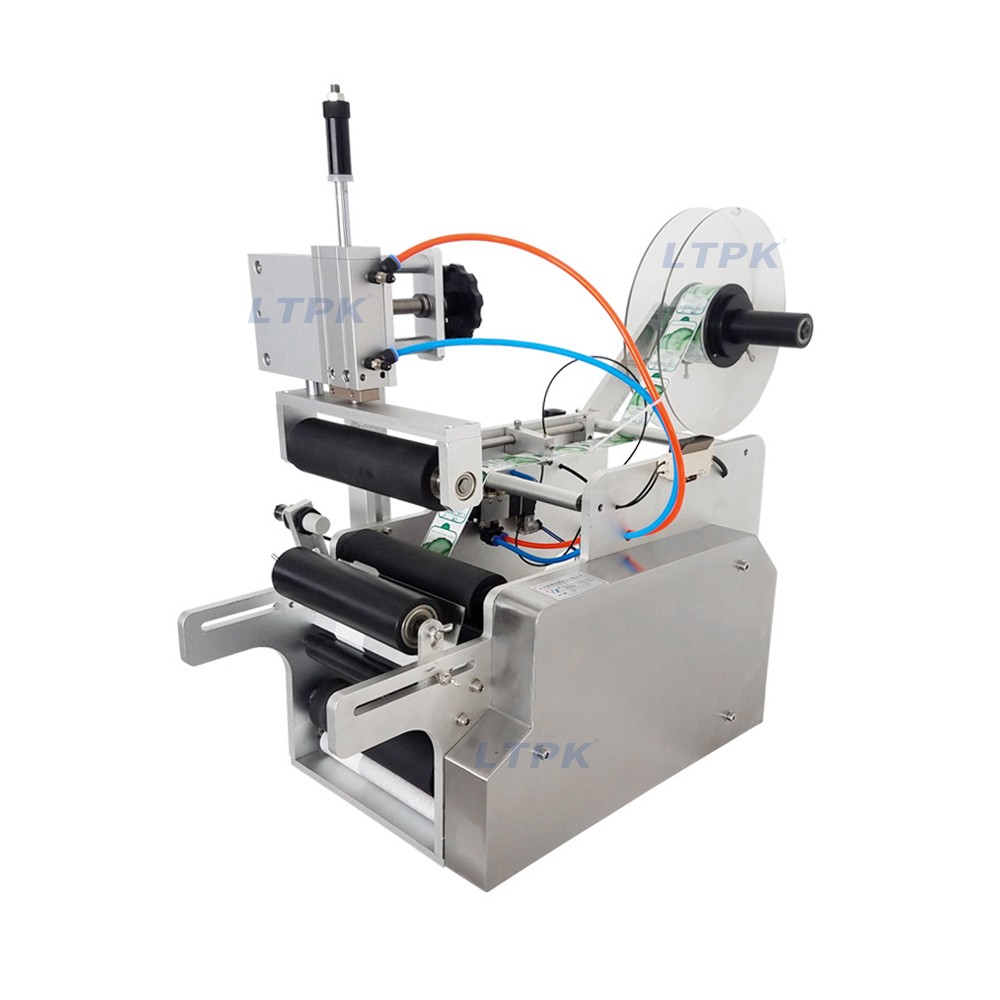

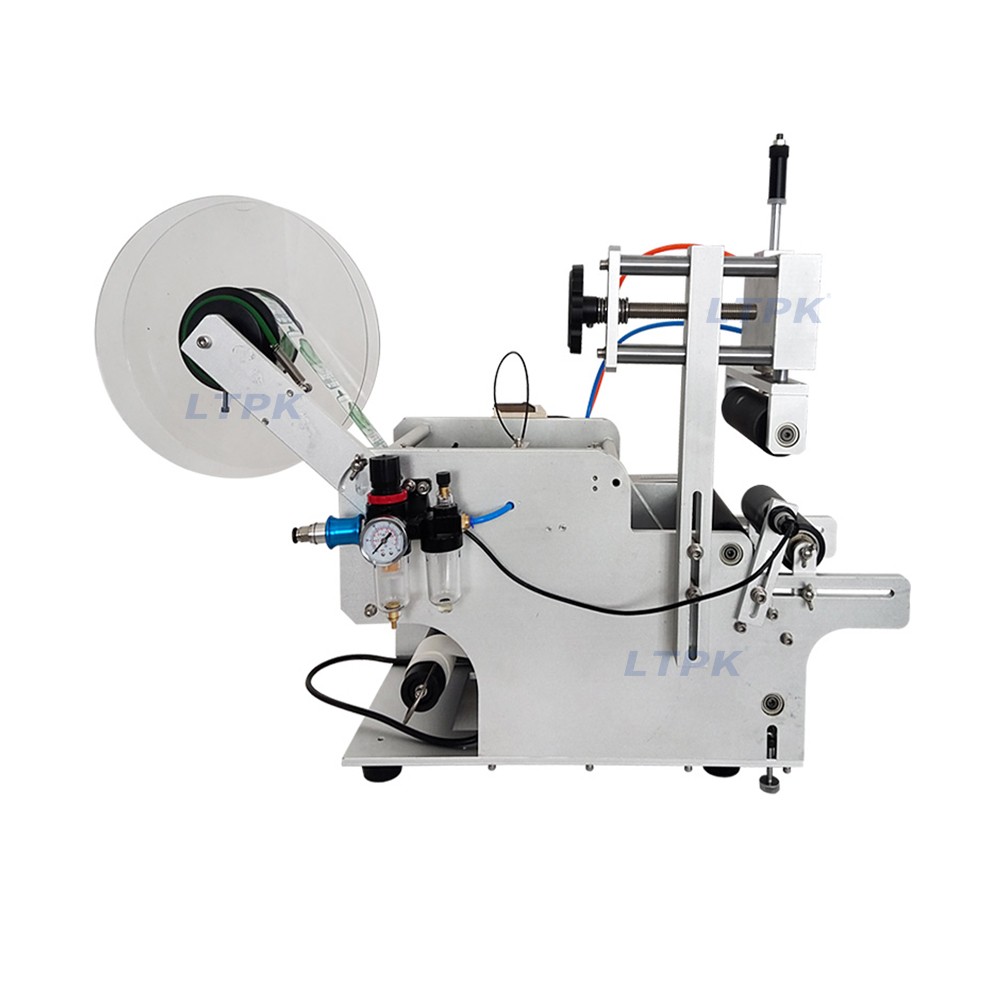

Machine images
