LT-T901 Semi-Automatic Wire and Tube Flag Labeling Machine

Purpose-built wire and tube folding labeler. A label is held by suction on a platform, moved beneath the product and folded upward by a cylinder. Extra fixtures are generally unnecessary; product diameter is the key compatibility limit.

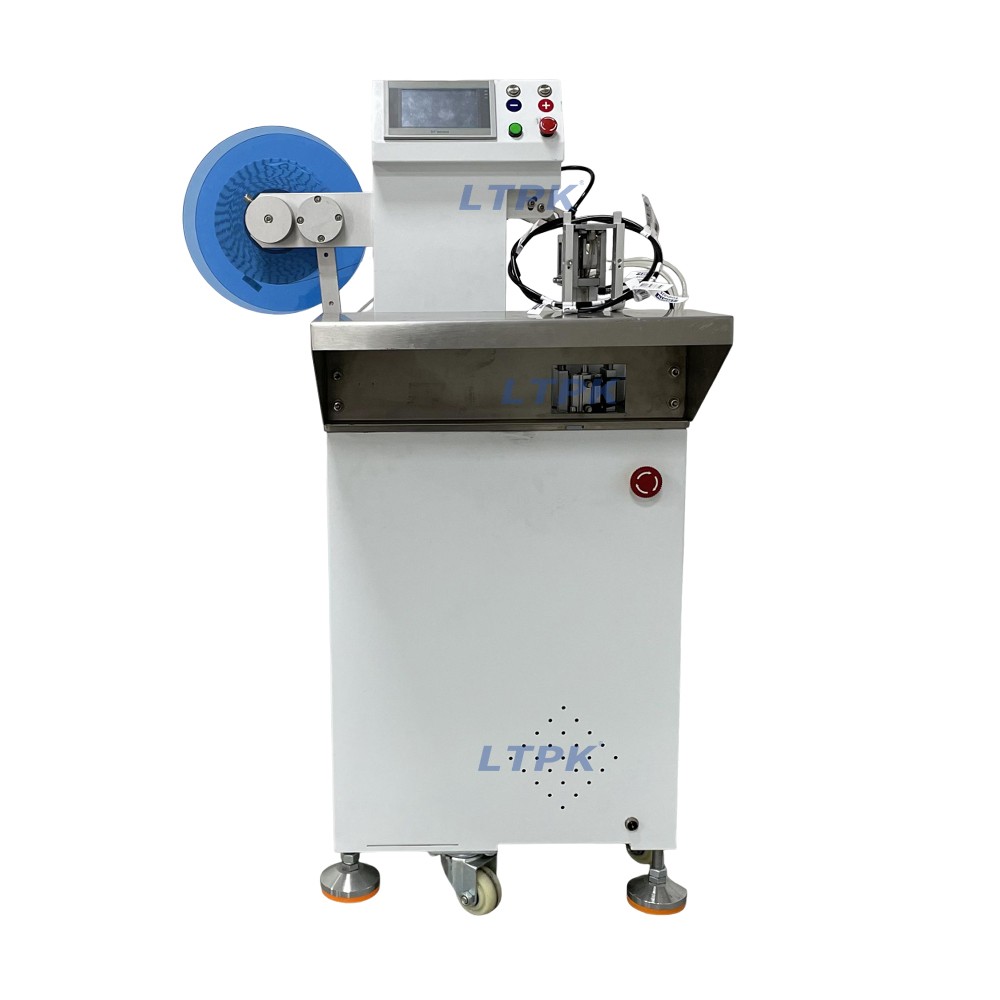

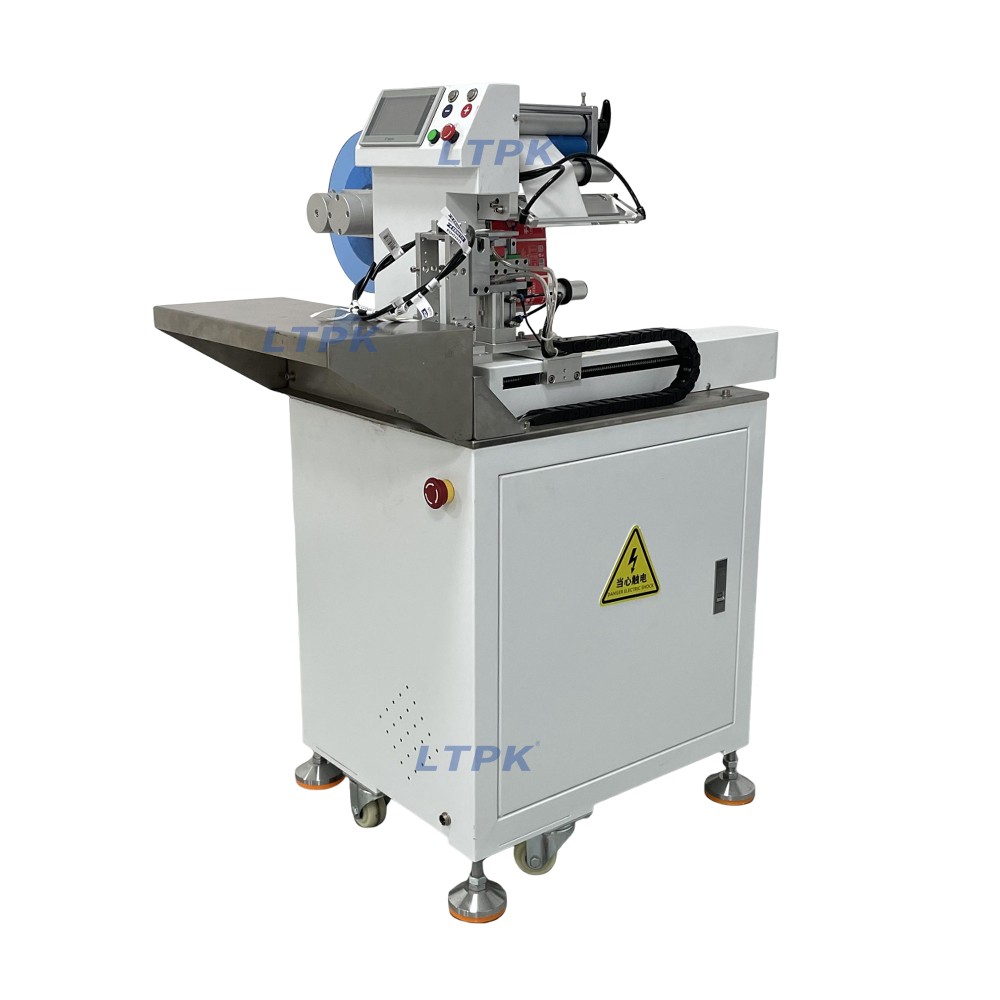

LT-T901 wire and tube flag labeling machine

The LT-T901 is designed specifically for folding labels around wires and tubular products. The label folds around the product to form a flag-style label. Product diameter is the main compatibility limit, so provide the actual wire or tube diameter before ordering.

How the folding mechanism works

A single label is held by suction on a flat platform that can be folded by an air cylinder.
The platform moves beneath the wire or tube.
The cylinder folds the platform upward, bringing the label around the product and pressing the two sides together to complete labeling.

Fixtures and product compatibility

Additional fixtures are generally not required for normal wire and tube applications. A change in diameter does not automatically mean a different fixture is needed, but the product must remain compatible with the machine configuration. Send samples if the diameter or product shape differs from the standard application.

Frequently asked questions

What is LT-T901 designed to label?

It is specifically designed for wires and tubular products using a folding label application.

Do I need a separate fixture for every wire size?

Generally, no. The main consideration is the diameter of the wire or tube. Confirm the intended size range with us before ordering.

How does the label fold around the product?

The machine holds the label by suction, moves it under the product and folds it upward with an air cylinder.

Can I use products outside the listed diameter range?

Send the actual diameter and samples for assessment. Compatibility outside the listed range must be confirmed; it is not a standard capability.

What information is needed for a quotation?

Send wire or tube diameter, photos or samples, label size and artwork, the desired label position and required output. Mention transparent labels or any printing requirement.

Listed technical specifications

Model	LT-T901
Product diameter	4–10 mm; other sizes require assessment
Listed labeling accuracy	±0.3 mm
Listed speed	20–25 pcs/min
Label size	Length 15–50 mm; width 10–170 mm
Voltage	220V
Machine weight	About 90 kg
Machine size	900 × 800 × 1300 mm

Specifications above are retained from the existing listing. Confirm the selected configuration and performance using your actual product and label samples.

Options, warranty and delivery

Transparent labels require an optional sensor at extra cost; tell us before ordering. If printing dates or batch codes is required, ask us to confirm coder compatibility and pricing. An air compressor is not included; customers provide their own. Confirm the required air supply in the quotation.

The standard equipment warranty is generally one year. Standard equipment usually has a lead time of 3–5 days; custom delivery is agreed after specifications are confirmed.

Request a quote: portiaxie@fillinglabeling.com | WhatsApp +86 15070838530.
