LT-T306 PLC-Controlled Flat Surface Labeling Machine

Advanced flat surface labeler with PLC control, HMI and stepper motor. Ordinary flat surfaces do not need special fixtures. Send samples for curved surfaces or special bottle shapes.

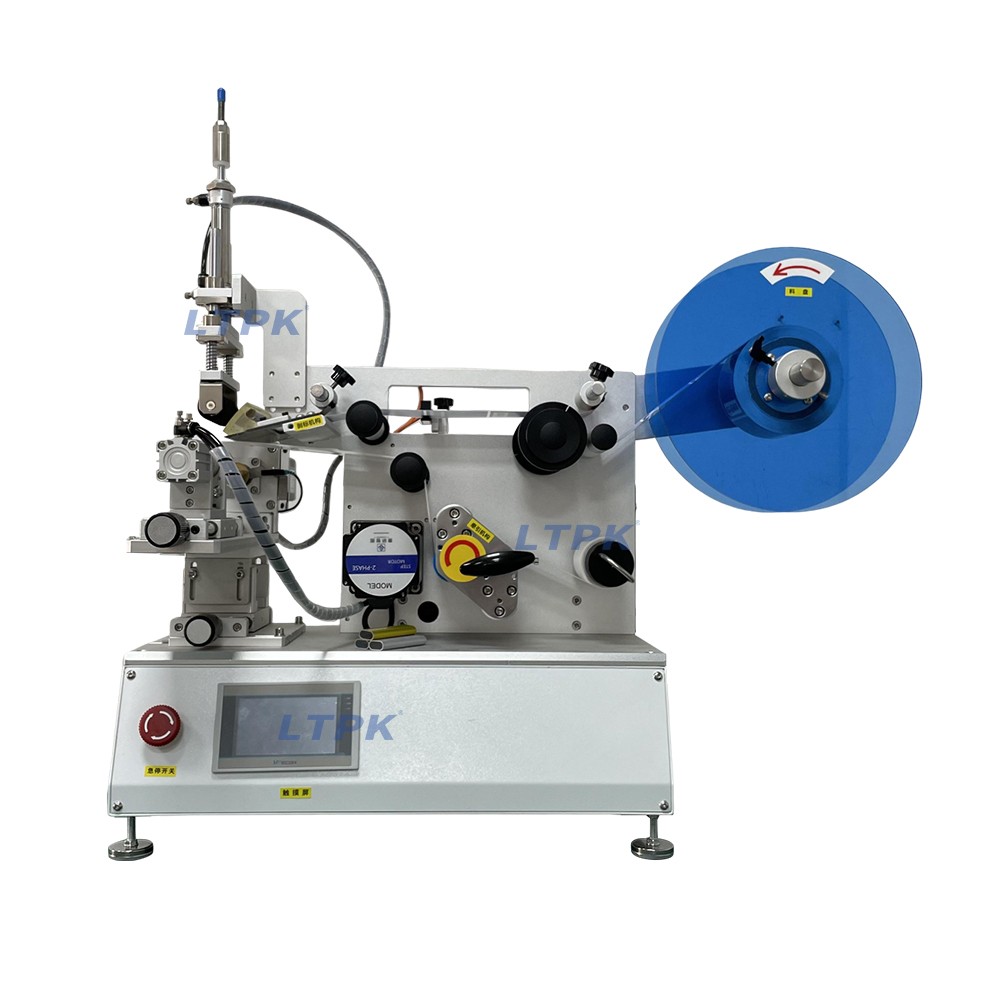

LT-T306 flat surface labeling machine

The LT-T306 is an advanced flat surface labeler equipped with a PLC, an HMI and a stepper motor. For buyers comparing control systems, it offers a more advanced configuration than the LT-80 concept, while its intended labeling application is flat surfaces.

Flat surfaces and special-shaped products

Ordinary flat surfaces do not require a special fixture. Curved surfaces and unusual bottle shapes need individual assessment: send photographs, dimensions, a label-position drawing and samples so we can confirm feasibility and any fixture requirements.

Select the machine according to the surface being labeled. Do not assume a flat labeling application and a round-bottle application need the same mechanism.

Frequently asked questions

What controls does LT-T306 use?

It is equipped with PLC control, an HMI and a stepper motor.

Do all products require a custom fixture?

No. Ordinary flat surfaces do not require special fixtures. Curved or special-shaped products must be assessed separately.

Is this the same as an LT-80 round bottle labeler?

No. It is a more advanced machine in terms of controls, but LT-T306 is a flat surface labeler. Choose according to your product surface and label position.

Can it print dates on the label?

Ask us to confirm coder compatibility for your configuration before ordering. Do not assume a coder is included.

What should I send for a quotation?

Send product dimensions and photos, label dimensions and material, the intended label position, target output, and details of any curved surface.

Listed technical specifications

Model	LT-T306
Voltage	220V
Listed labeling accuracy	±0.5 mm
Listed labeling speed	15–25 pcs/min
Product size	Length 50–250 mm; width 30–120 mm; height 30–120 mm
Label size	Length 15–300 mm; width 15–170 mm
Machine weight	About 60 kg
Machine dimensions	950 × 650 × 800 mm

Confirm achievable accuracy, output and product compatibility using the actual product and labels.

Options and ordering

Please send product photos and dimensions, label artwork and size, the required label position and target output. Transparent labels require an optional sensor at extra cost; tell us before ordering. If date or batch printing is required, ask us to confirm coder compatibility and quote any additional equipment separately. Air compressors are not included; customers provide their own where compressed air is required.

Warranty and lead time

The standard equipment warranty is generally one year. Standard equipment usually has a lead time of 3–5 days. Custom equipment delivery is agreed after the specifications are confirmed.

Request a quotation: portiaxie@fillinglabeling.com | WhatsApp +86 15070838530.
