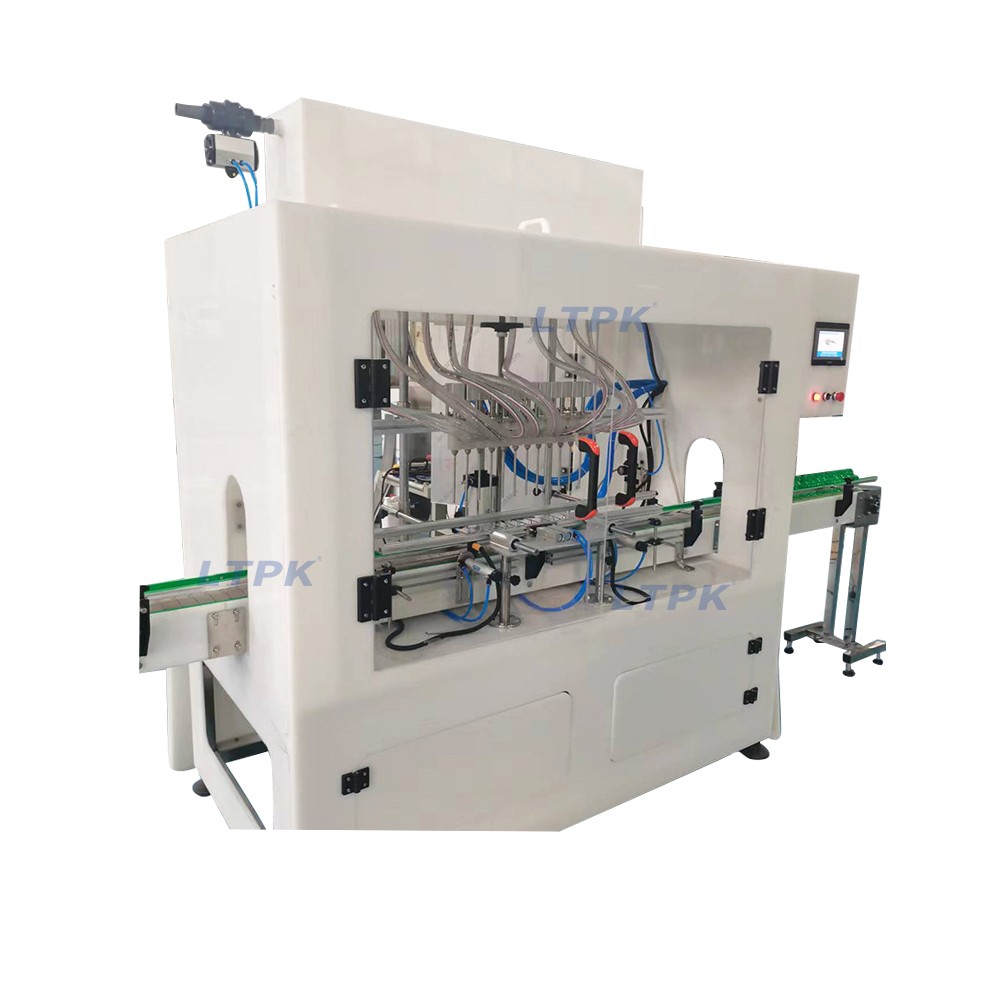

Automatic 10 Heads Bleach HCl Acid Chemical Anti-corrosion Toilet Cleaner Corrosive Liquid Plastic Bottle Jar Filling Machine

Suitable for Pesticides, herbicides, insecticides, fungicides, seed coating agents, insecticides, foliar fertilizers, liquid fertilizers, 84 disinfectant, toilet cleaner, iodine, hydrochloric acid, sulfuric acid and other corrosive liquids.

EMAIL

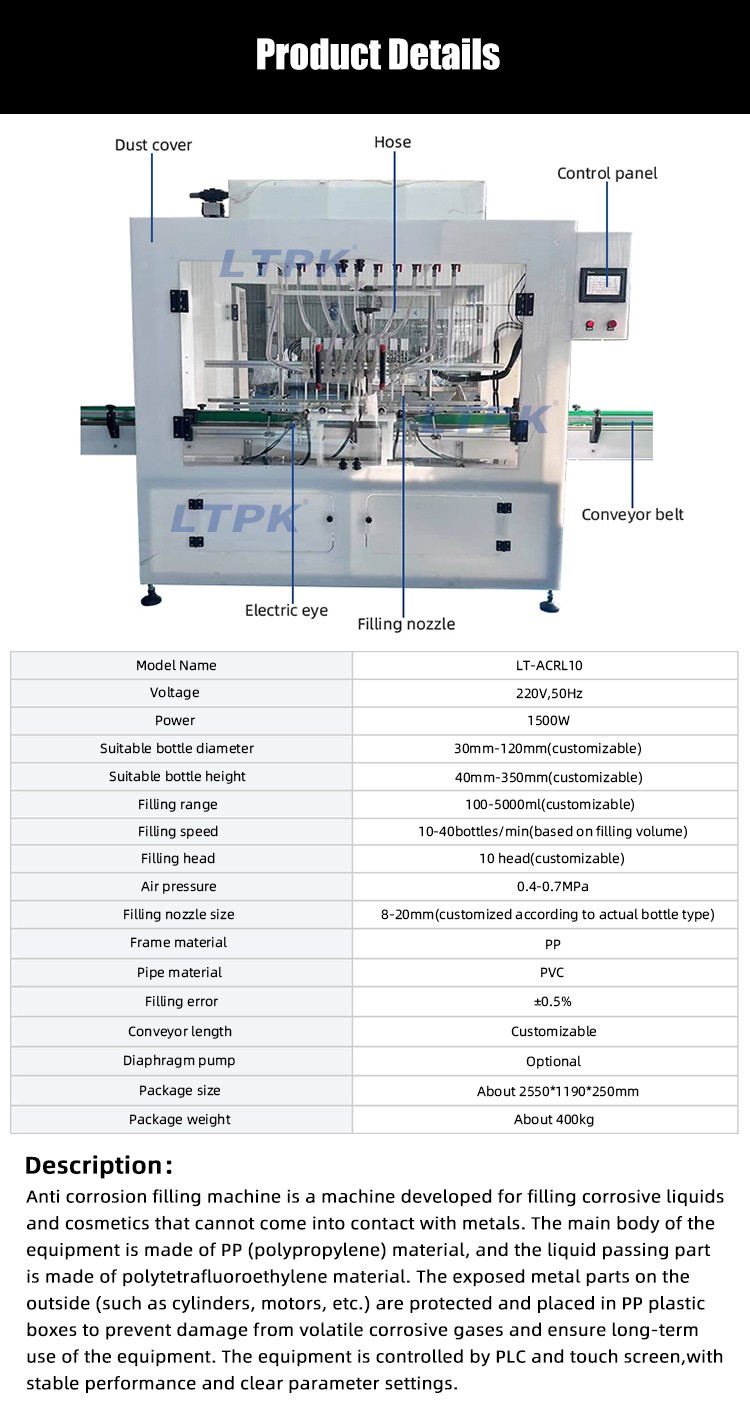

Description

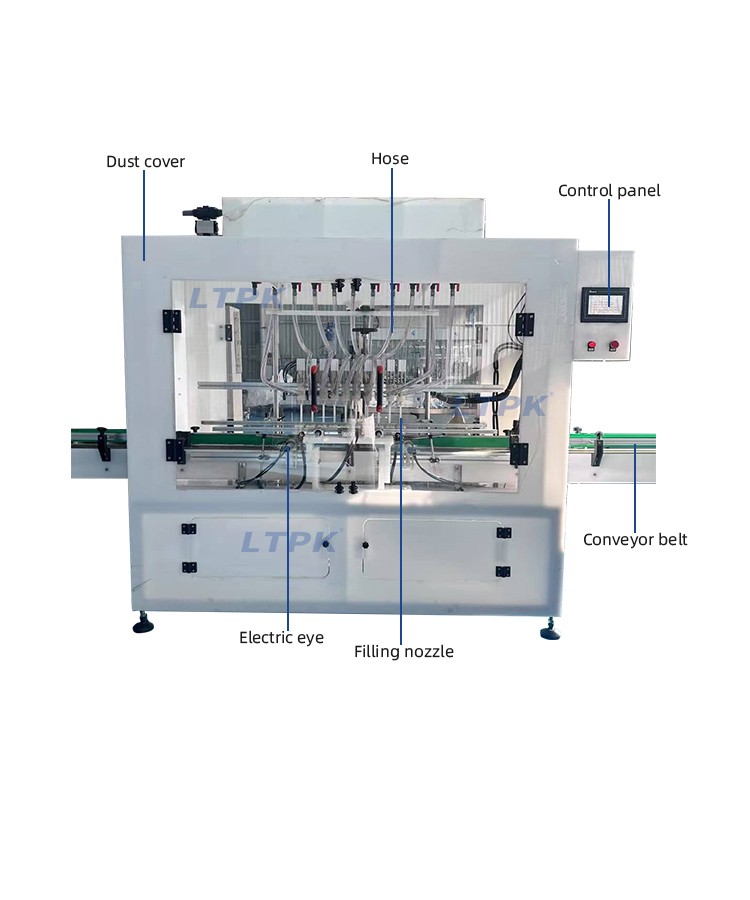

Anti corrosion filling machine is a machine developed for filling corrosive liquids and cosmetics that cannot come into contact with metals.

The main body of the equipment is made of PP (polypropylene) material, and the liquid passing part is made of polytetrafluoroethylene material.

The exposed metal parts on the outside (such as cylinders, motors, etc.) are protected and placed in PP plastic boxes to prevent damage from volatile corrosive gases and ensure long-term use of the equipment.

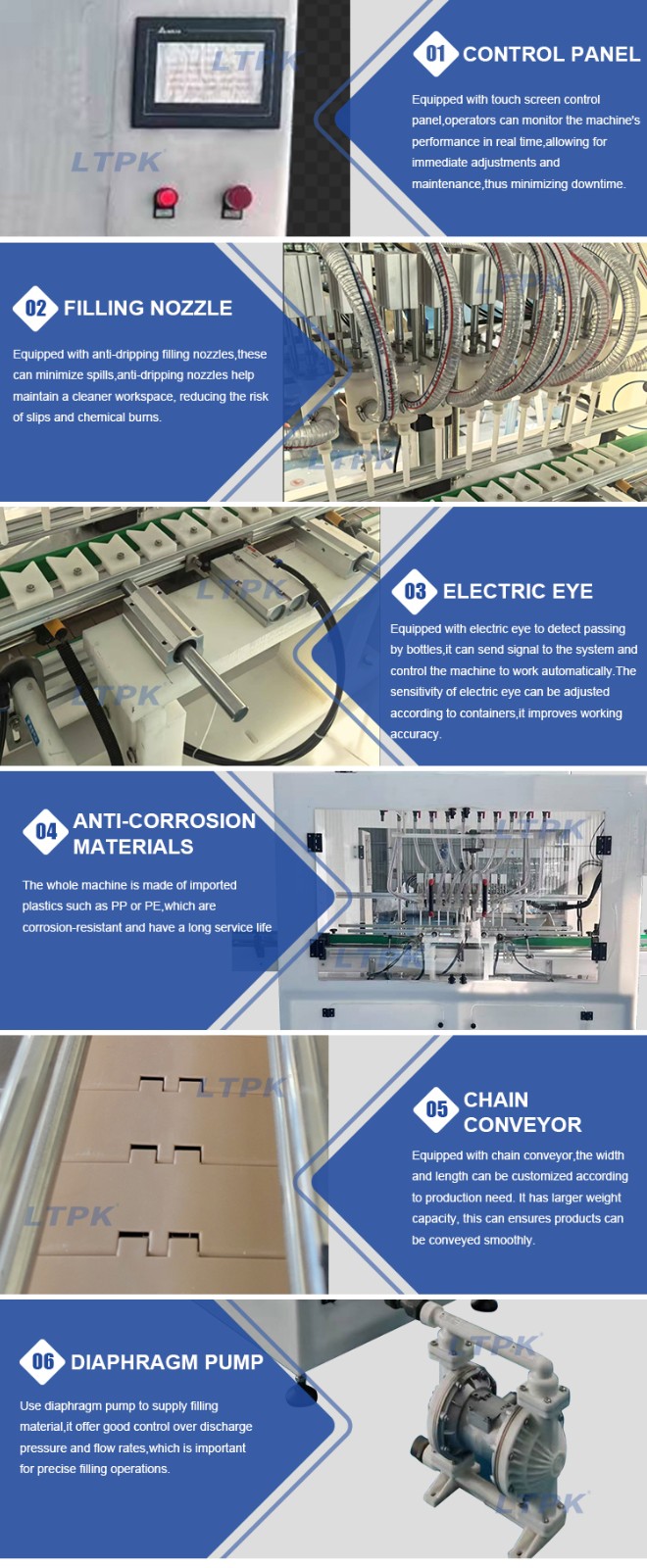

 The equipment is controlled by PLC and touch screen,with stable performance and clear parameter settings.



Application:
Suitable for Pesticides, herbicides, insecticides, fungicides, seed coating agents, insecticides, foliar fertilizers, liquid fertilizers, 84 disinfectant, toilet cleaner, iodine, hydrochloric acid, sulfuric acid and other corrosive liquids.



Technical parameters

Model

LT-ACRL10

Voltage

220V,50Hz

Power

1500W

Suitable bottle diameter

30mm-120mm(customizable)

Suitable bottle height

40mm-350mm(customizable)

Filling range

100-5000ml(customizable)

Filling speed

10-40bottles/min(based on filling volume)

Filling head

10 head(customizable)

Air pressure

0.4-0.7MPa

Filling nozzle size

8-20mm(customized according to actual bottle type)

Frame material

PP

Pipe material

PVC

Filling error

±0.5%

Conveyor length

customizable

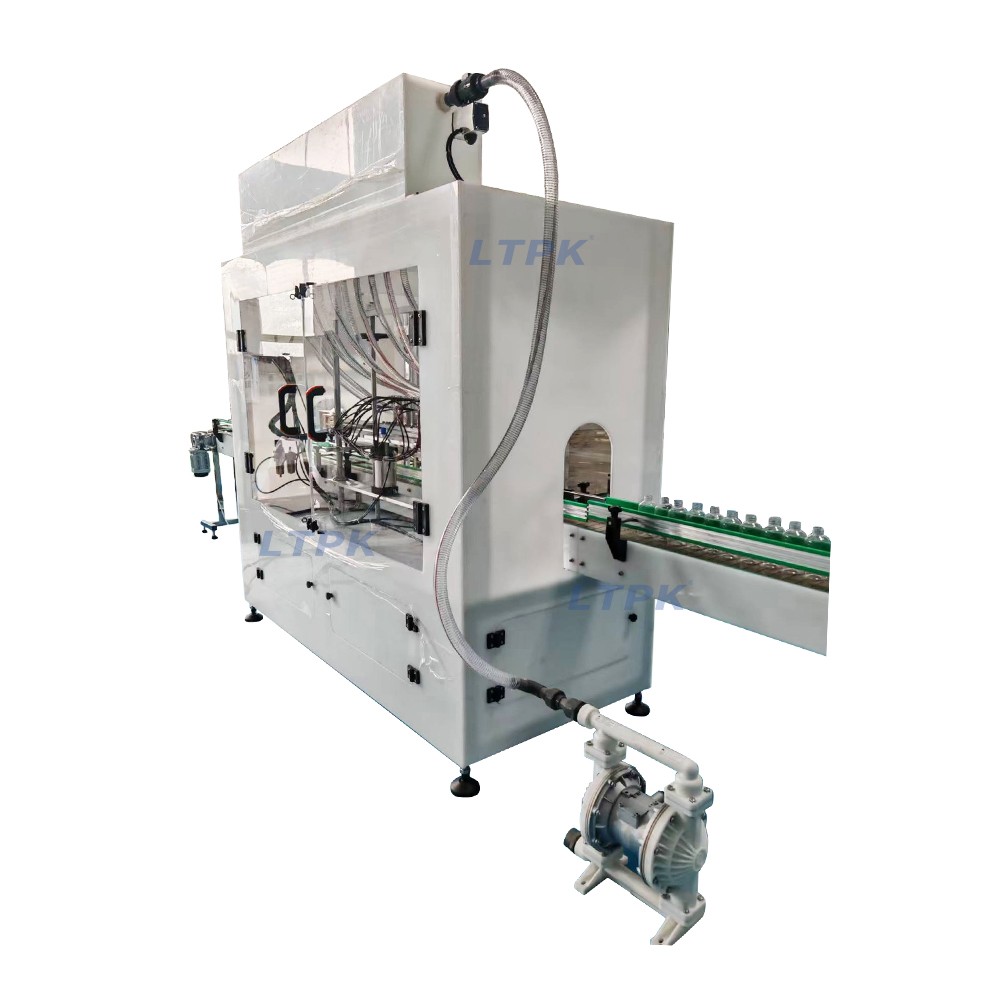

Diaphragm pump

Optional

Package size

About 2550*1190*250mm

Package weight

About 400kg
