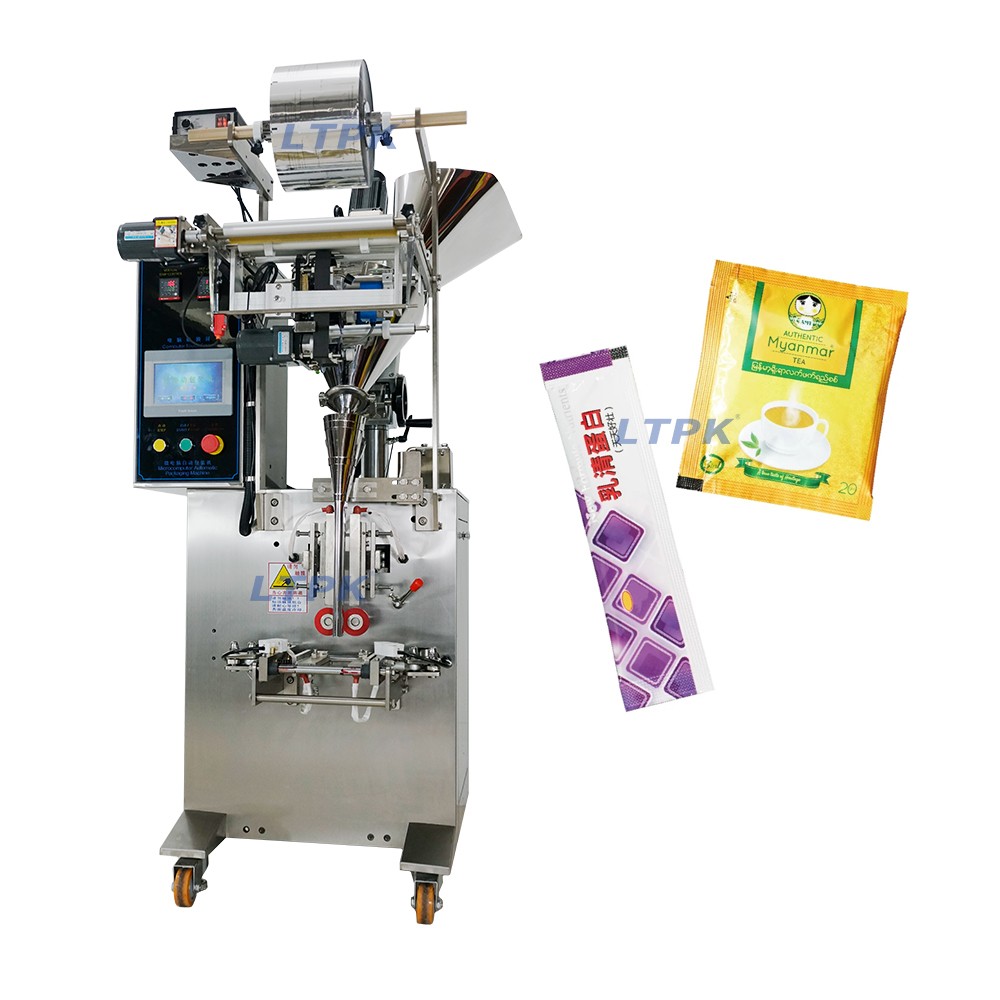

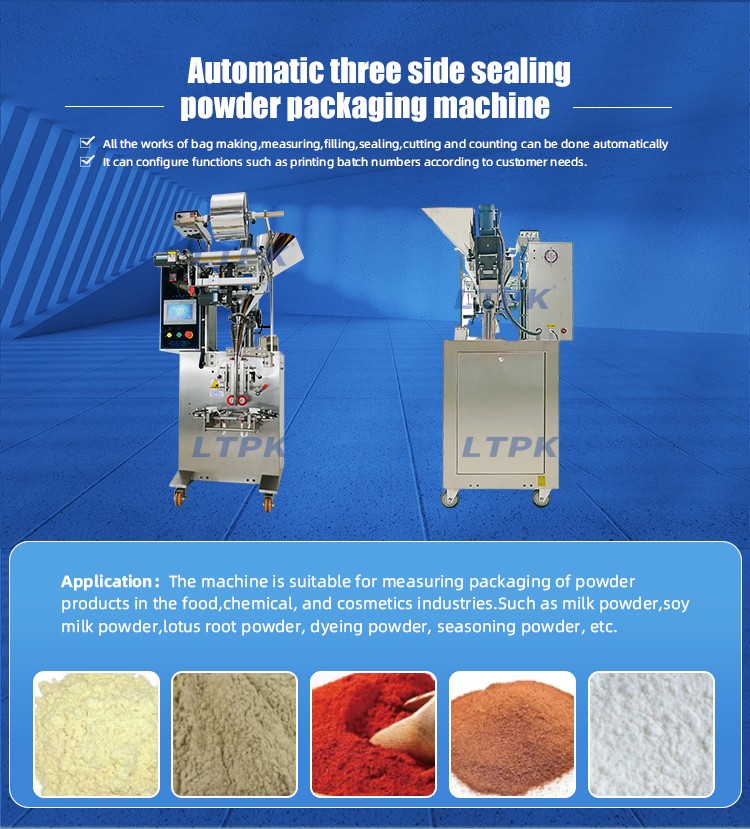

LT-YS61AF Vertical Powder Sachet Packing Machine

Description：

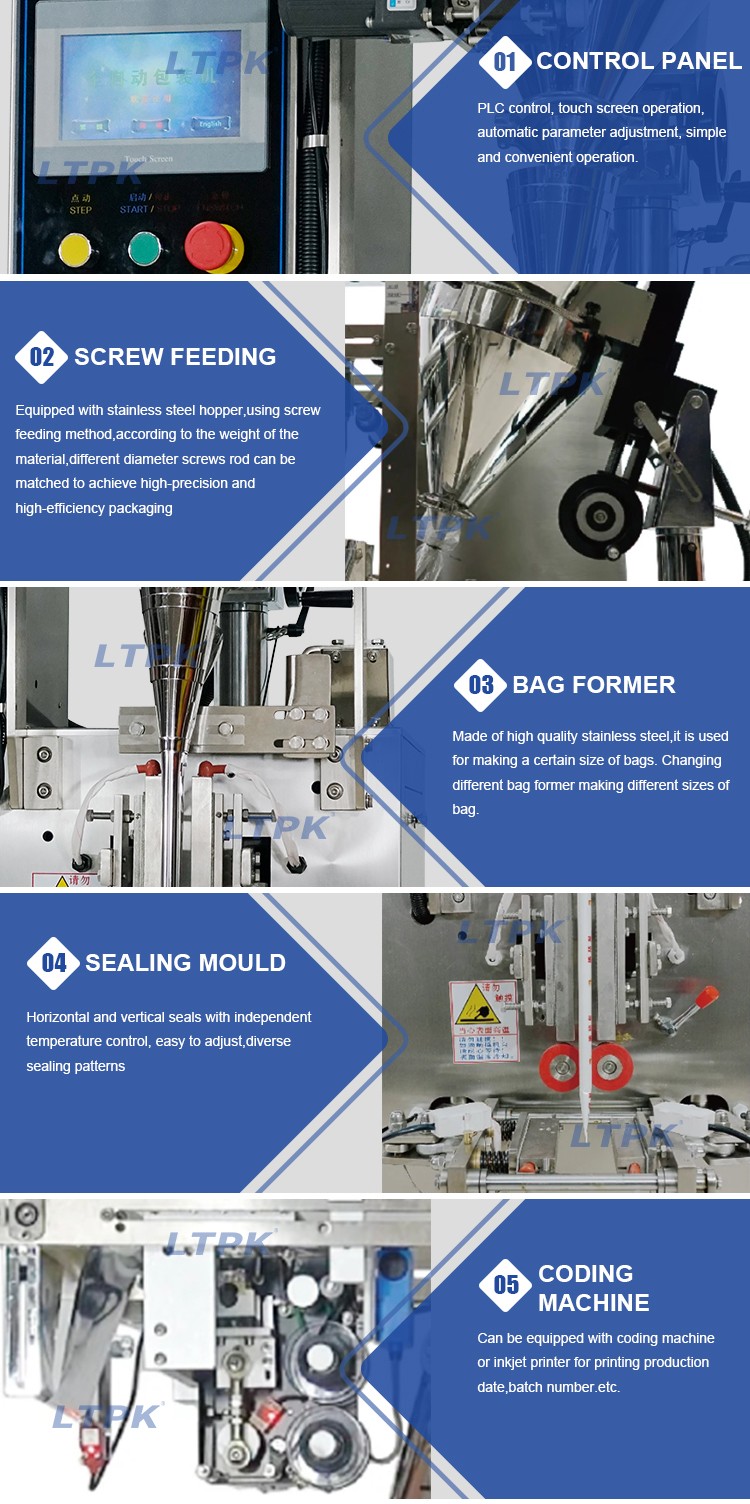

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,

easy to adjust and accurate detection.Choose the intelligent temperature controller and PID

control to ensure the error range of temperature controlled within 1 degree Centigrade.

Application:

The machine is suitable for measuring packaging of powder products in the food,chemical, and cosmetics industries.

Such as milk powder,soy milk powder,lotus root powder, dyeing powder, seasoning powder, etc.

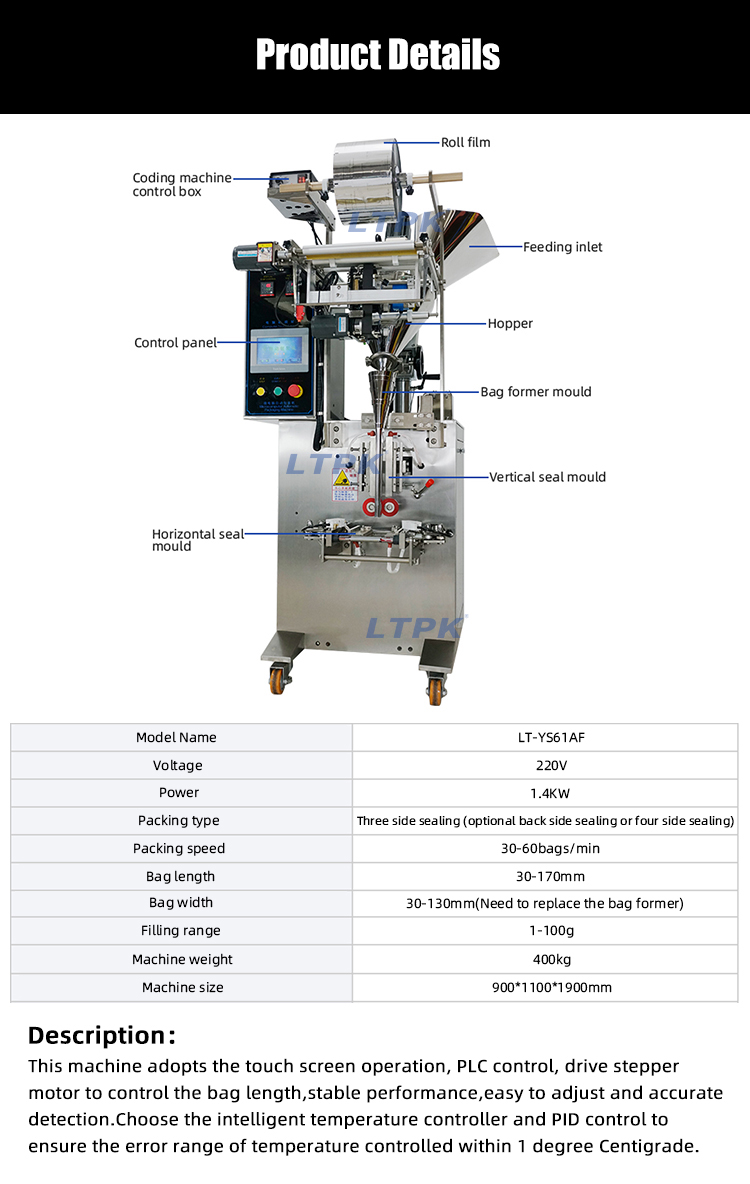

Technical parameters：

Model    LT-YS61AF

Voltage     220V

Power     1.4KW

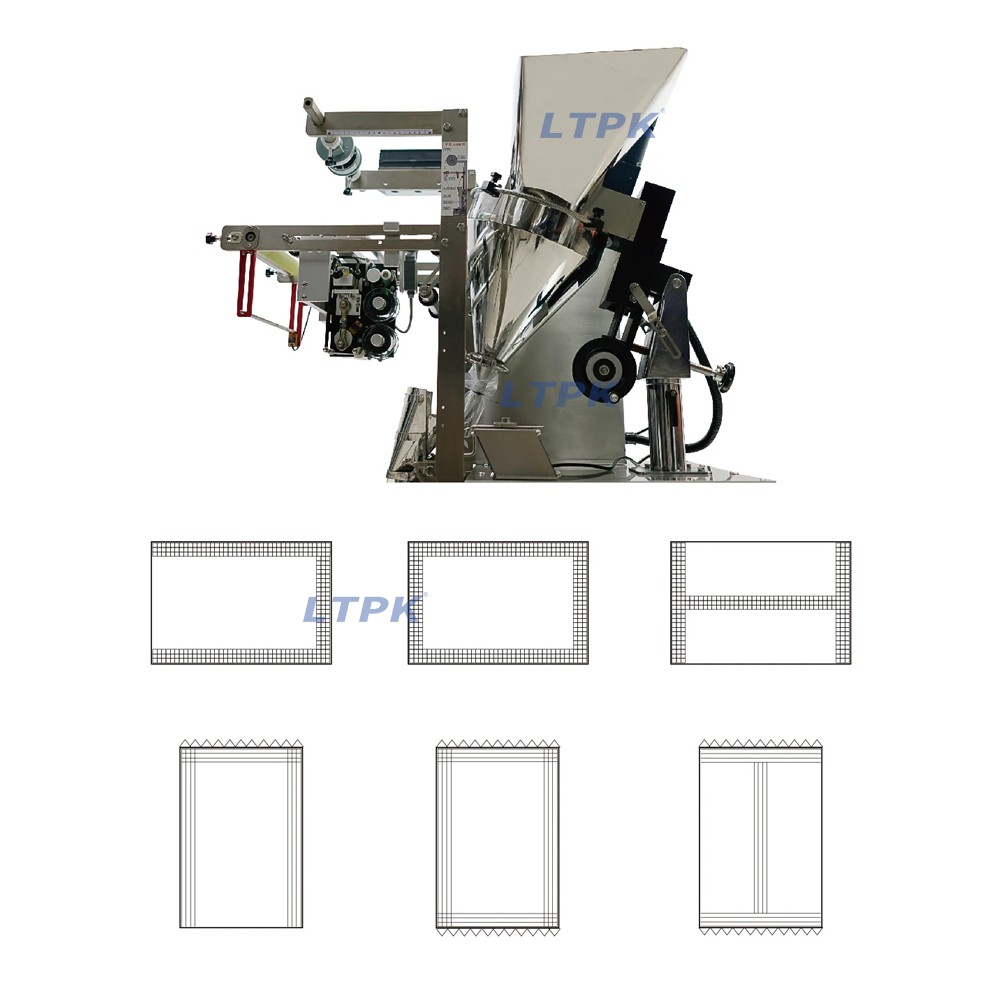

Packing type    Three side sealing (optional back side sealing or four side sealing)

Packing speed    30-60bags/min

Bag length    30-170mm

Bag width    30-130mm(Need to replace the bag former

Filling range    1-100g

Machine weight    400kg

Machine size    900 *1100*1900 mm

Ordering Information

Please provide the material to be packed, target weight or volume, bag dimensions, packaging film and required output. Confirm the dosing and sealing configuration.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.
