LT-260Z Food Tray Sealing and Gas Flushing Machine

Introduction:

The basic principle of the modified atmosphere fresh-keeping packaging machine is to use high barrier materials (plastic tray and cover film) to isolate the food from the outside air.

The tray is filled with mixed gas to keep the original flavor and appearance of the packaged food for a long time. And to the greatest extent inhibit the growth of various bacteria and microorganisms.

The equipment uses a fully enclosed vacuum replacement method to inflate and preserve the food. That is, in the fully enclosed state of the vacuum chamber,

a high-oxygen vacuum pump is used to make a high vacuum in the vacuum chamber, and then filled with gas suitable for the extended preservation of food.

Application：

It is suitable for vacuum and sealing packaging of various foods, meat products, seafood, fruits and vegetables, Pickled vegetables, chilled meat, pharmaceutical products, hardware components, medical devices, etc.

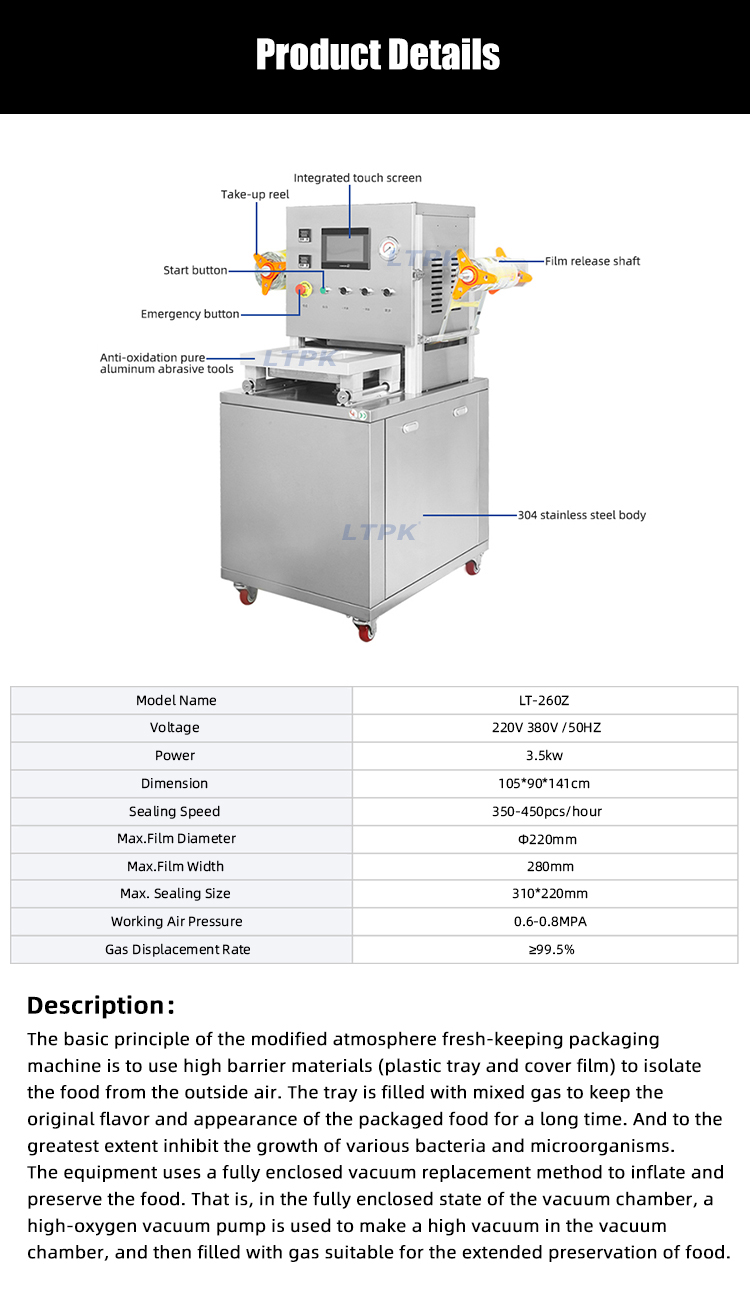

Technical Parameters

Model:                                LT-260Z

Voltage:　　　　　　     220V/380V 50hz

Power:                                3.5kw

Dimension:                       105*90*141cm

Sealing Speed:                  350-450pcs/hour

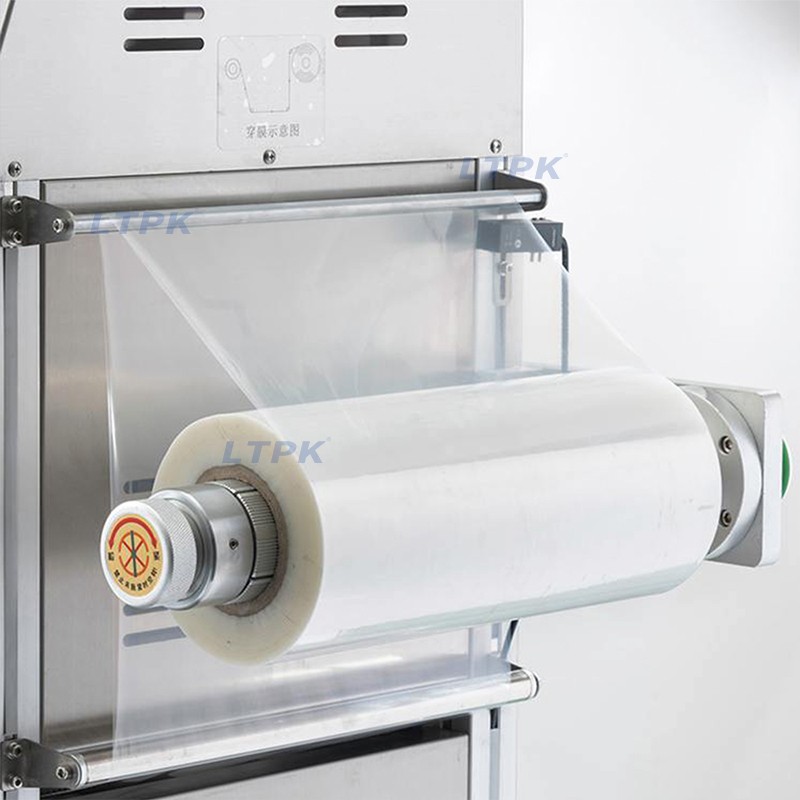

Max. Film Diameter:          220mm

Max. Film Width:               280mm

Max. Sealing Size:              310*220mm

Working Air Pressure:         0.6-0.8MPA

Ordering Information

Please provide product and container dimensions, packaging materials and required output. Confirm the equipment configuration and any production-line connections.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.
