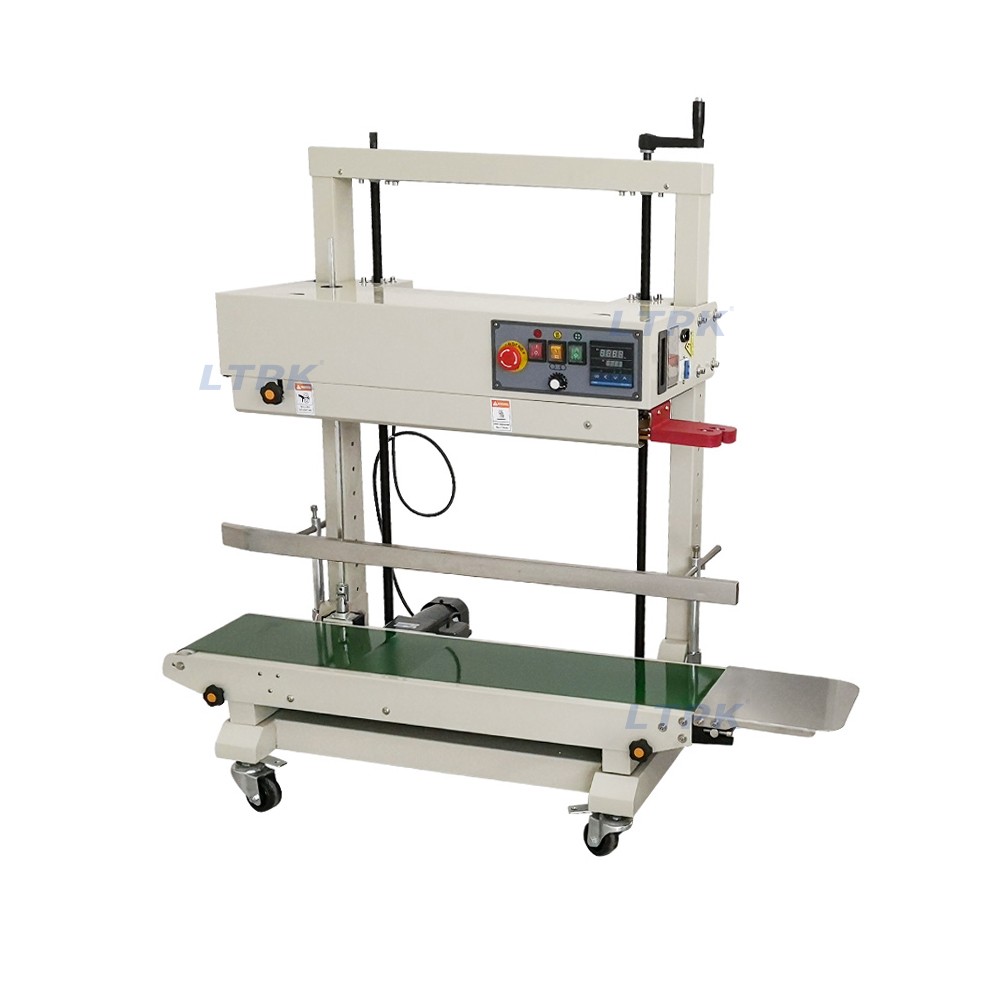

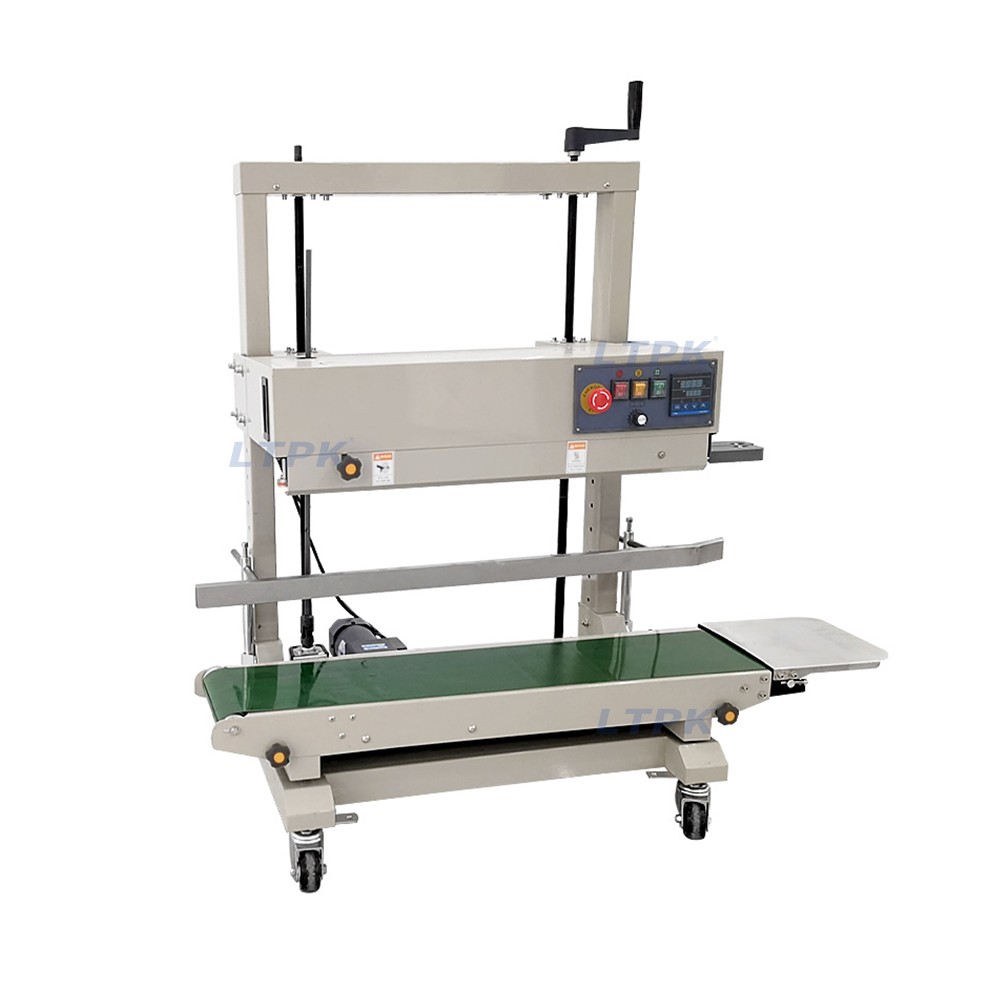

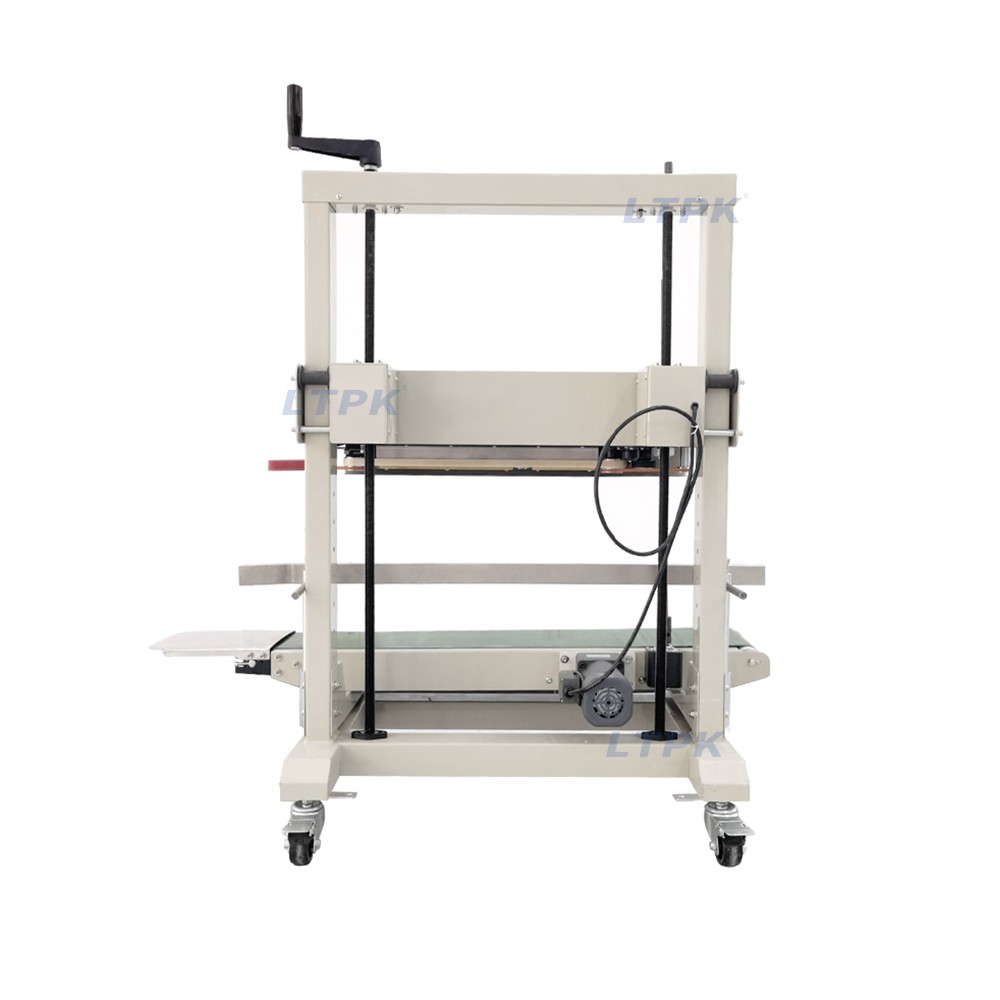

FR-1100 Vertical Heavy-Duty Continuous Band Sealer

This semi automatic sealing machine is with a bracket,which makes it can adjust the working height and work for larger bags.This machine adopts a vertical sealing structure, which is suitable for larger items.

EMAIL

Description:

This semi automatic sealing machine is with a bracket,which makes it can adjust the working height and work for larger bags.

This machine adopts a vertical sealing structure, which is suitable for larger items. When the height of the packaging changes,the operator

only needs to easily shake the handle to achieve an accurate sealing height.The conveyor will help to transport finished products,save labor and time.



Application:

This machine is suitable for sealing various types of heat sealed packaging bags such as aluminum foil bags, plastic bags, composite bags, kraft paper,

fresh-keeping bags, tea bags, shrink films, etc. The sealing is firm, efficient, and widely used in industries such as food, chemical, agriculture, and lubricants

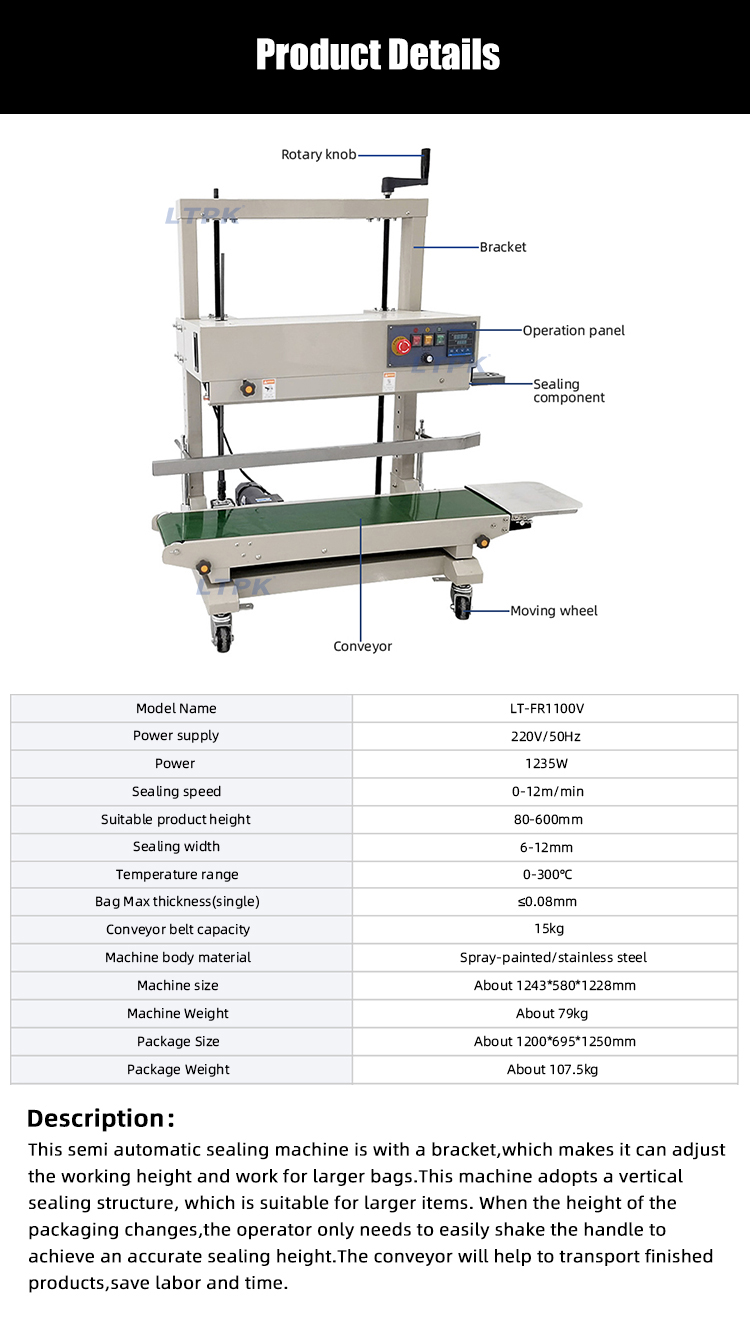

Model

LT-FR1100V

Power supply

220V/50Hz

Power

1235W

Sealing speed

0-12m/min

Suitable product height

80-600mm

Sealing width

6-12mm

Temperature range

0-300℃

Bag Max thickness(single)

≤0.08mm

Conveyor belt capacity

15kg

Machine body material

Spray-painted/stainless steel

Machine size

About 1243*580*1228mm

Machine Weight

About 79kg

Package Size

About 1200*695*1250mm

Package Weight

About 107.5kg


Ordering Information

Please provide product and container dimensions, packaging materials and required output. Confirm the equipment configuration and any production-line connections.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.
