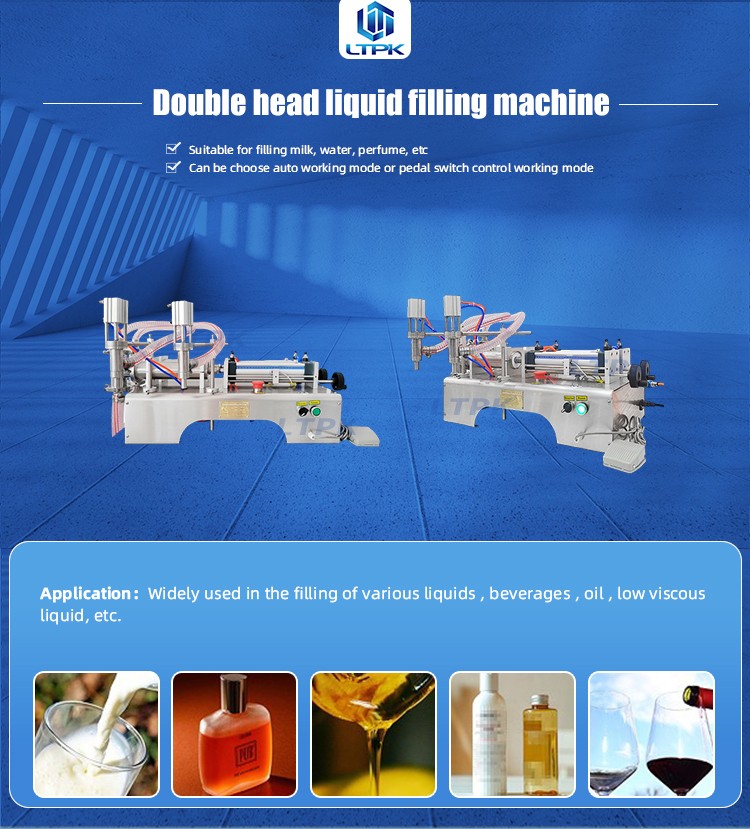

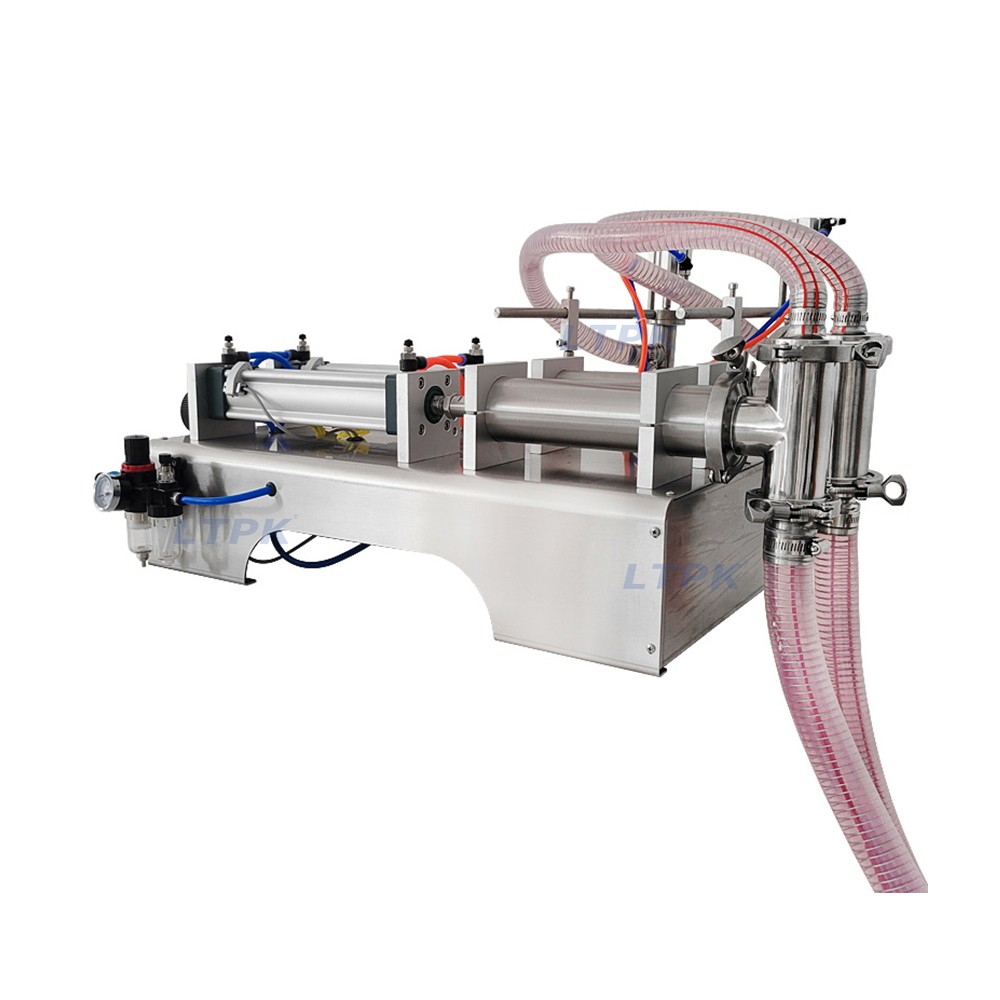

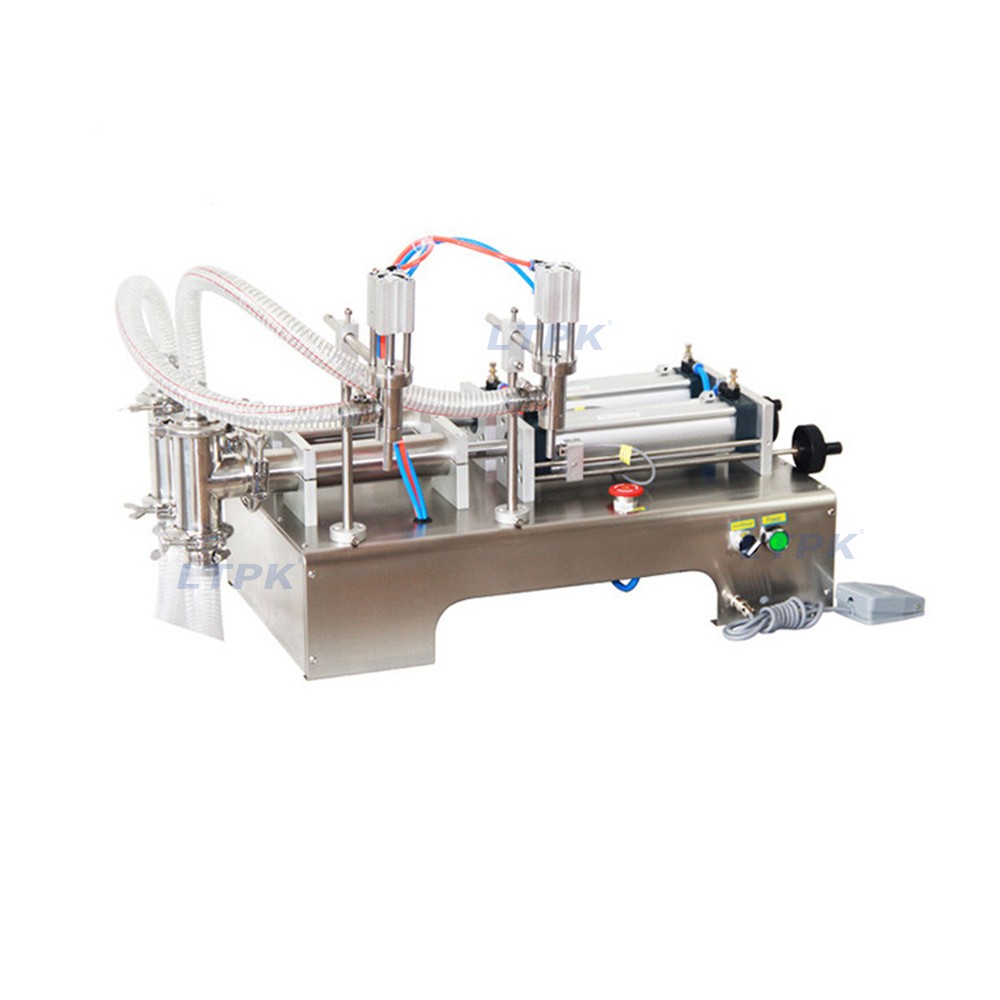

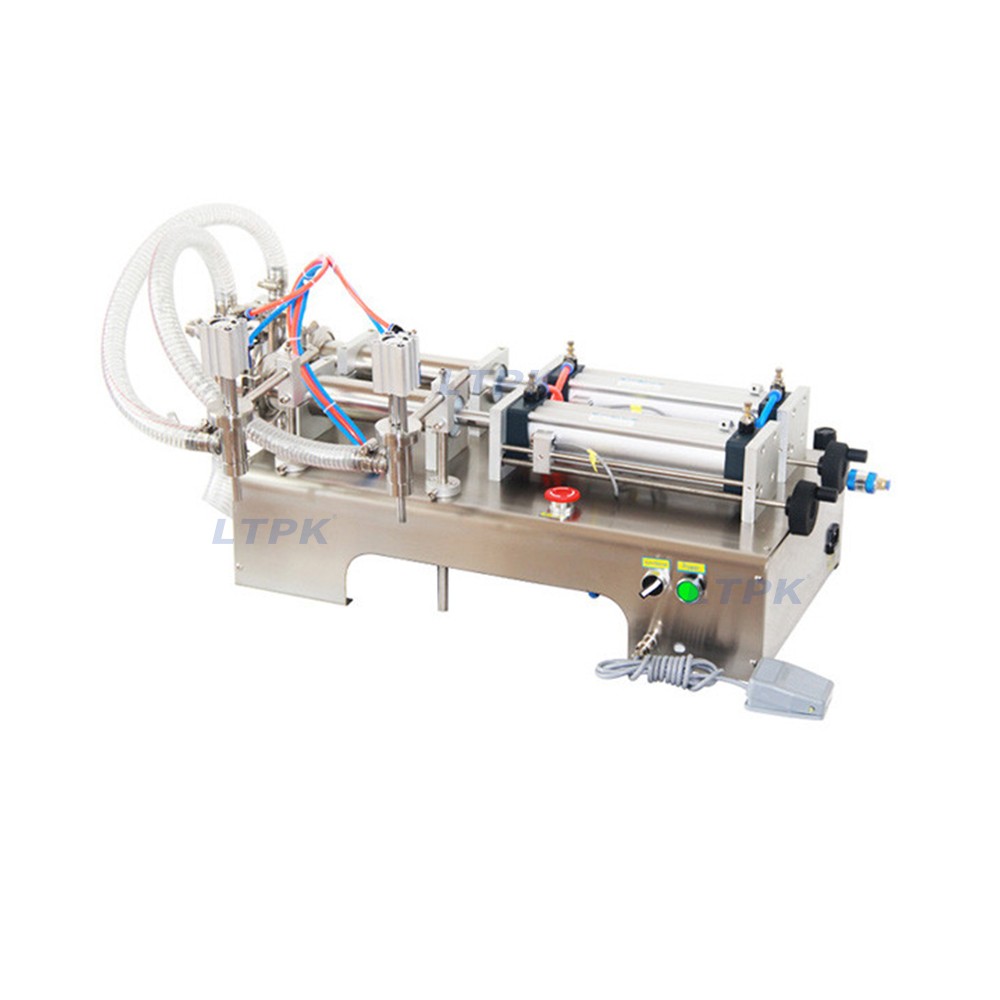

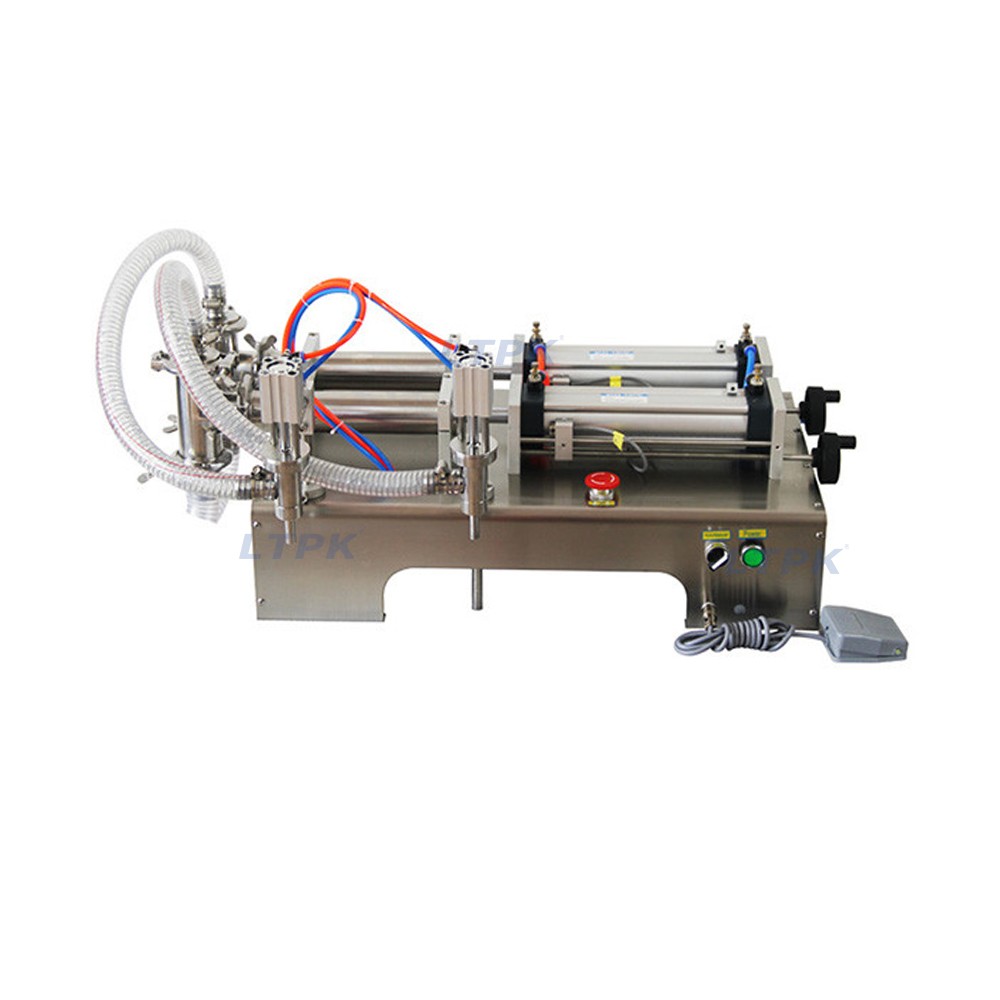

G2WY Double-Head Liquid Filling Machine

Piston pump filling machine works with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries.

Piston pump filling machine works with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.

The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.

It is widely used in beverage,cosmetics and daily chemical industries.

Application：

Widely used in the filling of various liquids , beverages , oil , low viscous liquid, etc.

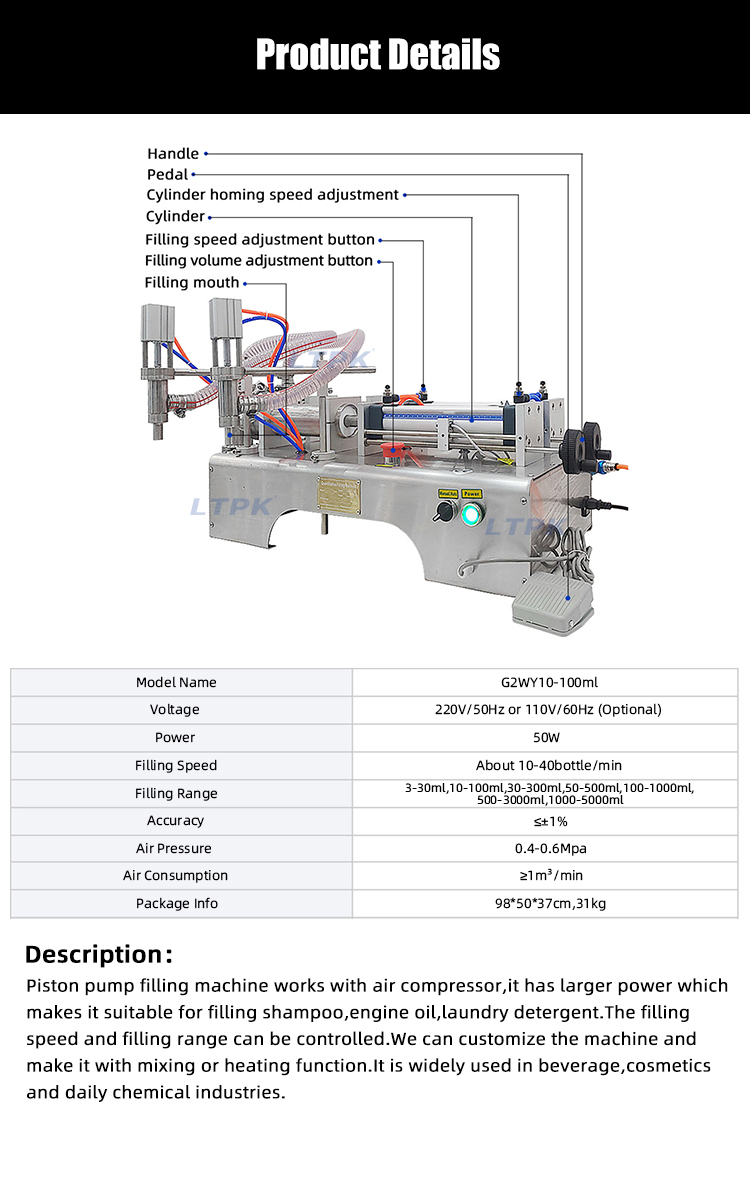

Model	G2WY10-100ml
Voltage	220V/50Hz or 110V/60Hz (Optional)
Power	50W
Filling Speed	About 10-40bottle/min
Filling Range	3-30ml,10-100ml,30-300ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml
Accuracy	≤±1%
Air Pressure	0.4-0.6Mpa
Air Consumption	≥1m³/min
Package Info	985037cm,31kg

Ordering Information

Please provide the material, viscosity or powder flow properties, required dose, container dimensions and target output. Confirm the appropriate configuration for your product.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.
