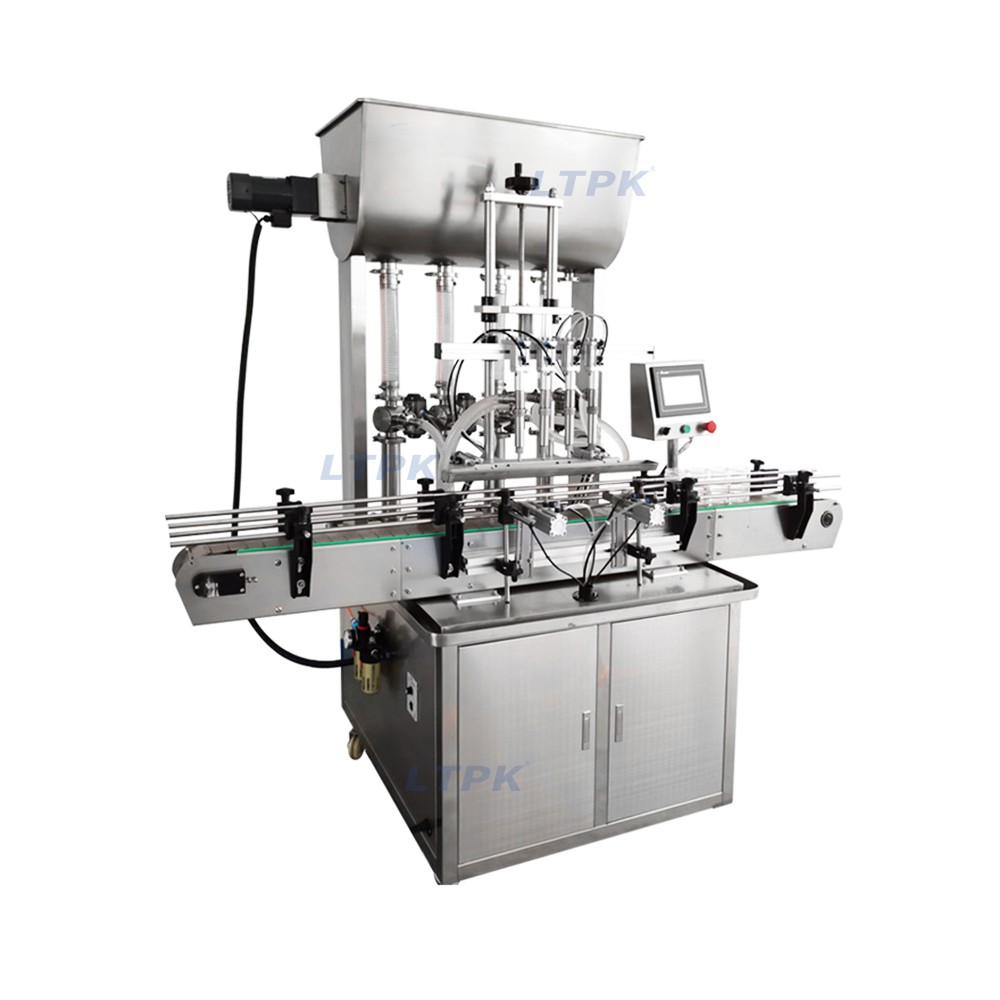

LT-QZDG4M Automatic Four-Head Piston Paste Filling Machine

LT-QZDG4M Automatic Four-Head Piston Paste Filling Machine

LT-QZDG4M is a four-head piston filling machine for suitable paste products. It can be used independently or connected to a production line. The exact configuration should be selected for the customer’s material, bottle size and filling requirements.

Standalone or Production-Line Operation

The machine can work on its own or integrate with upstream and downstream equipment. For line connection, conveyor heights must be aligned so containers can transfer between machines.

Optional Mixer

A mixer is optional. Whether it is required depends on the customer’s material; discuss product properties when requesting a quote. Photos show example configurations, and included options should be confirmed for each order.

Filling Range Selected for Your Bottle

The filling range is not a fixed 100–1000 ml specification. It is selected according to the customer’s bottle size and required dose. Provide bottle dimensions and target volume for confirmation.

Frequently Asked Questions

Can LT-QZDG4M connect to a production line?

Yes. Align the conveyor height with the connected equipment to support container transfer.

Does the machine include a mixer?

The mixer is optional and is chosen according to the material.

Is the filling range fixed?

No. The suitable range is determined according to the customer’s bottle size and target dose.

Ordering Information

Please provide material details, viscosity, bottle dimensions, required dose and target output. Confirm the conveyor height and selected options when requesting a line connection.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing specifications.
