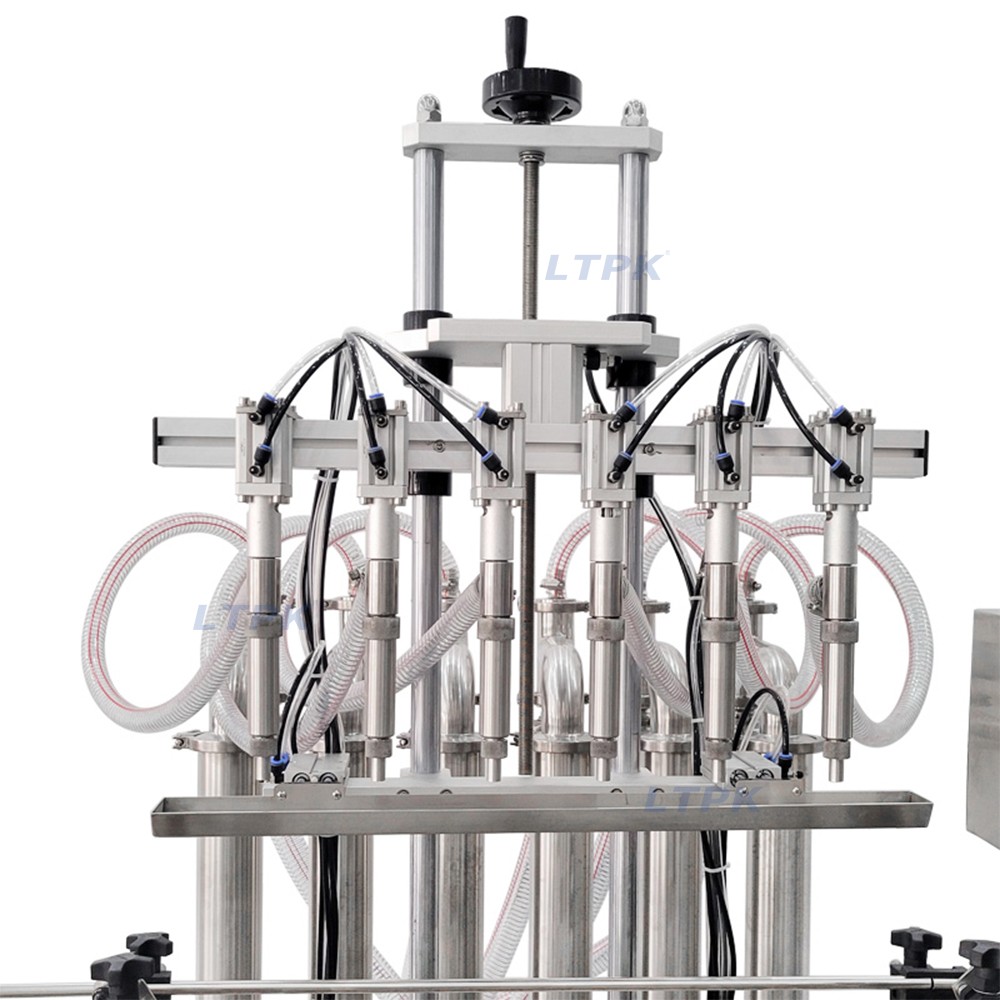

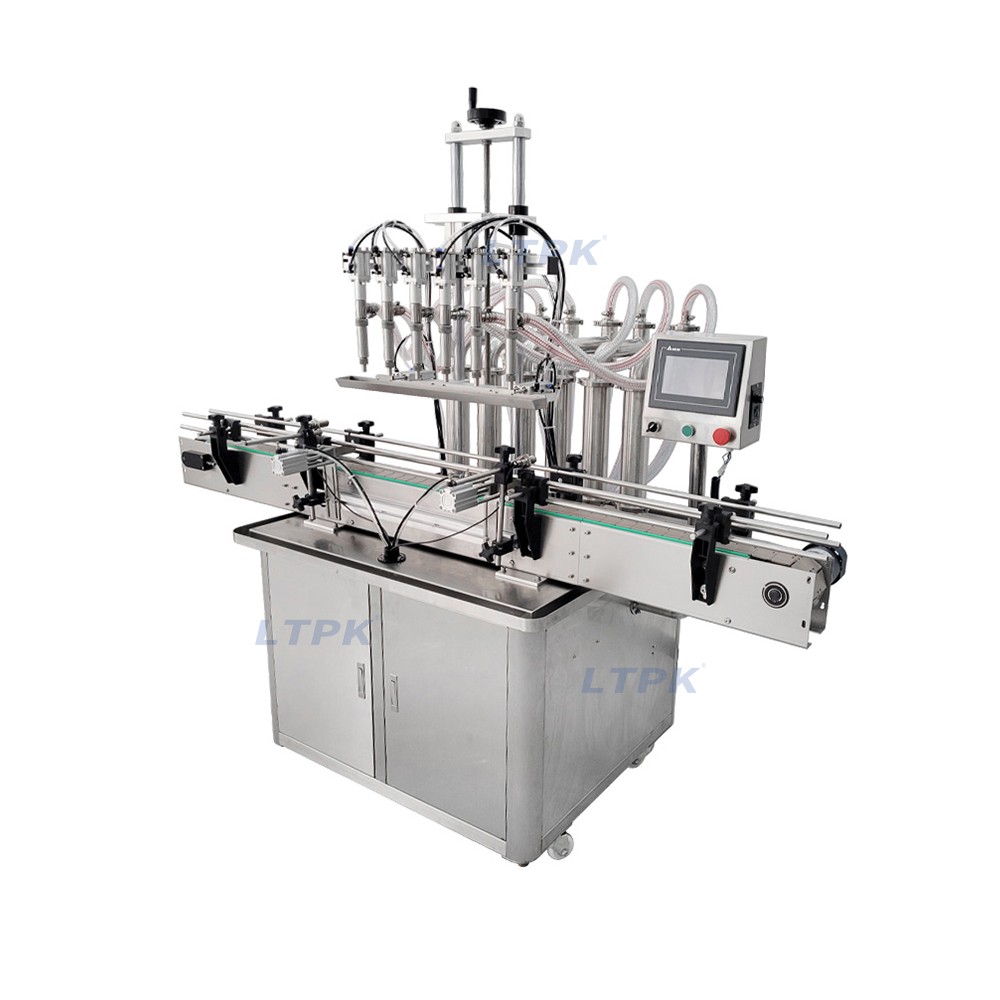

LT-QZDY6 Six-Head Automatic Liquid Filling Machine | No Hopper

Six-head automatic liquid filling machine with no hopper. QZD drive options are selected for the order.

Description:

LT-QZDY2/4/6/8 automatic liquid filling machine is a machine produced by our company. It has compact design, beautiful appearance, wide application field,

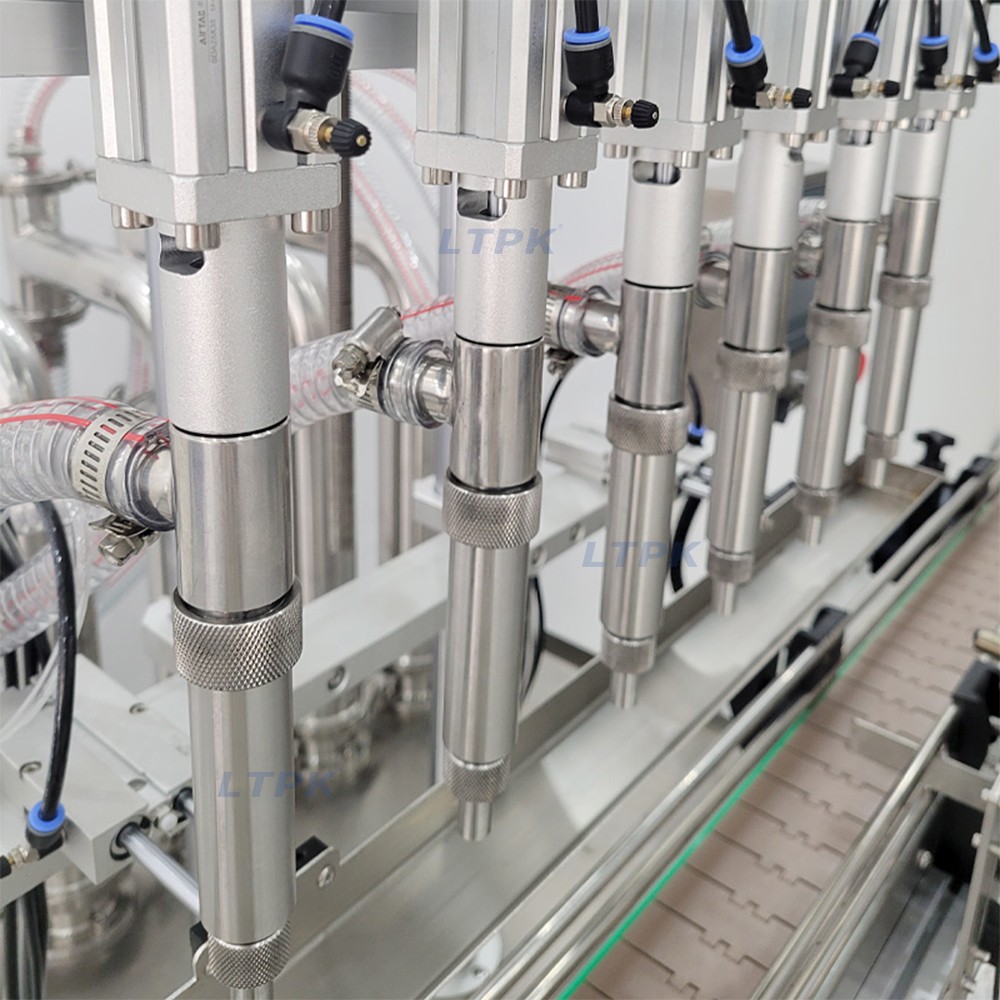

and it worked with imported parts, so that the the machine has a good performance. Piston-type linear filling with high precision filling, easy installation and commissioning,

cleaning and maintenance is simple, no dripping and so on.Each nozzles can be controlled separately. It is widely used in food, beverage industries.

Application:

Can be used for various liquids,such as Beverages,vinegar,soy sauce,oil,juice,essential oil,liquid products, etc

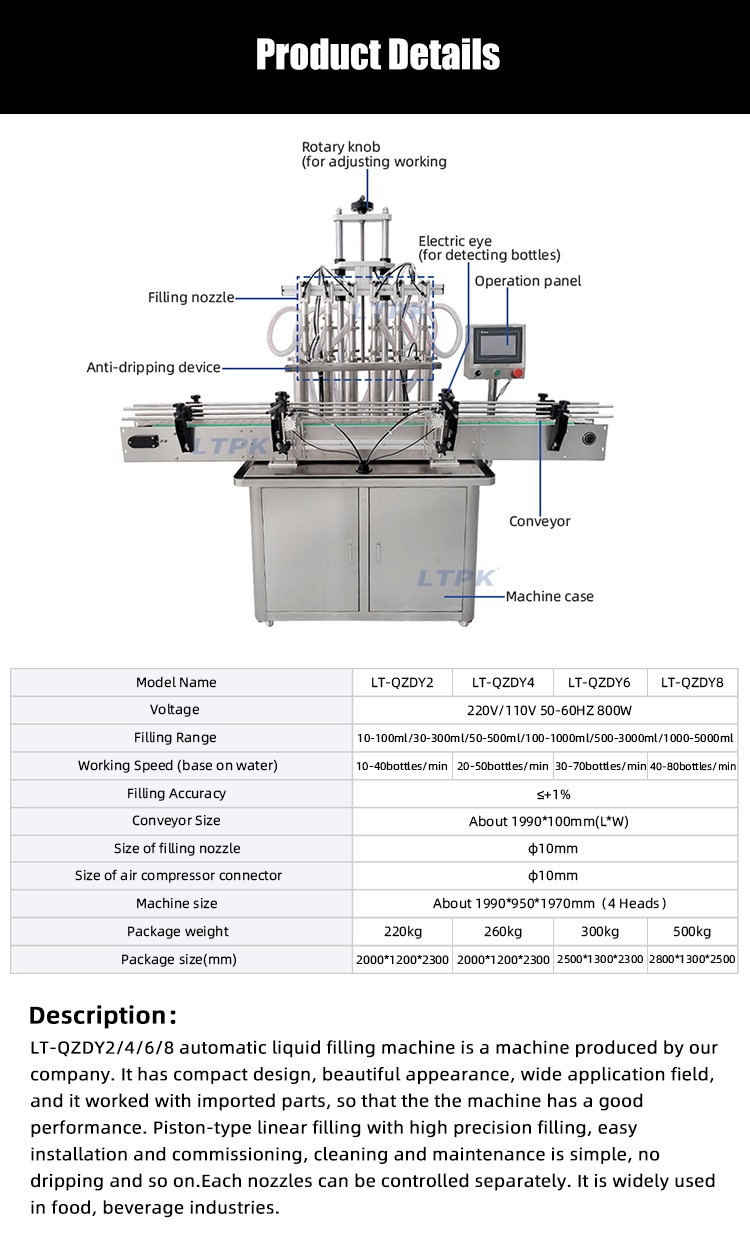

Model	LT-QZDY2	LT-QZDY4	LT-QZDY6	LT-QZDY8
Voltage	220V/110V 50-60HZ 800W
Filling Range	10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed (base on water)	10-40bottles/min	20-50bottles/min	30-70bottles/min	40-80bottles/min
Filling Accuracy	≤+1%
Conveyor Size	About 1990100mm(LW)
Size of filling nozzle	φ10mm
Size of air compressor connector	φ10mm
Machine size	About 19909501970mm（4 Heads）
Package weight	220kg	260kg	300kg	500kg
Package size(mm)	200012002300	200012002300	250013002300	280013002500

Ordering Information

Please provide the material, viscosity or powder flow properties, required dose, container dimensions and target output. Confirm the appropriate configuration for your product.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.

Request a quote: portiaxie@fillinglabeling.com | WhatsApp +86 15070838530. See our contact page for our locations.
