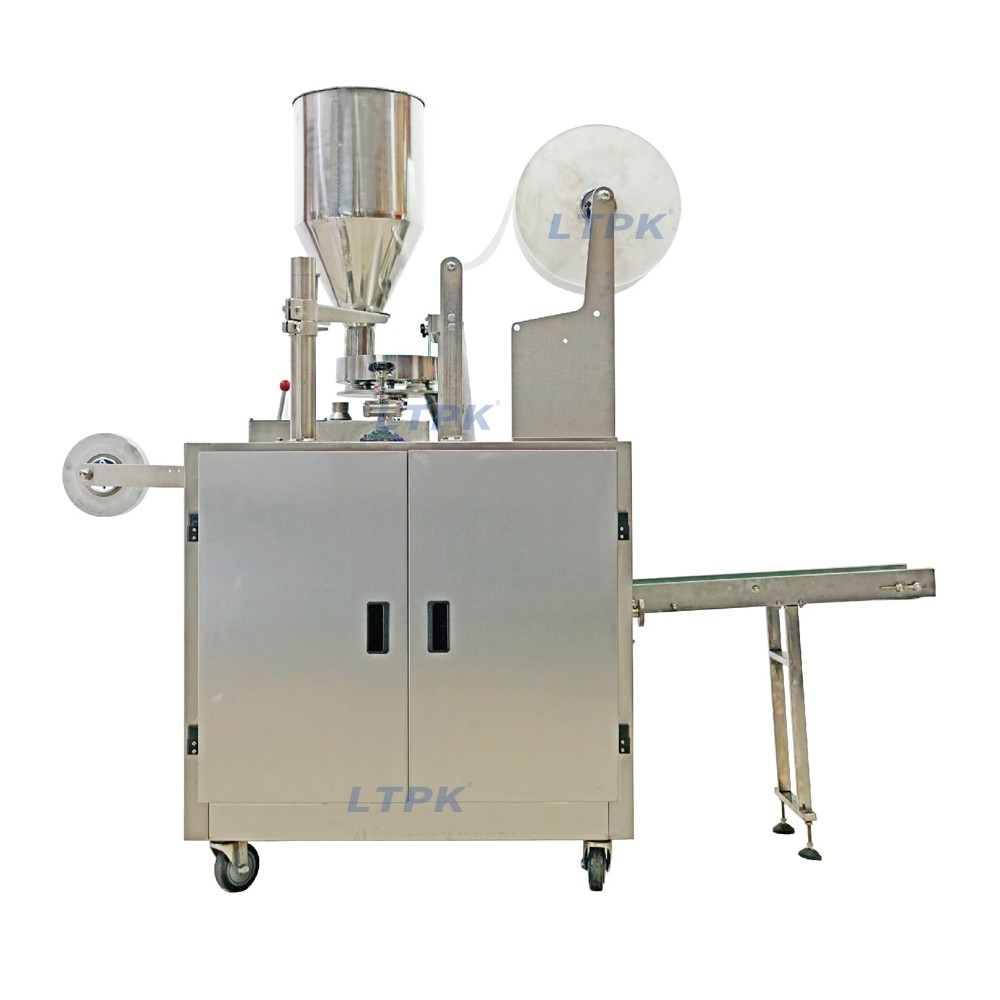

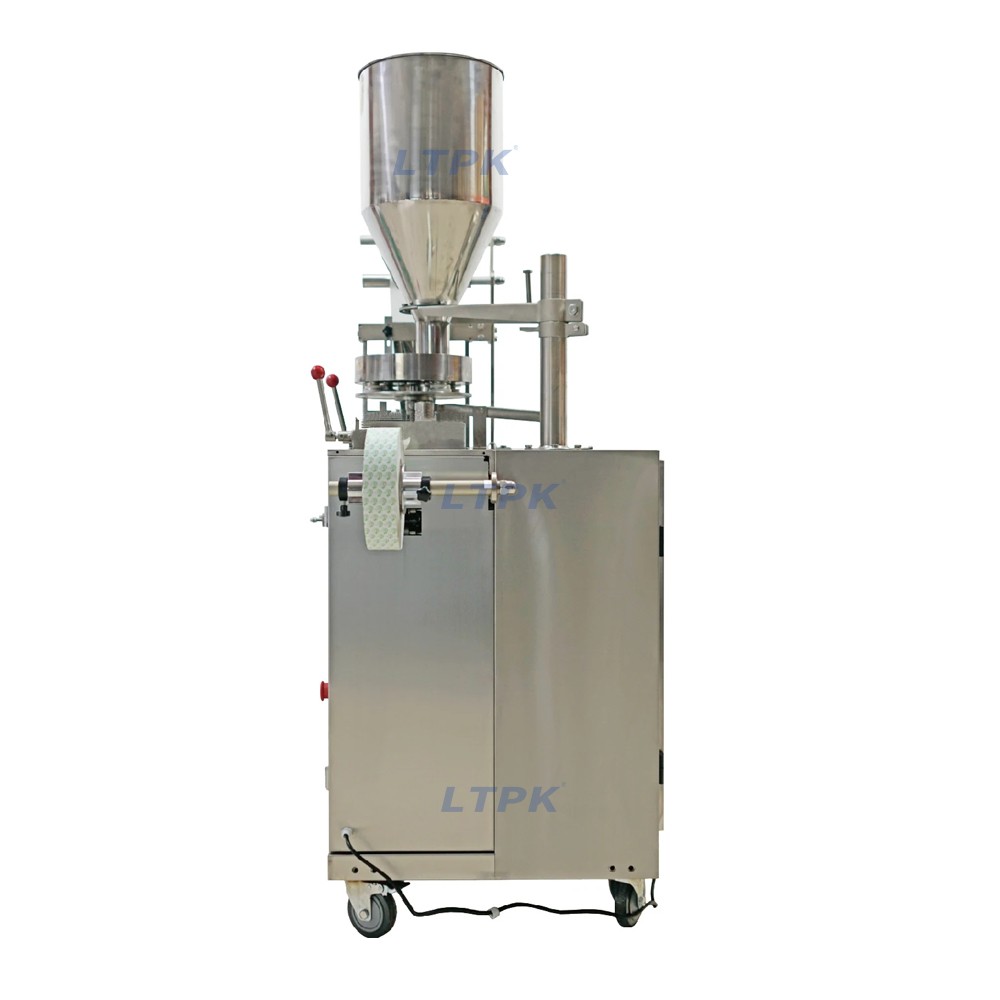

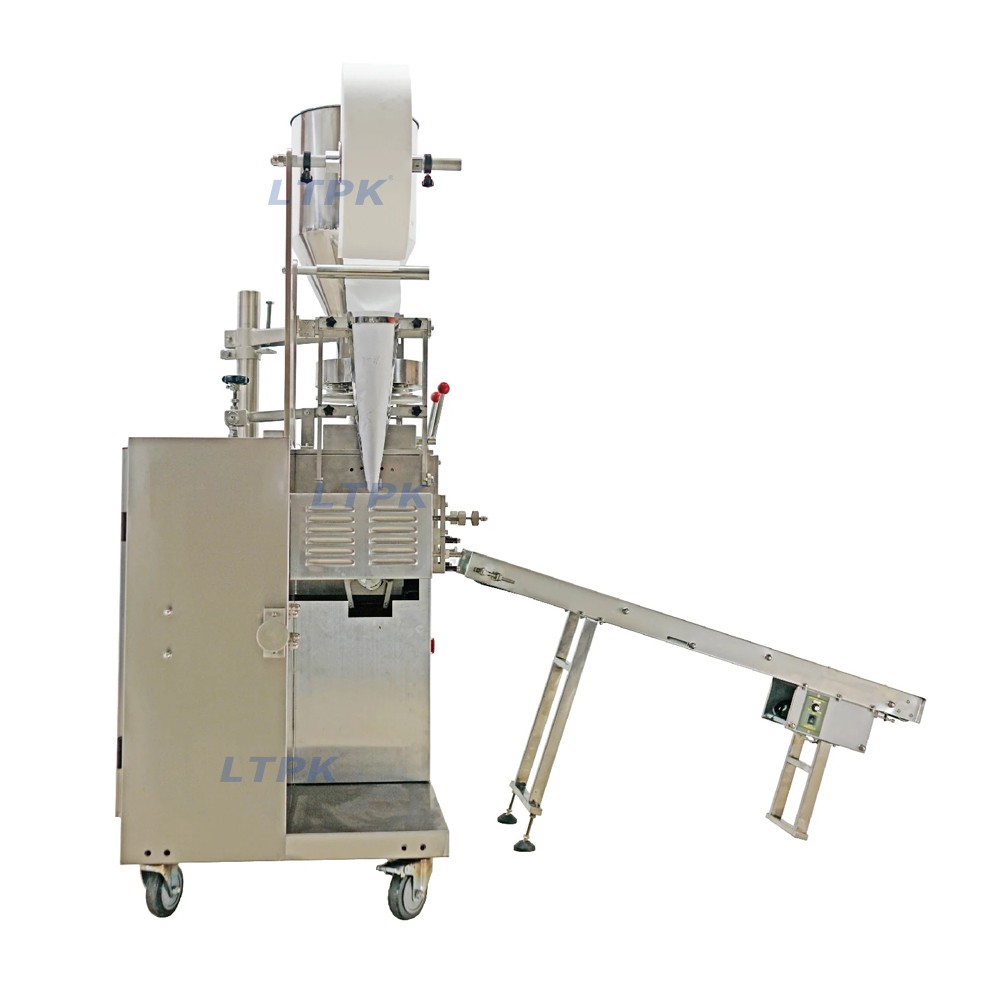

LT-YS11 Tea Bag Packing Machine with Thread and Tag

LT-YS11 Tea Bag Packing Machine with Thread and Tag

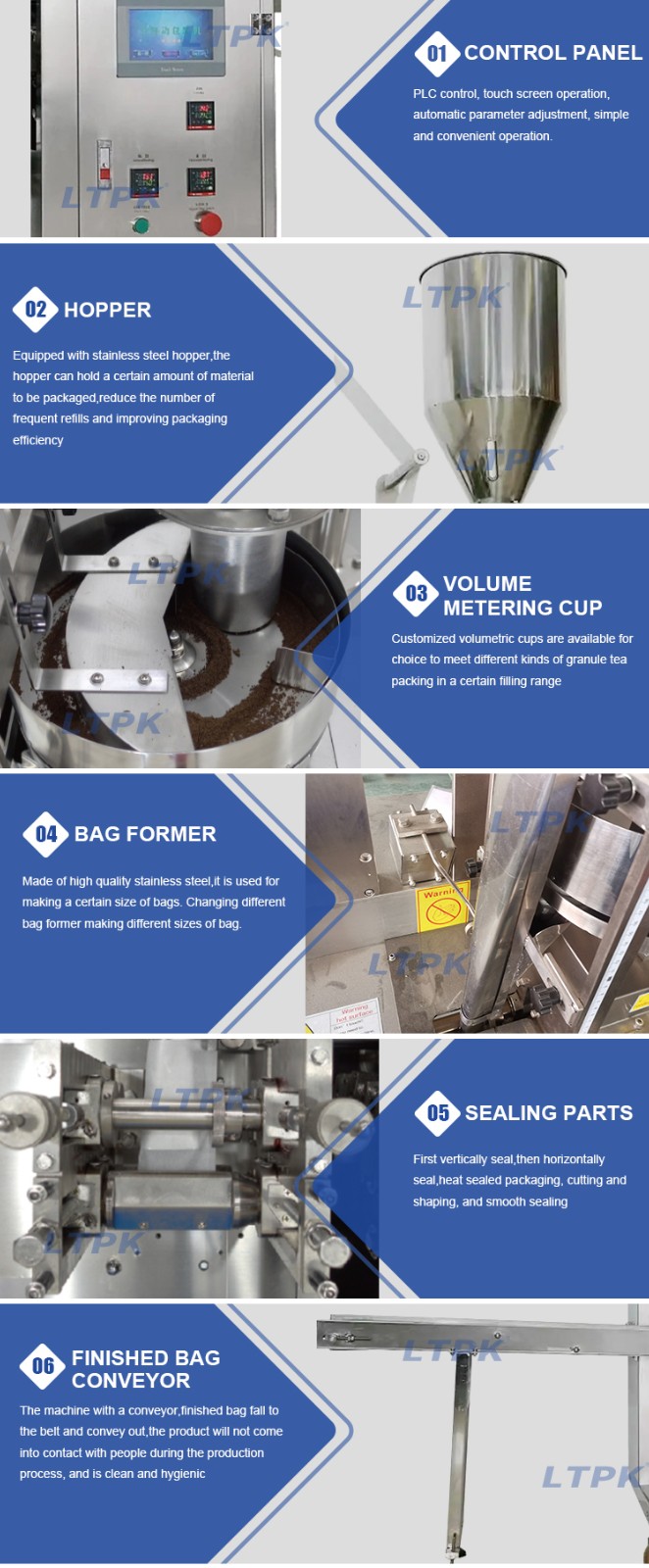

The machine adopts PLC control, touch screen operation, automatic parameter adjustment, and simple and convenient operation. Hanging lines and labels are formed in one go to avoid direct contact between hands and materials. It can automatically complete functions such as bag making, measuring, feeding, sealing, cutting, counting, etc.

Description：

The machine adopts PLC control, touch screen operation, automatic parameter adjustment, and simple and convenient operation.

Hanging lines and labels are formed in one go to avoid direct contact between hands and materials.

It can automatically complete functions such as bag making, measuring, feeding, sealing, cutting, counting, etc.

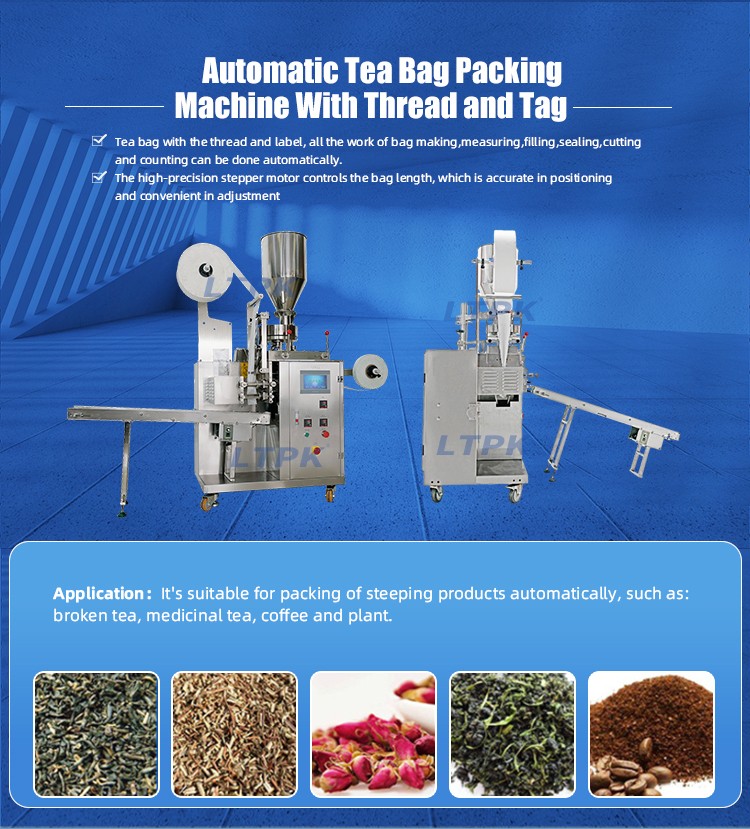

Application:

It's suitable for packing of steeping products automatically, such as: broken tea, medicinal tea, coffee and plant.

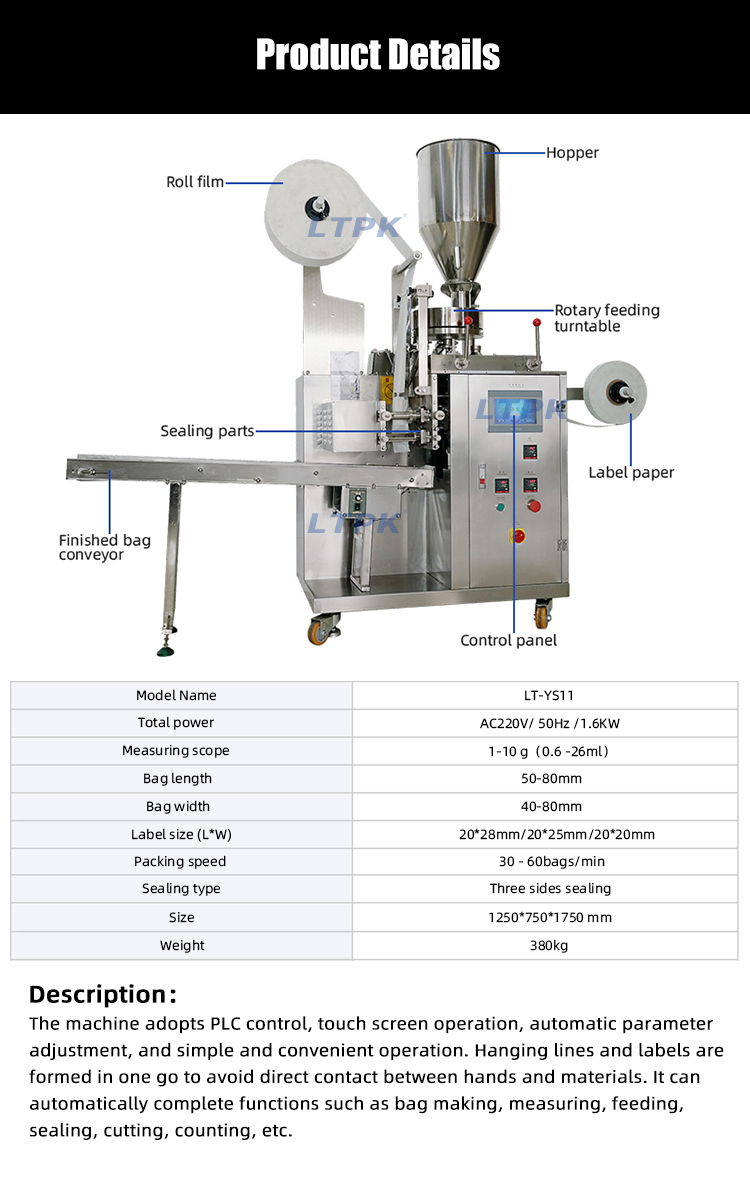

Technical parameters：

Model	LT-YS11
Total power	AC220V/ 50Hz /1.6KW
Measuring scope	1-10 g（0.6 -26ml）
Bag length	50-80mm
Bag width	40-80mm
Label size (L*W)	2028mm/2025mm/20*20mm
Packing speed	30 - 60bags/min
Sealing type	Three sides sealing
Size	12507501750 mm
Weight	380kg

Ordering Information

Please provide the material to be packed, target weight or volume, bag dimensions, packaging film and required output. Confirm the dosing and sealing configuration.

Warranty and Lead Time

The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.
