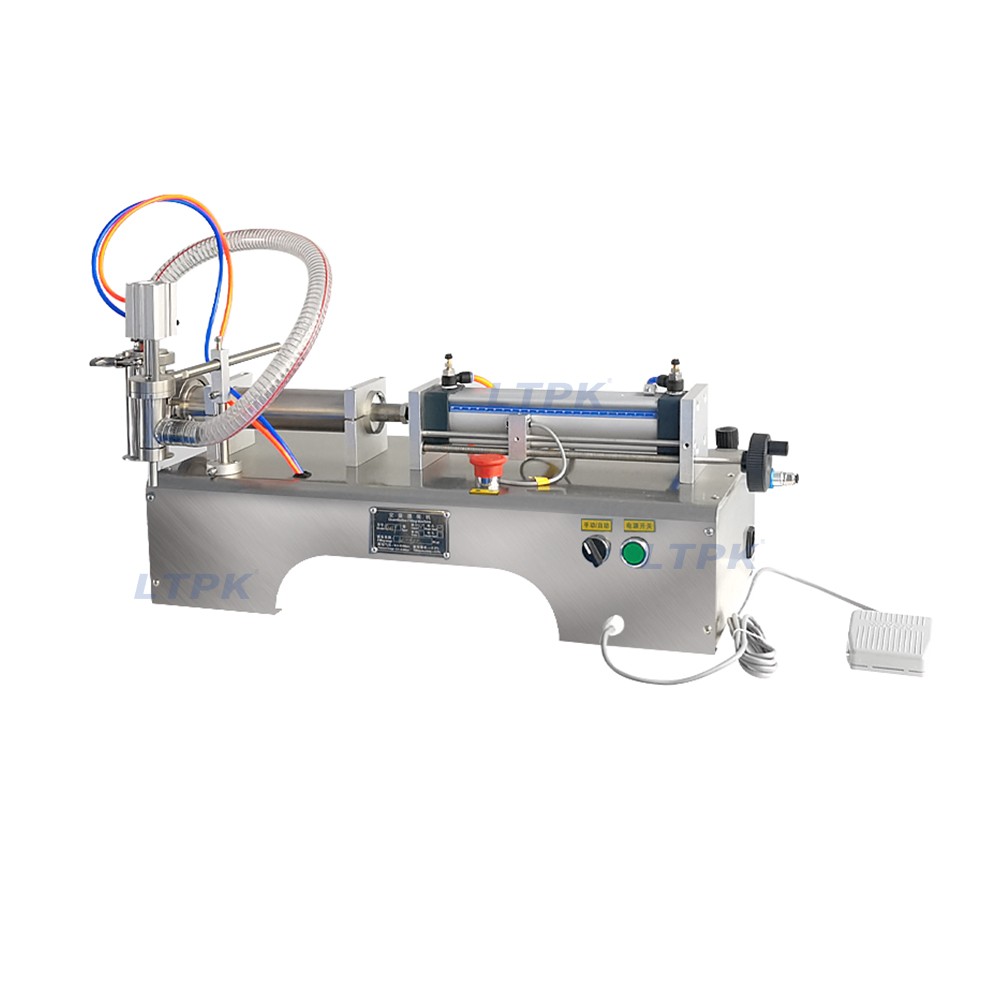

G1WY Pneumatic Self-Priming Liquid Filling Machine

G1WY is a single-head pneumatic liquid filler with self-priming feed and no hopper. It is intended for very free-flowing liquids. It is not suitable for pastes that require a hopper-fed setup.

G1WY Pneumatic Self-Priming Liquid Filling Machine

G1WY is a single-head pneumatic liquid filler with self-priming feed and no hopper. It is intended for very free-flowing liquids. It is not suitable for pastes that require a hopper-fed setup.

Self-priming feed, no hopper

The G1WY draws liquid directly through its self-priming feed. It is intended for liquids with very good flowability. The hopperless WY arrangement is not the choice for paste that needs a hopper.

Frequently asked questions

Does G1WY have a hopper?

No. It is self-priming and has no hopper.

Can it fill paste?

It is intended for very free-flowing liquids. For paste, choose a hopper-fed WG model and confirm the material.

Technical specifications (existing listing)

Model	G1WY, 10–100 ml listing
Drive / feed	Pneumatic, self-priming; no hopper
Filling head	Single head
Listed speed	About 1–25 bottles/min
Filling range	10–100 ml
Filling accuracy	≤±1%
Voltage	220V/50Hz or 110V/60Hz (optional)
Power	20W
Air pressure	0.4–0.6 MPa
Air consumption	≥1 m³/min (as listed; confirm configuration)
Machine size / weight	96 × 39 × 34 cm; 29 kg

Options and quotation

Tell us the product name, viscosity, target filling volume, container and required output. Confirm the matching pump and filling-volume configuration before ordering. Air compressors are not included; provide a suitable compressor for pneumatic models. The listed air consumption and pressure should be confirmed against the selected setup.

Warranty and lead time

The standard equipment warranty is generally one year. Standard equipment usually has a lead time of 3–5 days. Custom equipment delivery is agreed after discussing the specifications.

Request a quotation: portiaxie@fillinglabeling.com | WhatsApp +86 15070838530.
