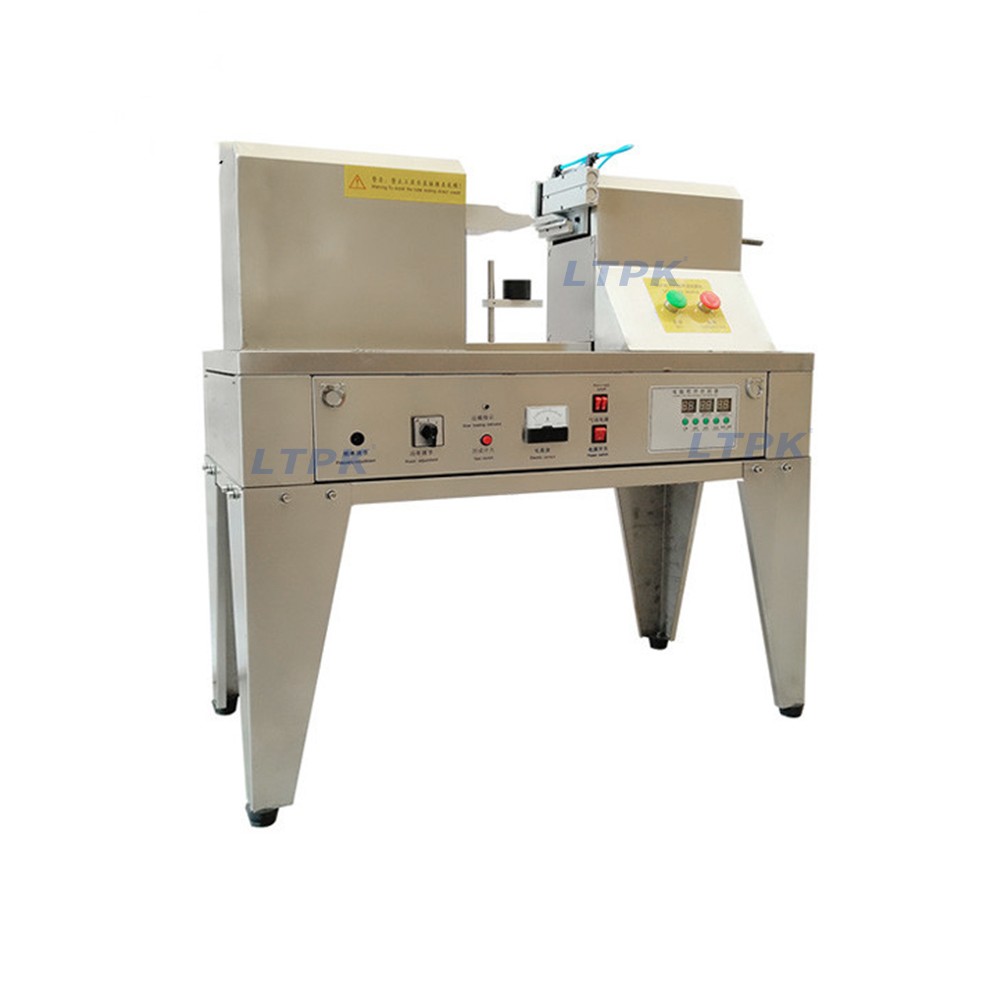

QDFM-125 Ultrasonic Tube Sealing Machine Semi Automatic Toothpaste Lotion Grease Tube Sealing Machine
The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes. It has good working stability and high efficiency. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance
Description:
The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes. It has good working stability and high efficiency. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance
Application:
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

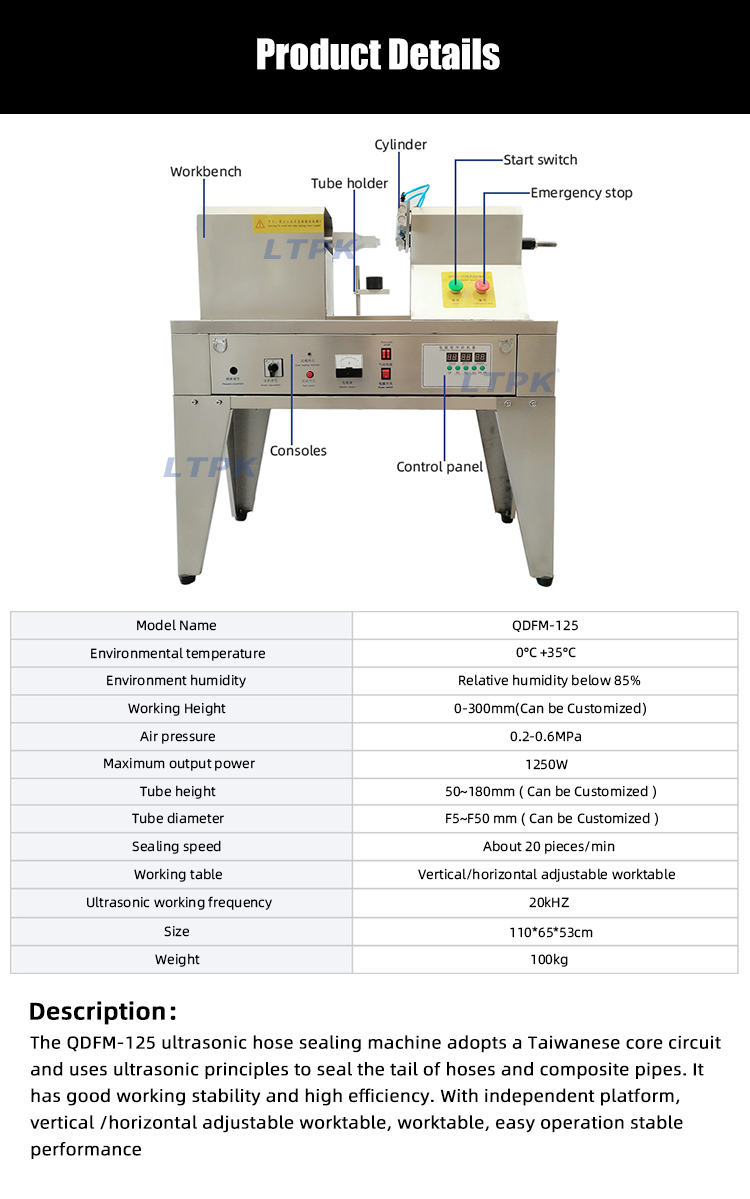

Parameter:
Model | QDFM-125 |
Environmental temperature | 0°C +35°C |
Environment humidity | relative humidity below 85% |
Working Height | 0-300mm(Can be Customized) |
Air pressure | 0.2-0.6MPa |
Maximum output power | 1250W |
Tube height | 50~180mm ( Can be Customized ) |
Tube diameter | F5~F50 mm ( Can be Customized ) |
Sealing speed | About 20 pieces/min |
Working table | vertical/horizontal adjustable worktable |
Ultrasonic working frequency | 20kHZ |
Size | 110*65*53cm |
Weight | 100kg |

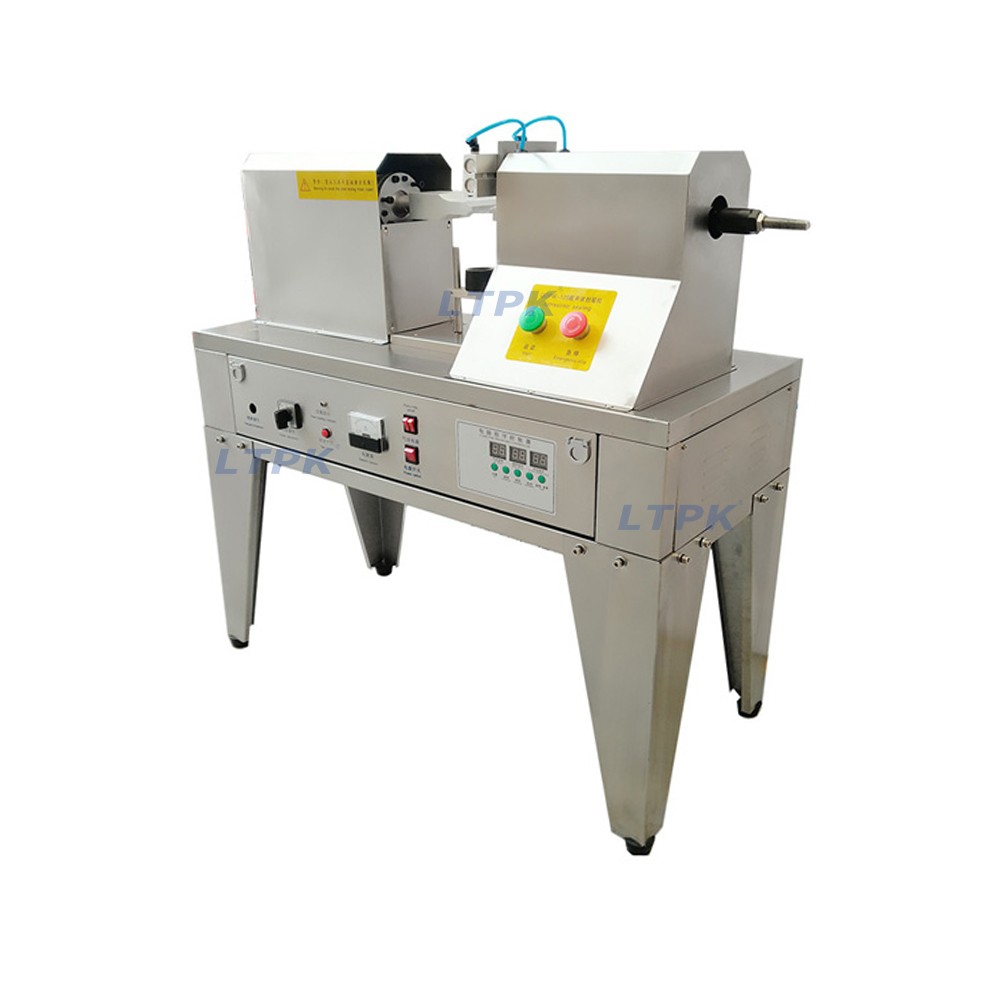

QDFM -125 Ultrasonic Plastic Tube Sealing Machine

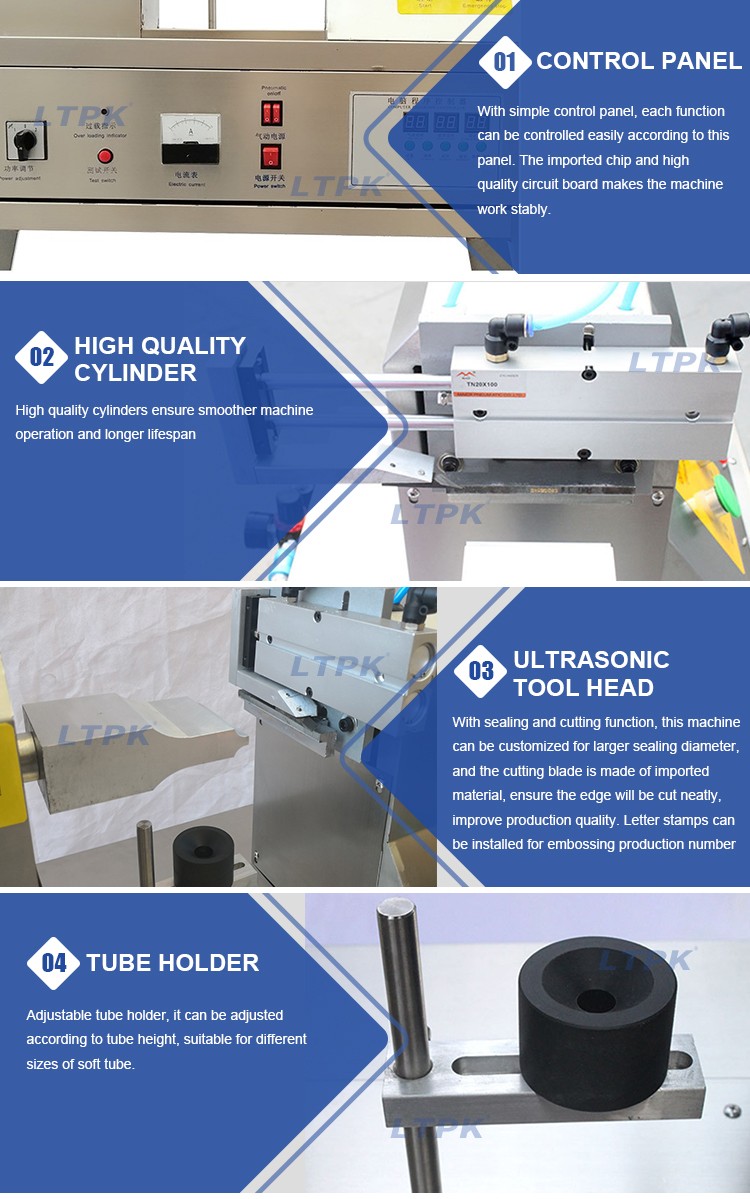

Dual use of tail sealing and edge cutting,and the tool head can be customized according to customer requirements
Electronic program control, high degree of automation, easy operation, built-in electronic protection circuit.
