This 8-head automatic magnetic pump filling machine body is made of all stainless steel. It comes with automatic counting function. The performance is reliable and the measurement is accurate. It is an excellent machine for filling particle-free liquid.The filling nozzles can be customized according to your requirements(like 4 or 6),and customers can control each nozzle separately.
Description:
This 8-head automatic magnetic pump filling machine body is made of all stainless steel. It comes with automatic counting function. The performance is reliable and the measurement is accurate. It is an excellent machine for filling particle-free liquid.The filling nozzles can be customized according to your requirements(like 4 or 6),and customers can control each nozzle separately.
Application:
A wide range of applications, such as: various chemicals (solvents, acetone), cosmetics (toner, makeup remover, spray), food (milk, soybean milk, fruit juice, fruit wine), condiments (soy sauce, vinegar, sesame oil) and other non granular liquids

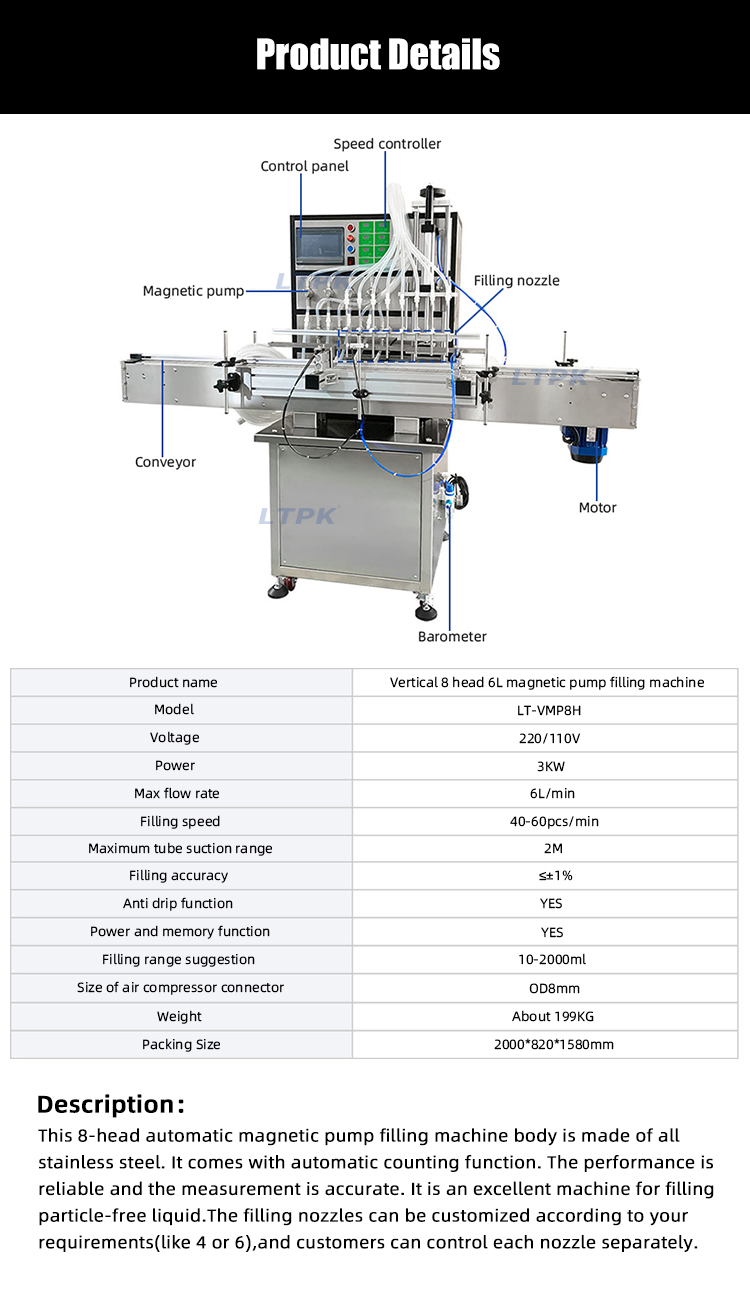

Name | Vertical 8 head 6L magnetic pump filling machine |
Model | LT-VMP8H |
Voltage | 220V/110V |
Power | 3KW |
Max flow rate | 6L/min |
Filling speed | 40-60pcs/min |
Maximum tube suction range | 2M |
Filling accuracy | ≤±1% |
Anti drip function | Yes |
Power and memory function | Yes |
Filling range suggestion | 10-2000ml |
Size of air compressor connector | OD8mm |
Weight | About 199KG |
Packing Size | 2000*820*1580mm |




Please provide the material, viscosity or powder flow properties, required dose, container dimensions and target output. Confirm the appropriate configuration for your product.
The standard equipment warranty is generally one year. The usual lead time for standard equipment is 3–5 days. Custom equipment lead times are confirmed after discussing the specifications. Please confirm warranty and delivery details in your quotation.
