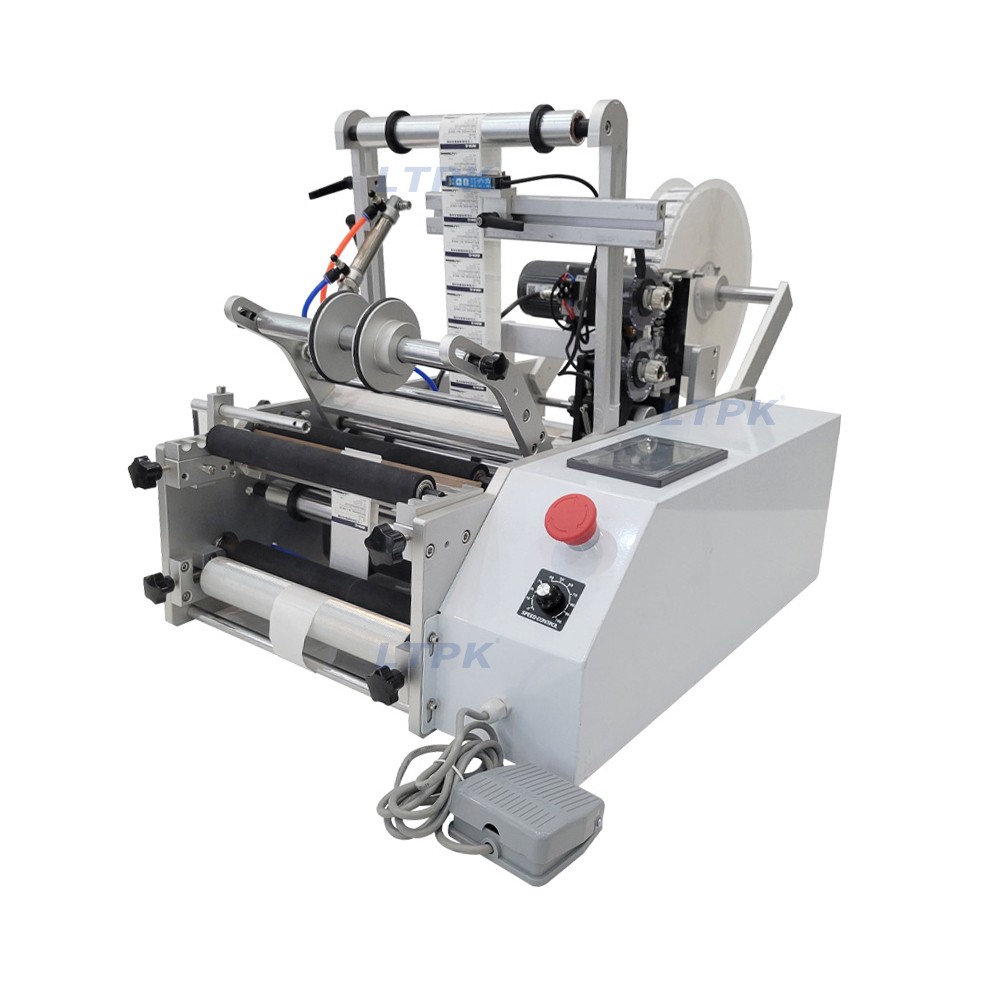

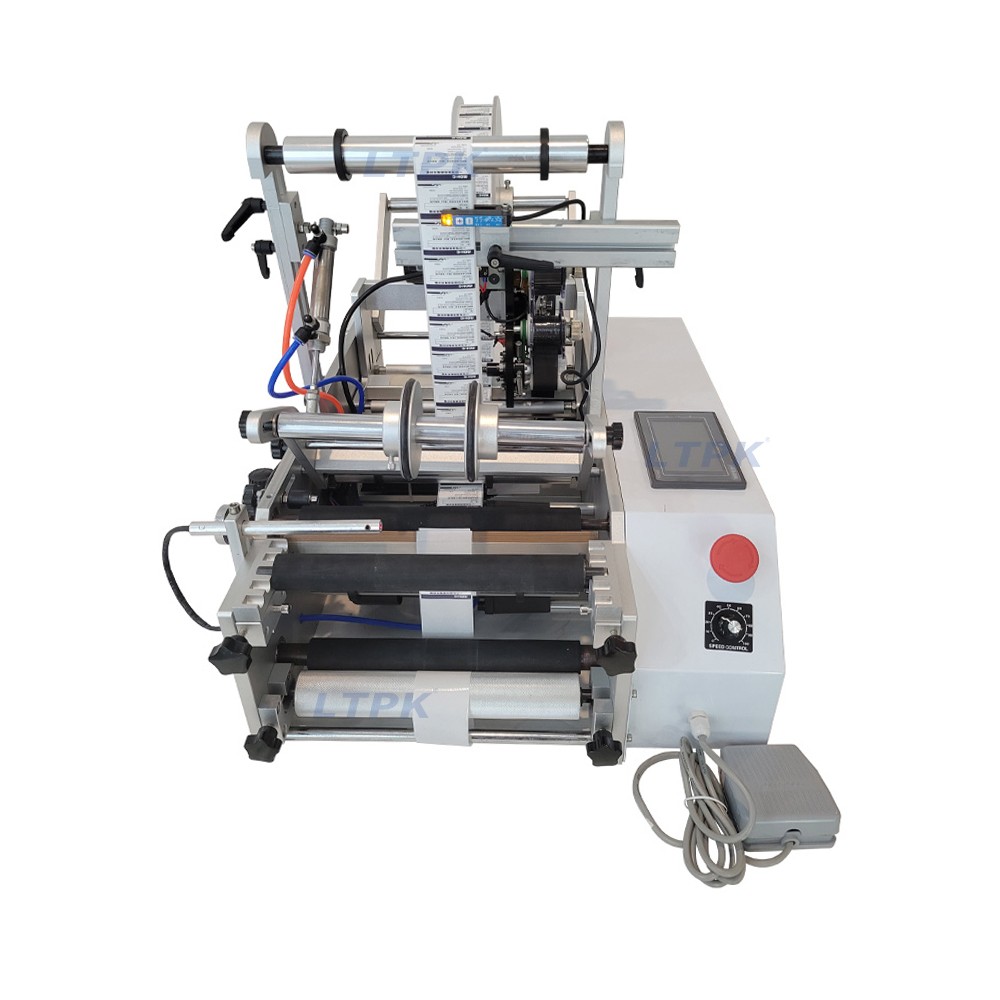

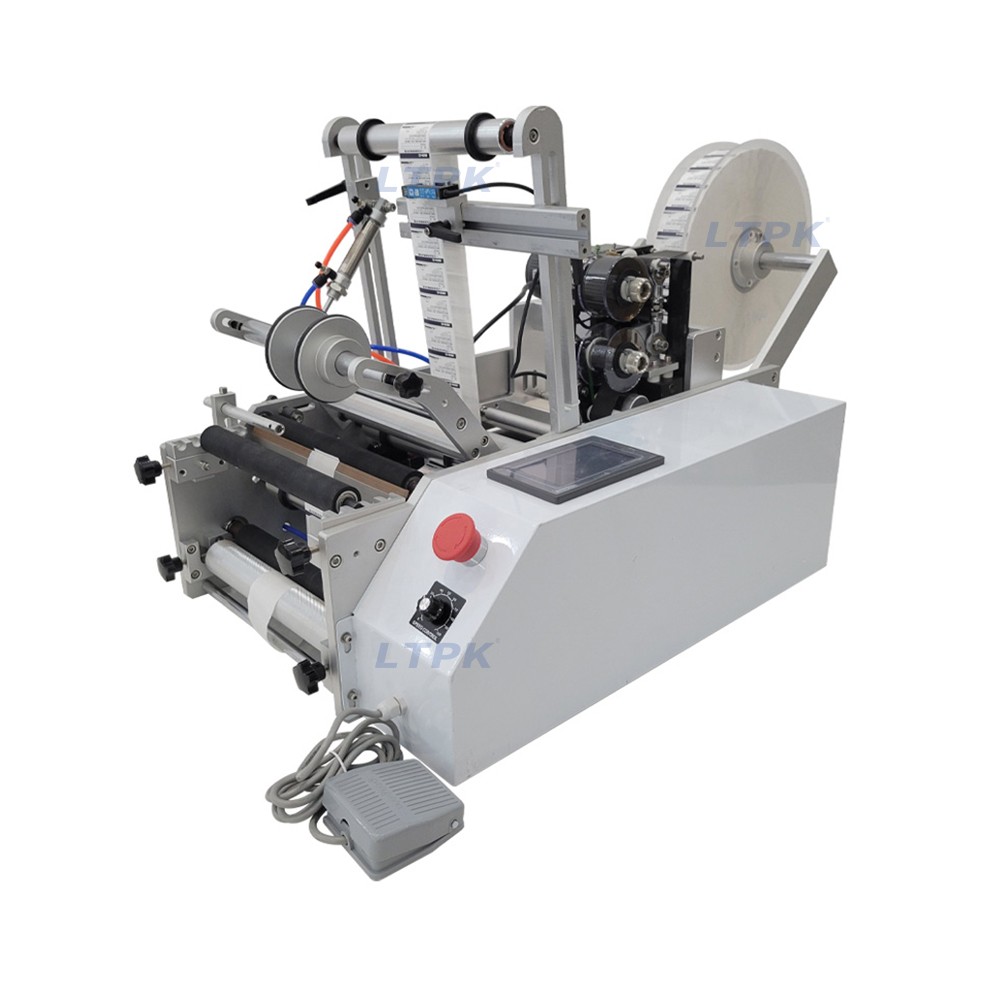

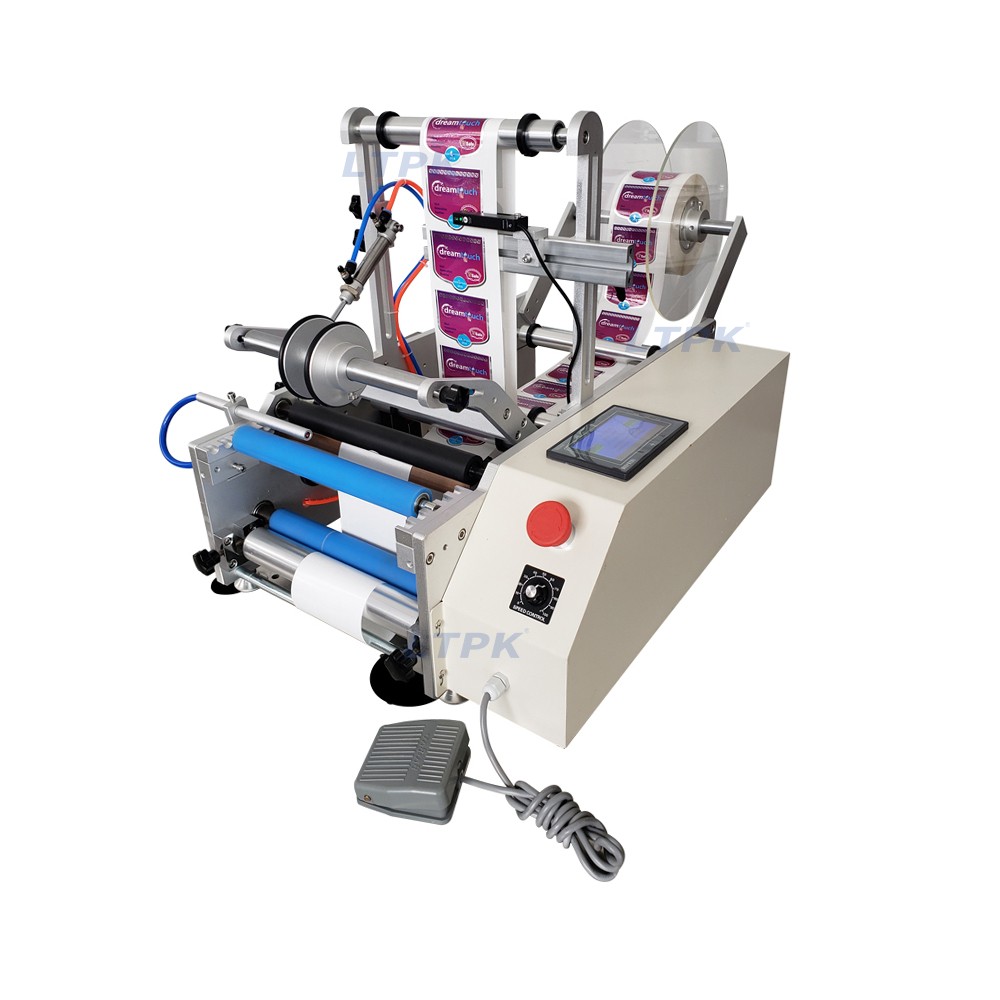

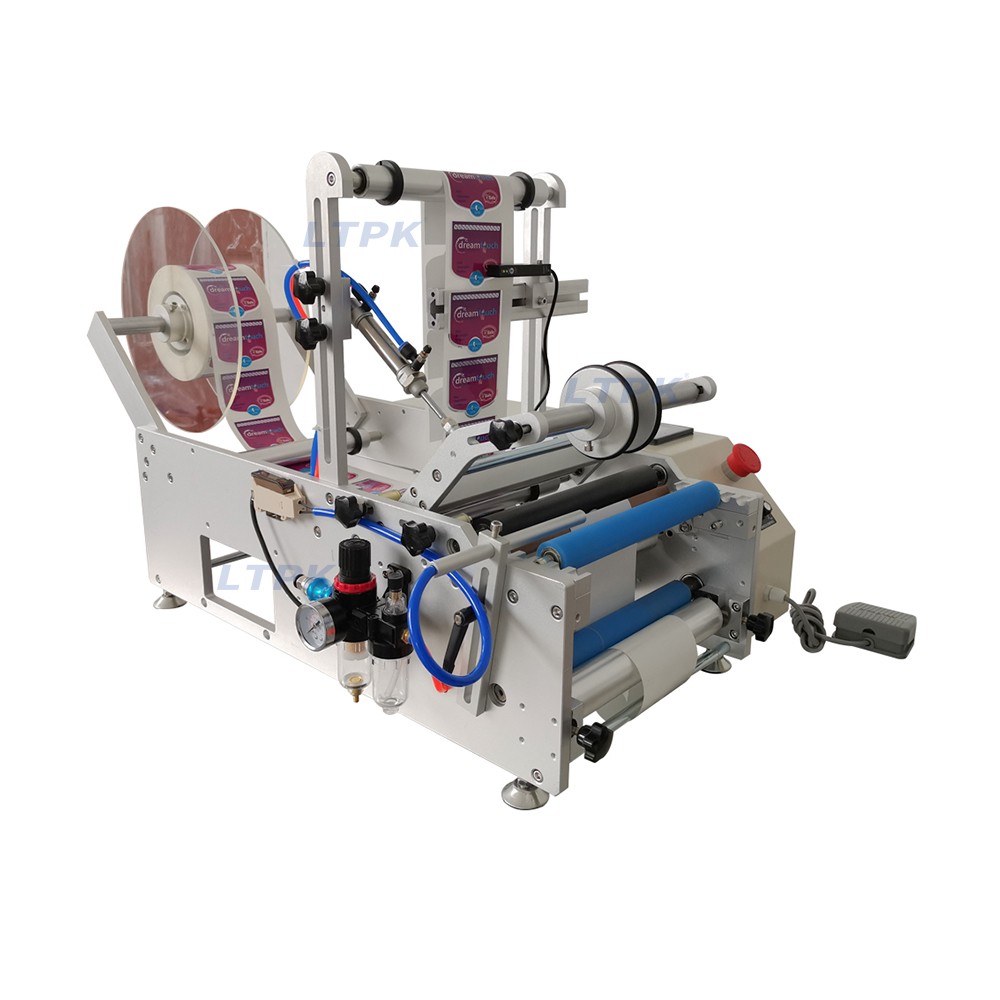

LT-190III Wine Double Side Sticker Round Water Semi-automatic Digital Bottle Labeling Printing Machine

LT-190III Wine Double Side Sticker Round Water Semi-automatic Digital Bottle Labeling Printing Machine

This semi-automatic round bottle labeling machine is suitable for labeling of various specifications of cylindrical objects, which can realize full / half cycle labeling / front and back labeling of the circumference; the spacing between the front and back can be adjusted arbitrarily; the intelligent degree is higher, the operator only needs to put products and take items;the pneumatic switch is automatically completed; the operation process is reduced.

Description:

This semi-automatic round bottle labeling machine is suitable for labeling of various specifications of cylindrical objects,

which can realize full / half cycle labeling / front and back labeling of the circumference; the spacing between the front and back can be adjusted arbitrarily;

the intelligent degree is higher, the operator only needs to put products and take items;the pneumatic switch is automatically completed; the operation process is reduced.

Application:

Suitable for labeling cylindrical objects of various specifications and small taper round bottles, such as cosmetics round bottles, wine bottles, etc.

Model	LT-190III
Labeling capacity(pcs/min)	15- 30pcs/min
Labeling accuracy(mm)	±1mm
Label size(mm)	(L)20-230mm (W)20-300mm
Suitable Bottle Diameter	Φ10-φ150mm
Suitable Bottle Height	≤26cm
Roll inside diameter(mm)	φ75mm
Roll outside diameter(mm)	≤φ250mm
Power supply	AC220V 50Hz/110V 60Hz 250W
Machine size	About 540950530mm
Package Size	About 755535380mm
Net weight/Gross weight	About 42.5KG/50KG
