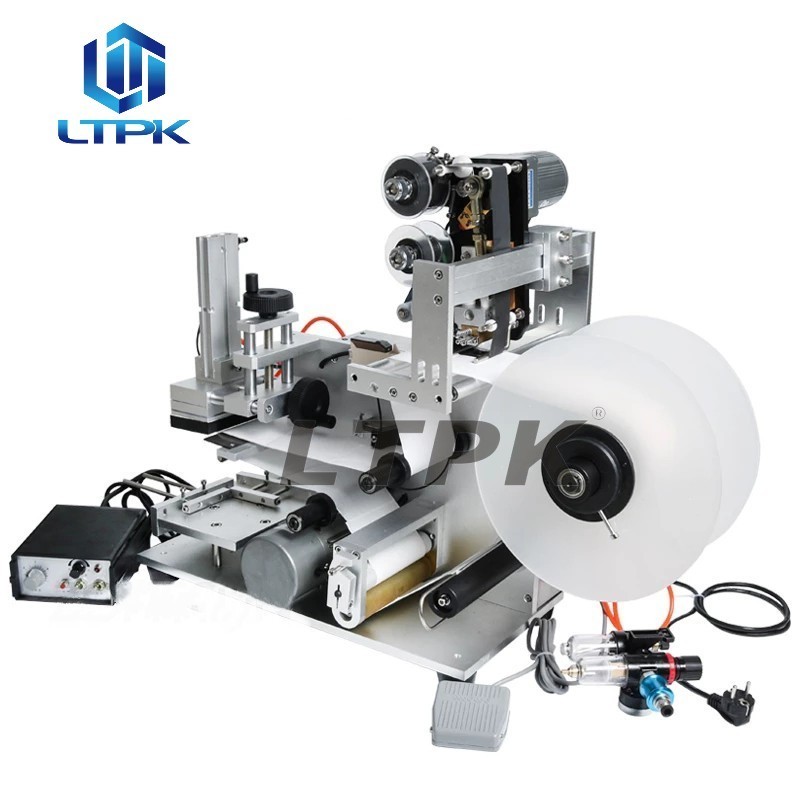

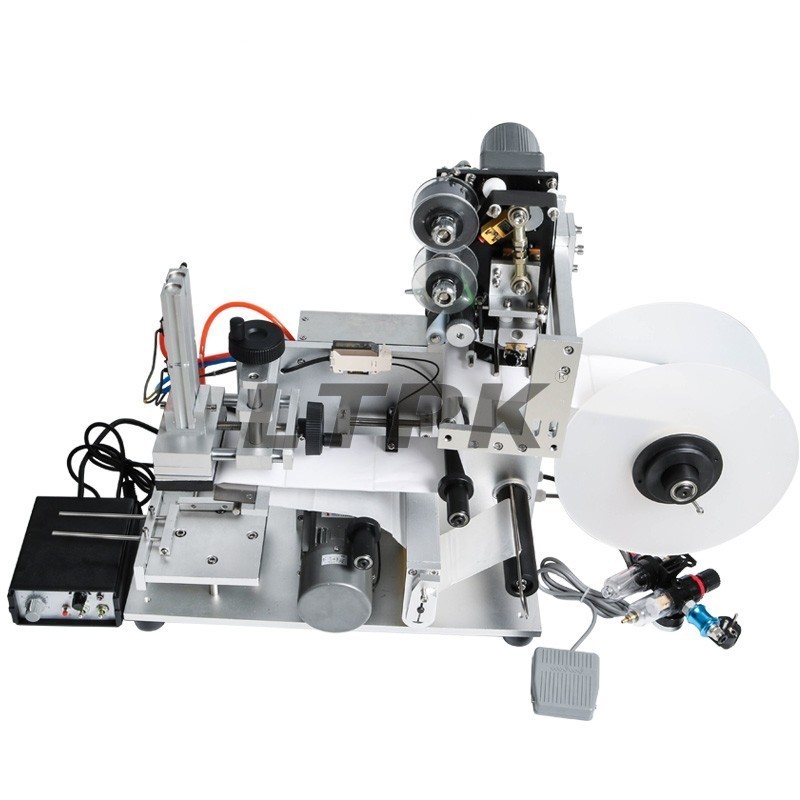

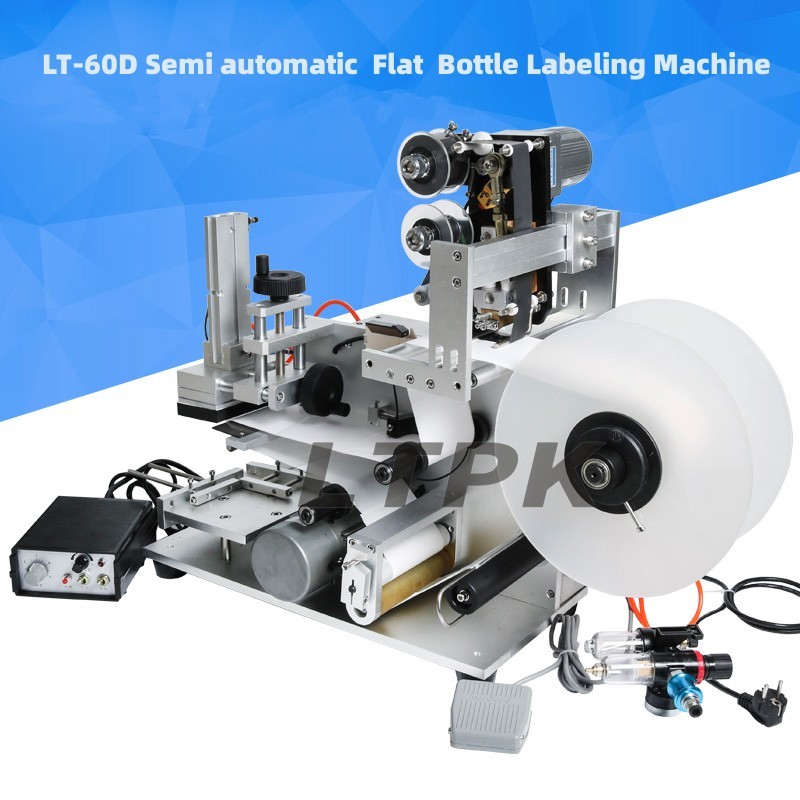

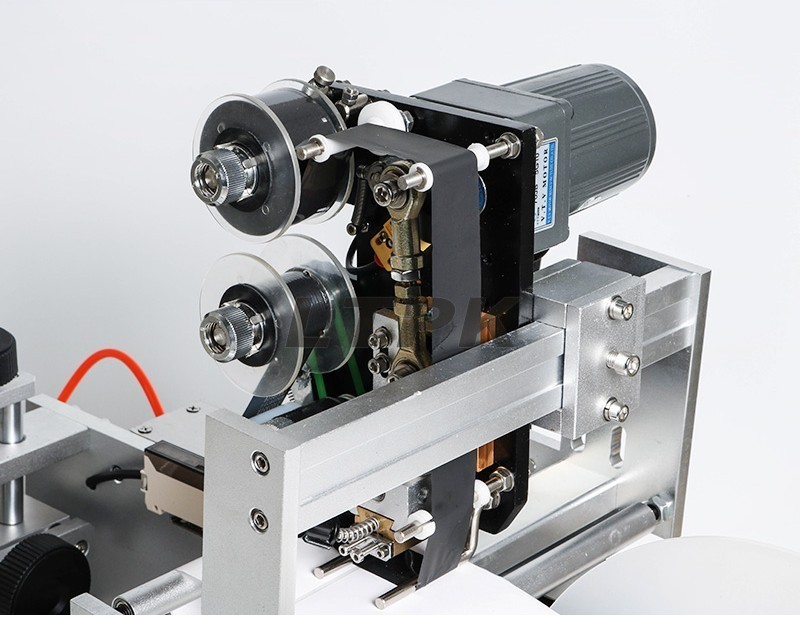

LTPK LT-60D Semi automatic flat surface labeling machine with date coder

Product Item:LT-60D
Labeling accuracy ±0.5mm
Min. label size W3*L4cm
Max label size W6*L12cm
Label roll inner diameter 75mm
Category:For Flat Surface Bottles



This LTPK LT-60D Semi automatic flat surface labeling machine with date coder machine is suitable for labeling various plastic/glass/metal square bottles and flat surface with self-adhesive label.It's electric and pneumatic driven,high performance,can do more accurate positioning,widely used in cosmetic,beverage,food,medicine etc,it is an ideal label equipment which can improve the productivity effectively.
LT-60D Semi automatic Labeling Machine,drugs bottle labeling machine,medicine bottle labeling machine
•Suitable for labeling all objects with flat surface

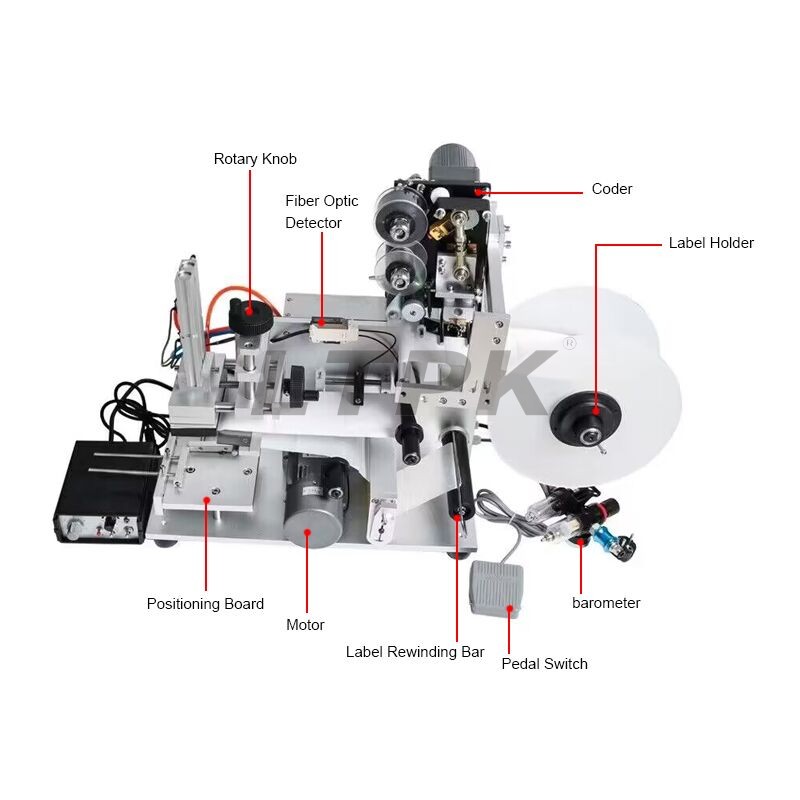

•Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
•Putting the bottle to orientation part by manual and fix the bottle; pressing the off-on switch;
•all metal are made of 304 stainless steel with surface finishing and special treatment, which we can guarantee you very good quality
•small size labeling machine, very easy to operate
•the machine without vacuum pump, now the machine are use "Vacuum Generators" in it


Technical Parameters

Machine model LT-60D

Voltage 220V 50Hz/110V 60Hz

Power 80W

Working speed About25-50 pcs/minute

Labeling accuracy ±0.5mm

Min. label size W3*L4cm

Max label size W6*L12cm

Label roll inner diameter 75mm

Max label roll outer diameter 300mm

Machine size About 735*310*560mm

Package size About 655*360*555mm

Net weight/Gross weight About 33.5kg/39kg
