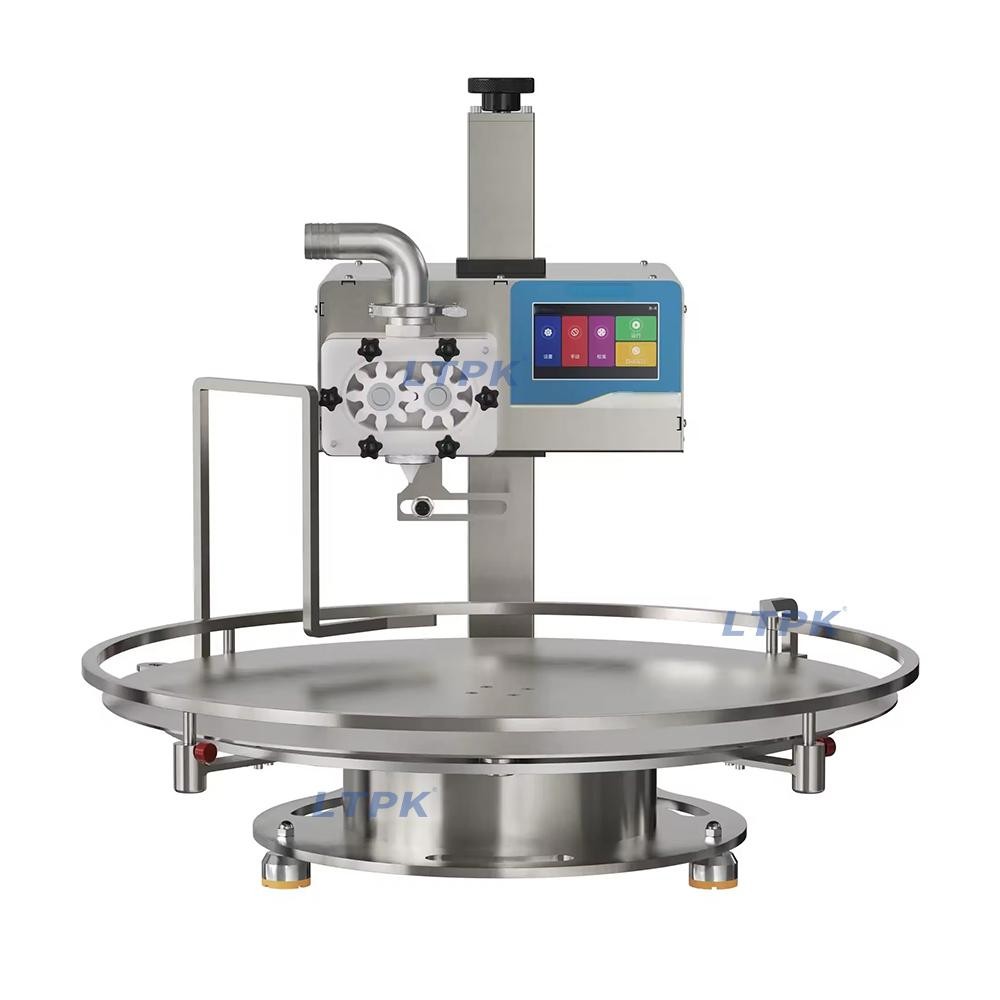

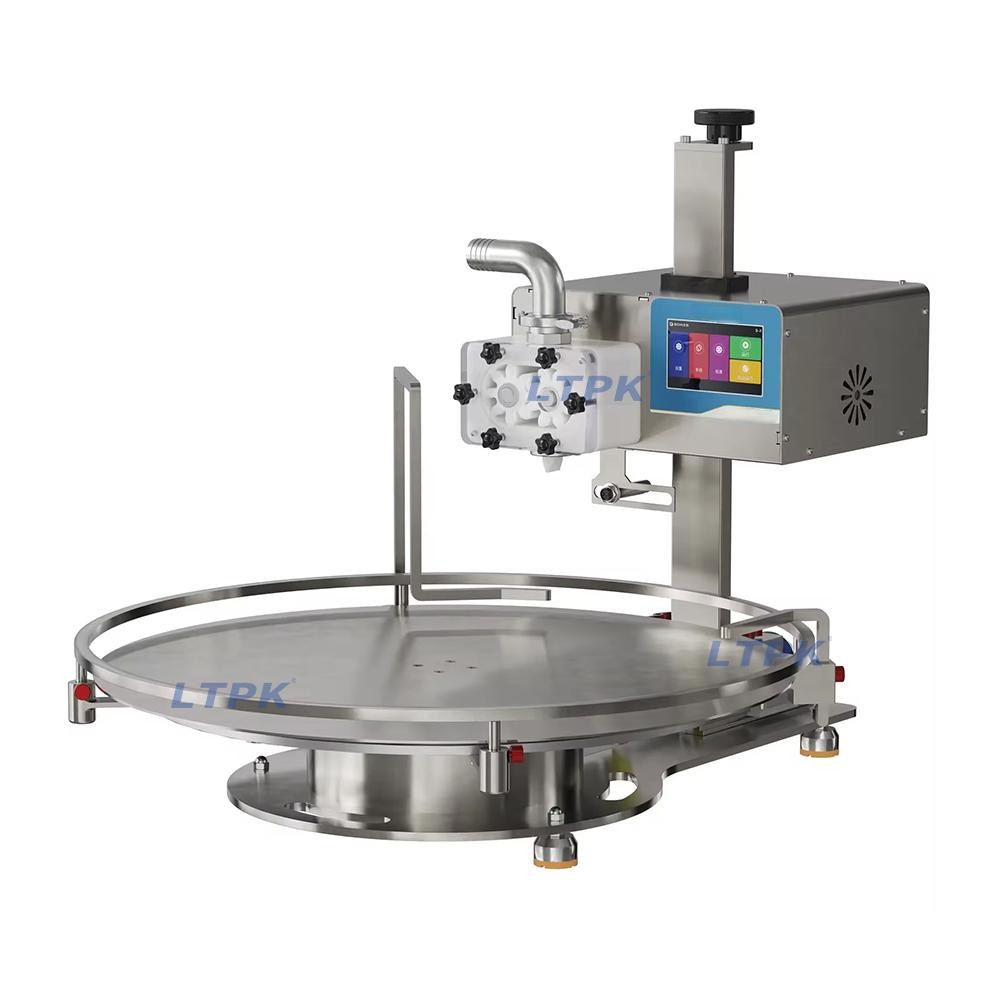

High viscosity liquid rotary table quantitative filling machine

Suitable for honey,yogurt,salad,soy sauce, pear paste,peanut butter, tomato sauce,edible butter and other food products.Shampoo, dishwashing liquid,resin, and other products across various industries.

EMAIL

Description

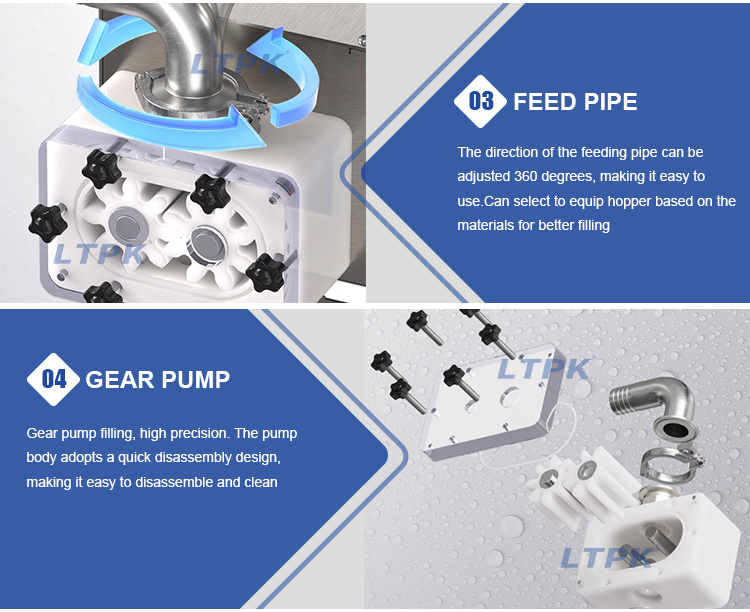

This filling machine uses a gear pump and is suitable for high viscosity liquids.It is equipped with an infrared sensing bottle system,the turntable and the filling machine work automatically in coordination,

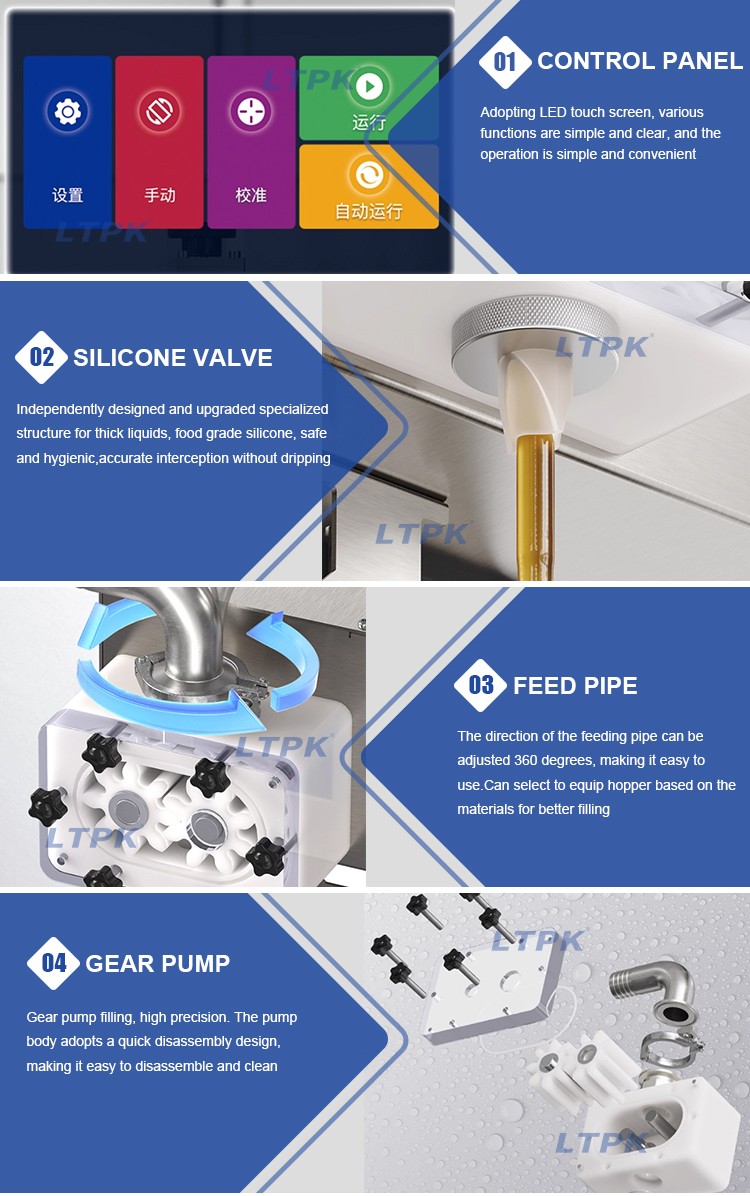

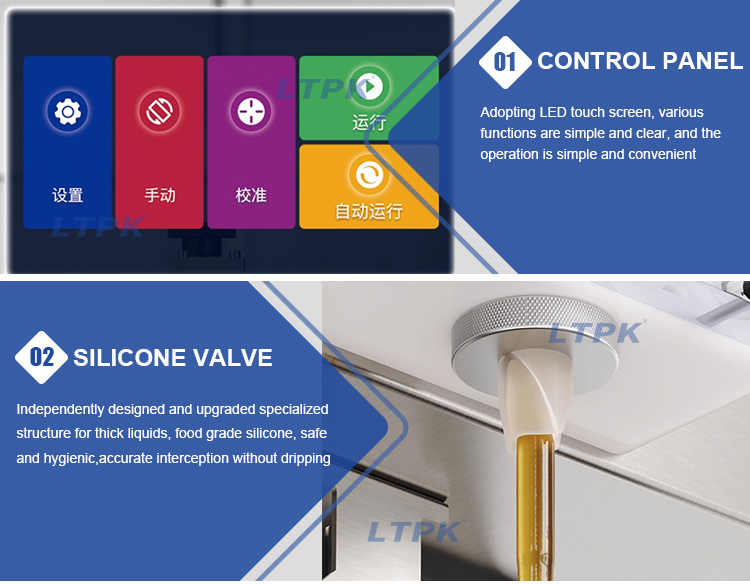

freeing up your hands. It can achieve small-dose container filling, with a minimum filling volume of 5g.Touch screen display, convenient for setting.



Application:

Suitable for honey,yogurt,salad,soy sauce, pear paste,peanut butter, tomato sauce,edible butter and other food products.Shampoo, dishwashing liquid,resin, and other products across various industries.

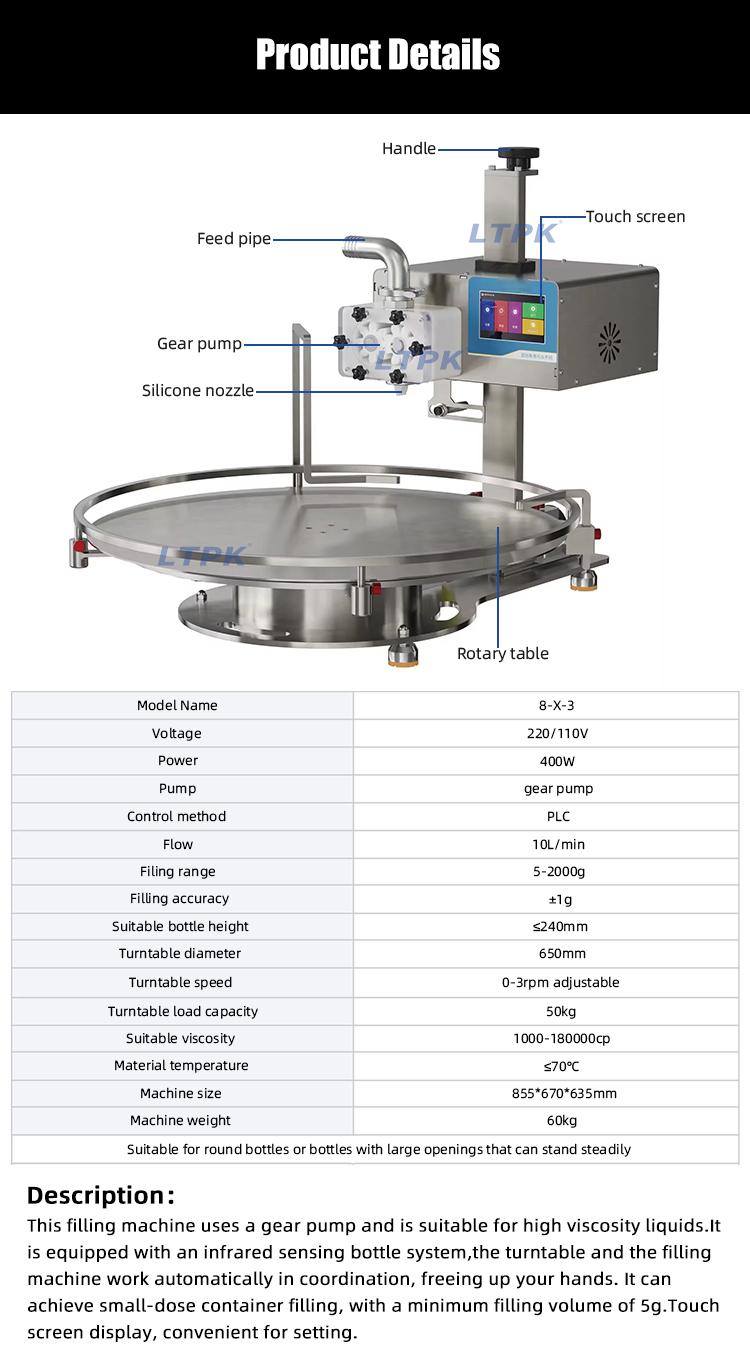

Model

8-X-3

Voltage

220/110V

Power

400W

Pump

gear pump

Control method

PLC

Flow

10L/min

Filing range

5-2000g

Filling accuracy

±1g

Suitable bottle height

240mm

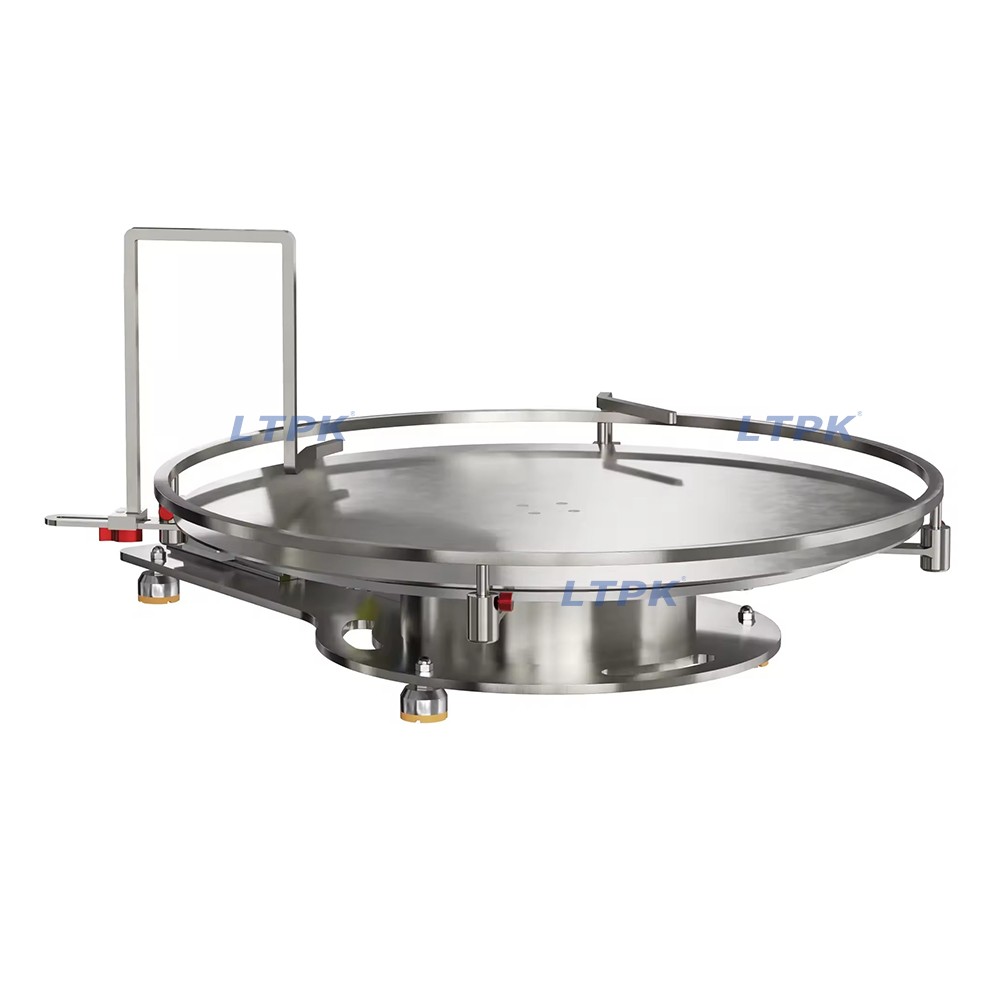

Turntable diameter

650mm

Turntable speed

0-3rpm adjustable

Turntable load capacity

50kg

Suitable viscosity

1000-180000cp

Material temperature

70

Machine size

855*670*635mm

Machine weight

60kg

Suitable for round bottles or bottles with large openings that can stand steadily
