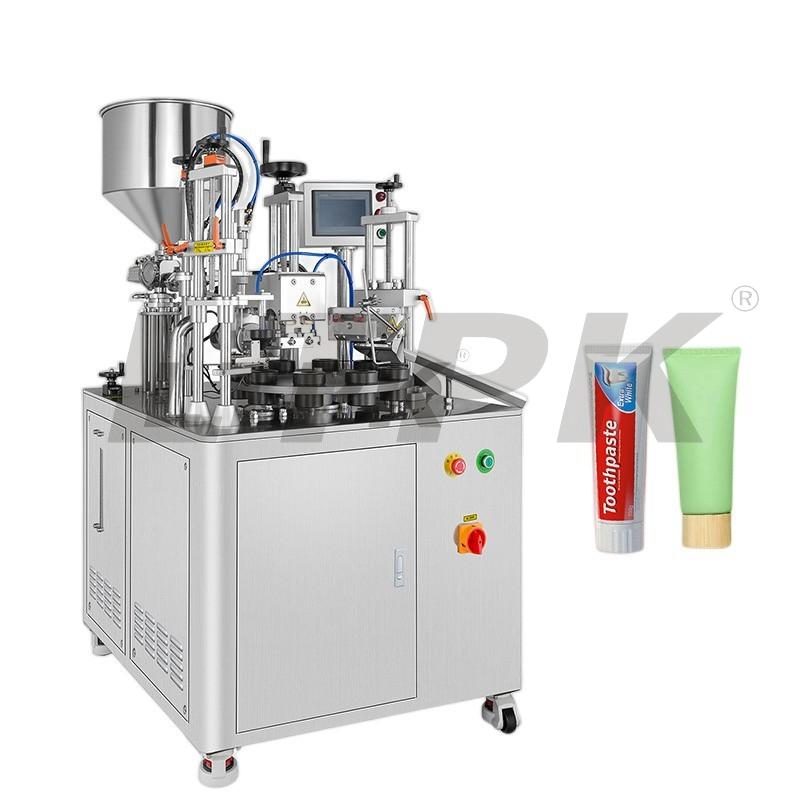

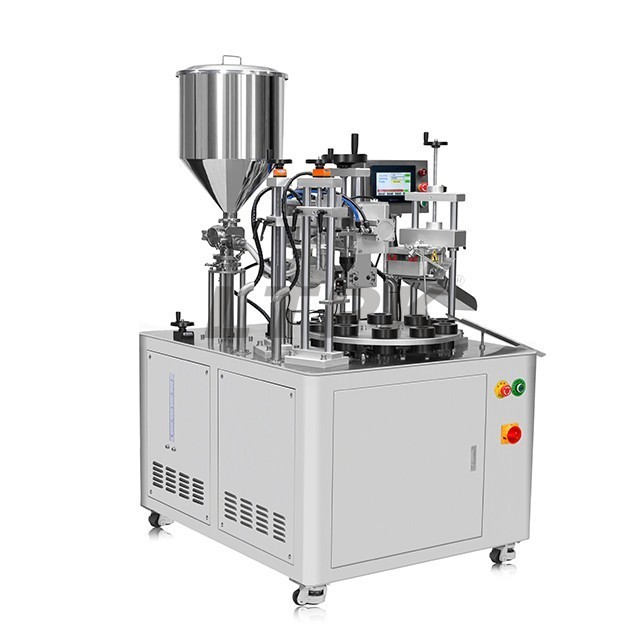

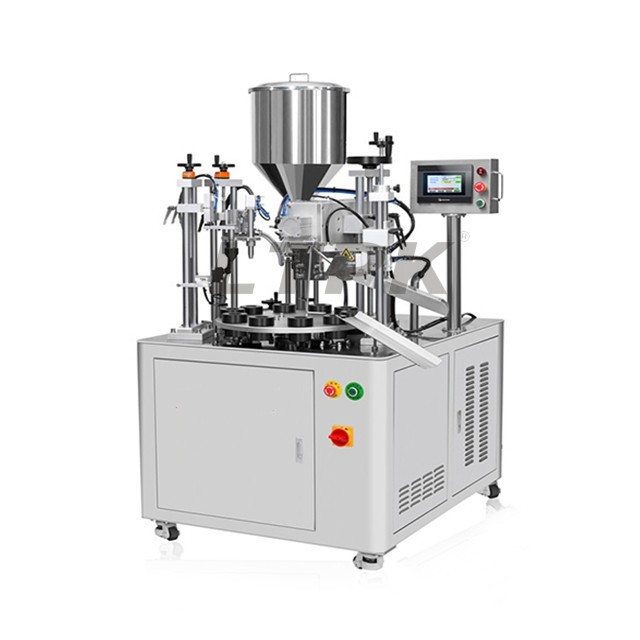

LTPK LT-006 Semi Automatic Tube Filling Sealing Machine

Product Item:LT-006
Sealing Dia 16-50mm
Machine size 1300*900*1550mm
Control Style PLC control
Voltage AC220V/single phase 50/60HZ
Category:Tube filling sealing machine

EMAIL

Technical Parameters

Model LT-006

Sealing Dia 16-50mm

Output power 2000W

Voltage AC220V/single phase 50/60HZ

36Machine weight 360kgs

After packaging 400kgs

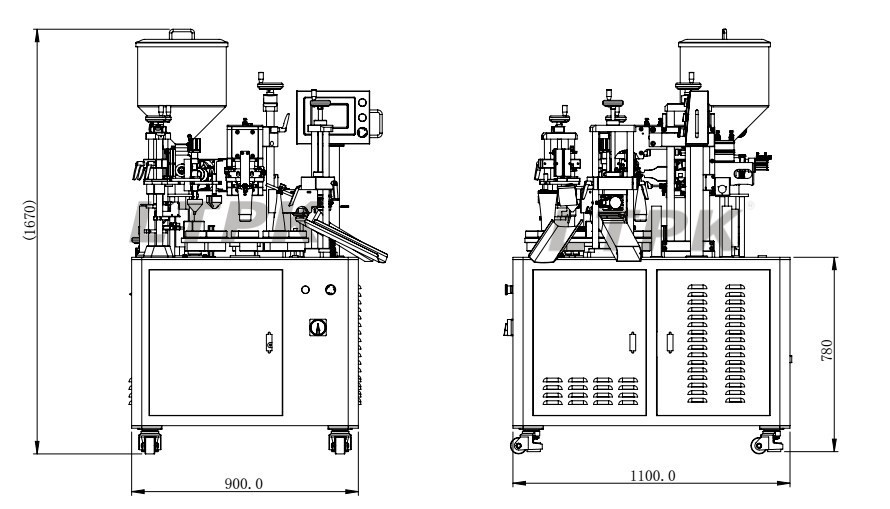

Machine size  1300*900*1550mm

Filling Range A:6-60ml, B:10-120ml,C:25-250ml,D:50-500ml (Customer made available)

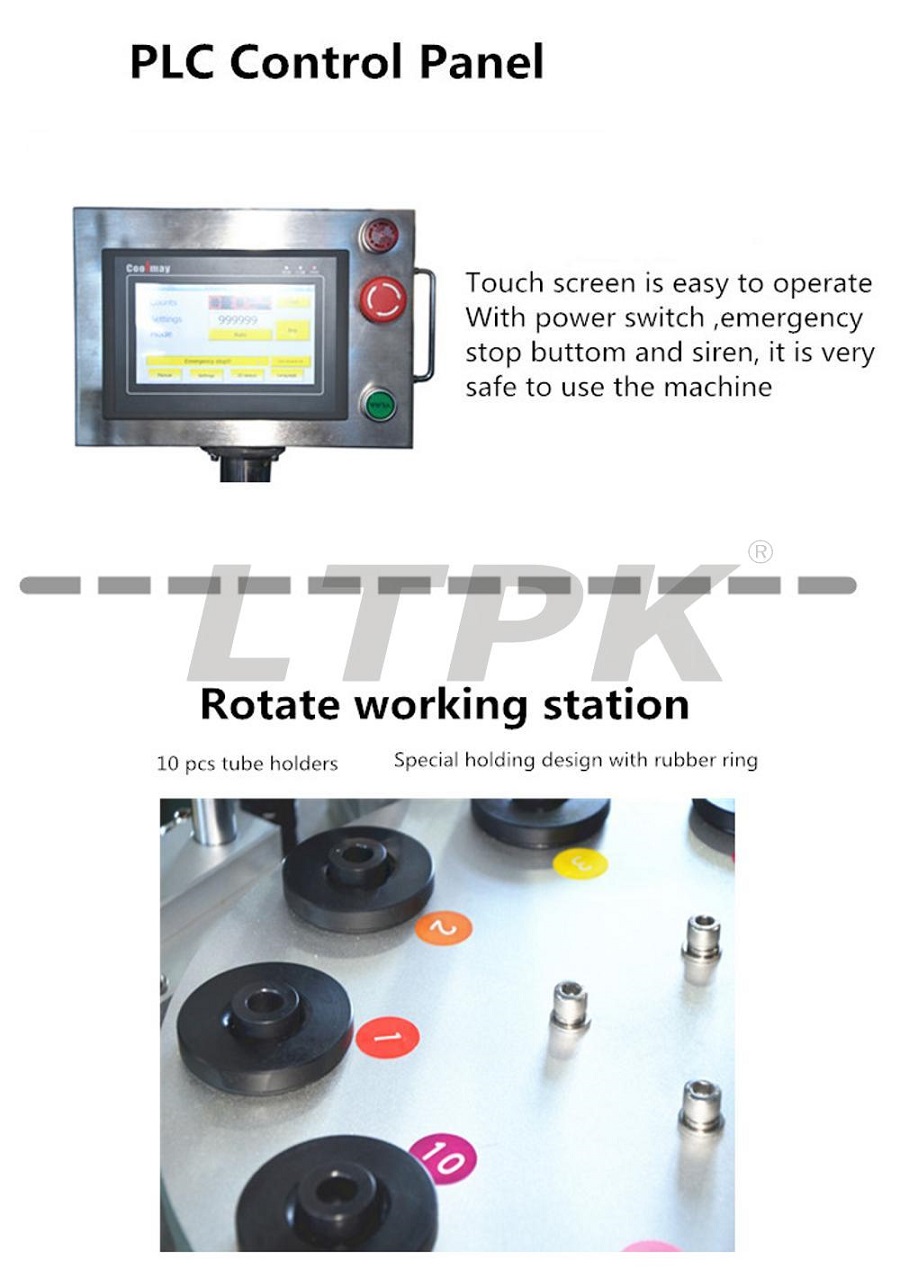

Control Style PLC control

Time adjust  directly from touch screen

Packaging Ply wooden case packaging


Main Features

1. Easy to operate and maintain.

2. Automatic positioning, filling, sealing, cutting and trimming, printing code in one time.

3. Stainless steel machine body, strong and beautiful looks,

4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.

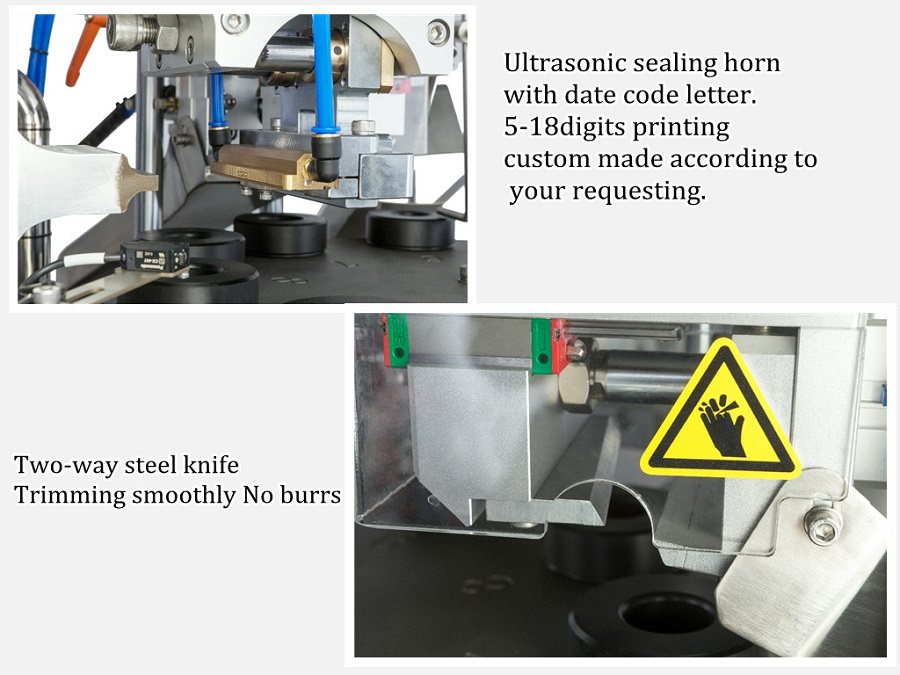

5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.

6. Ultrasonic frequency can meet international standard, no harmful to human being or environment

7. Can be work in time, not need wait the heat time .

Advantages

1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.

2. Overload protection, phase separation protection, power-fail protection.

3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material. No need preheating before sealing and no need working with industrial chiller.

4. With tube end trimming

5. Easy change working mold for difference tube diameter

6. Adjustable tube length

7. Machine include a gear pump filler( Good filling precision+- 1%)
