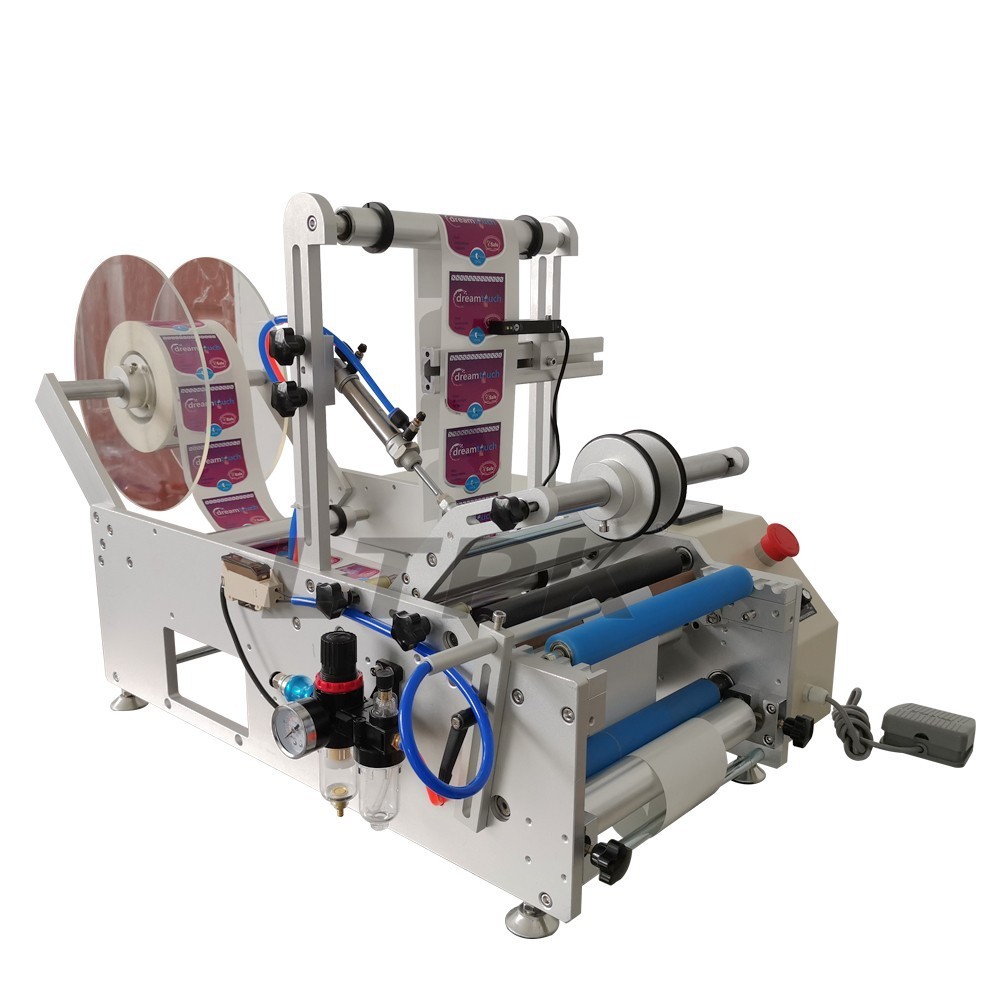

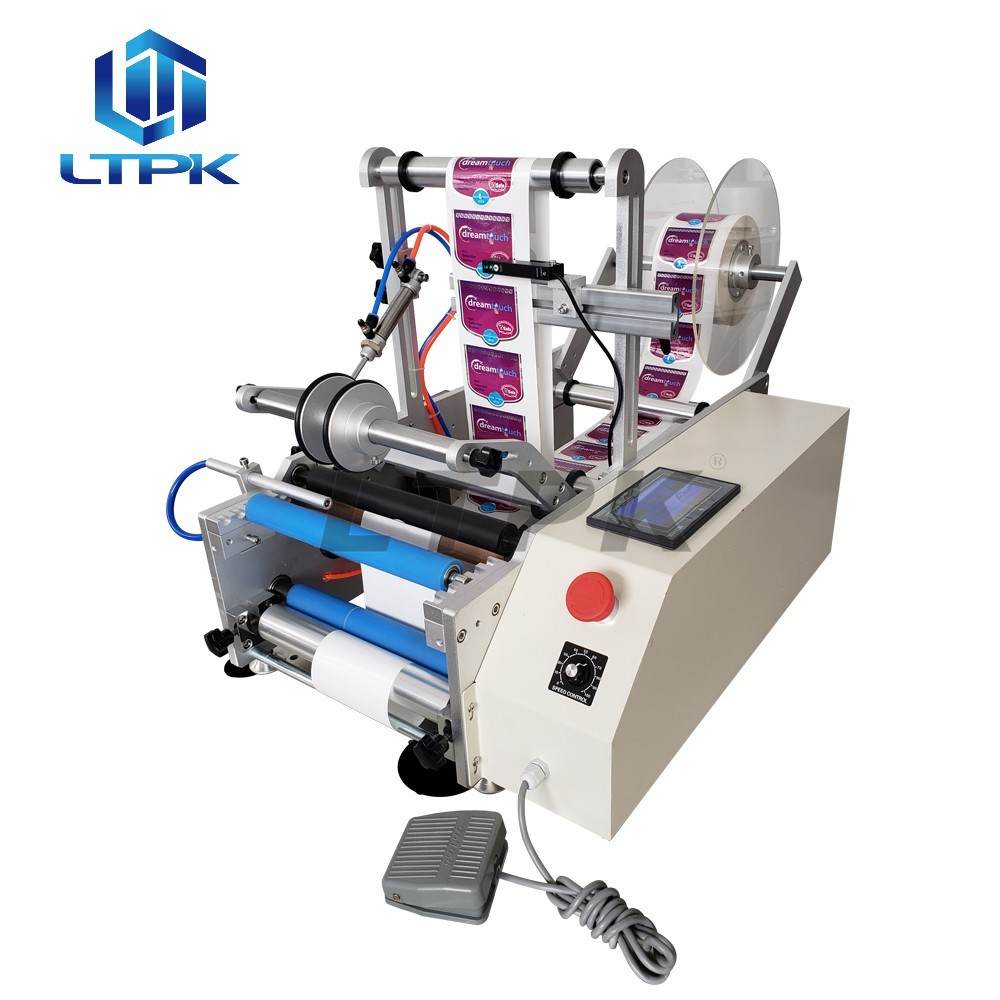

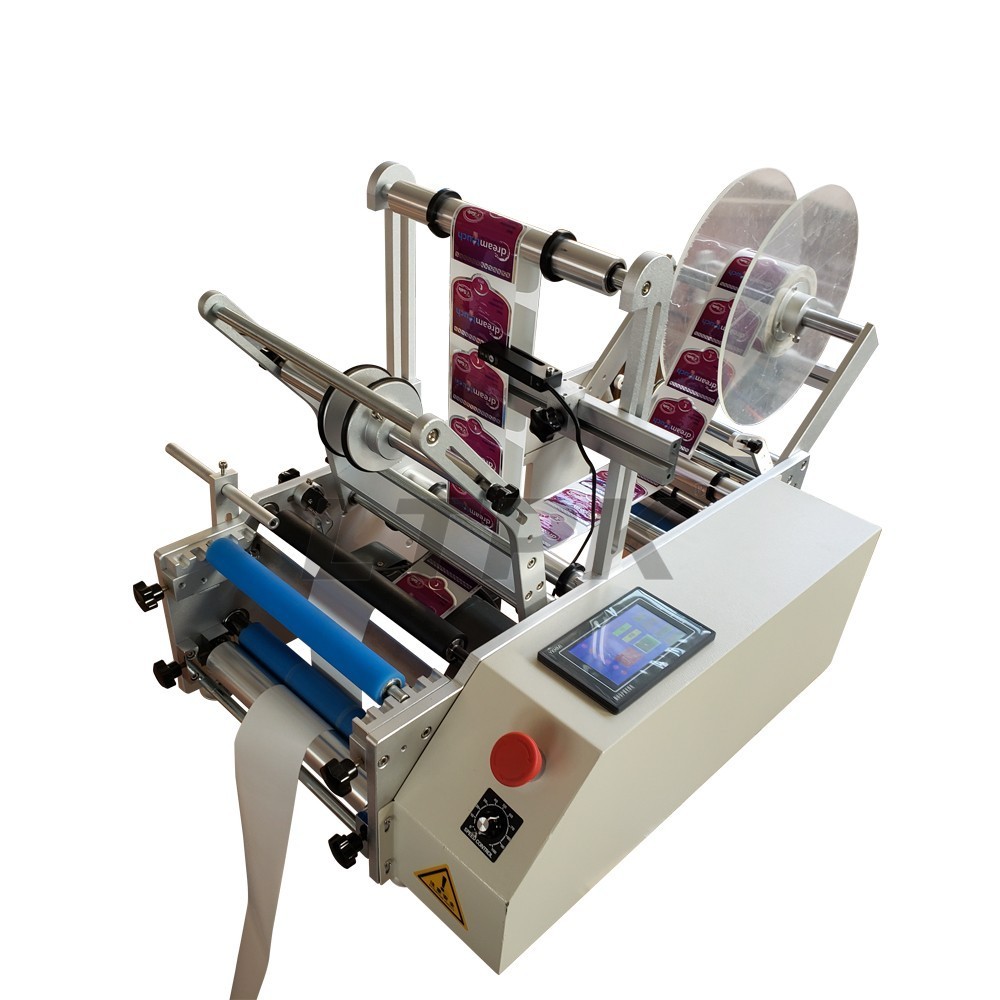

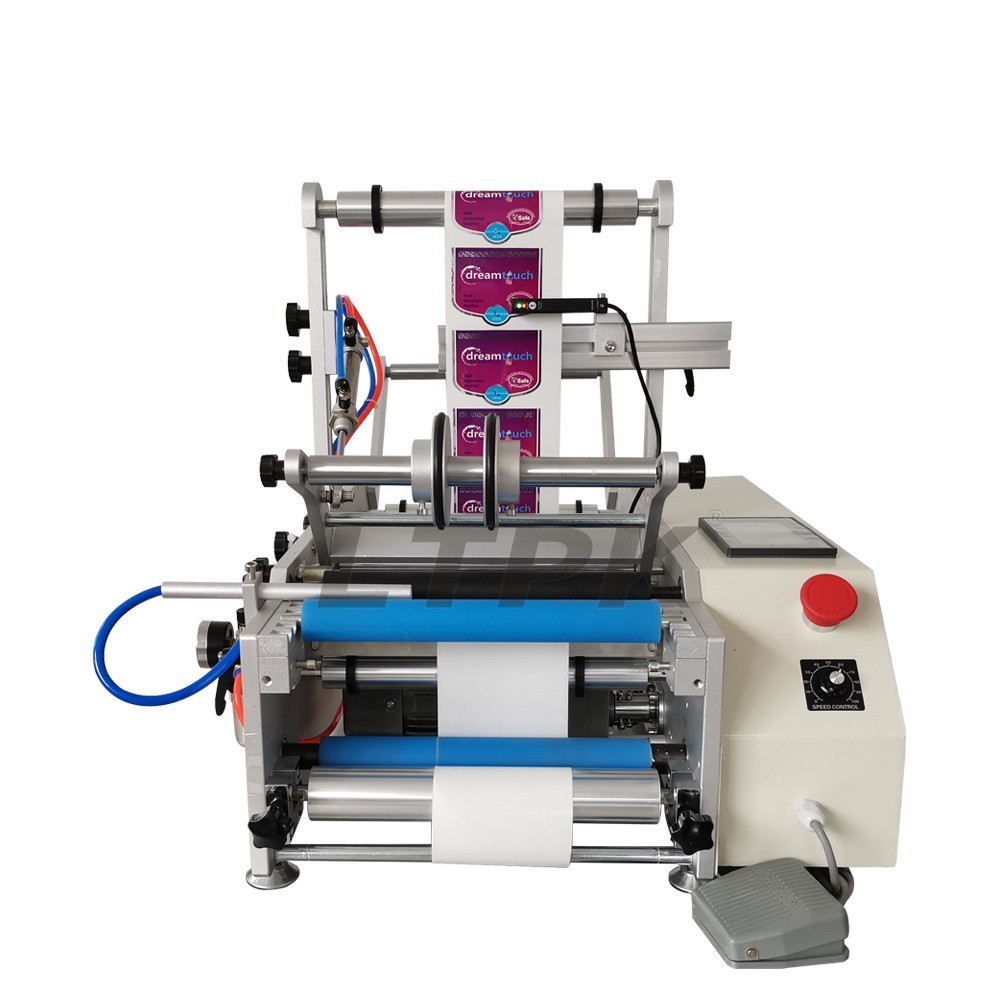

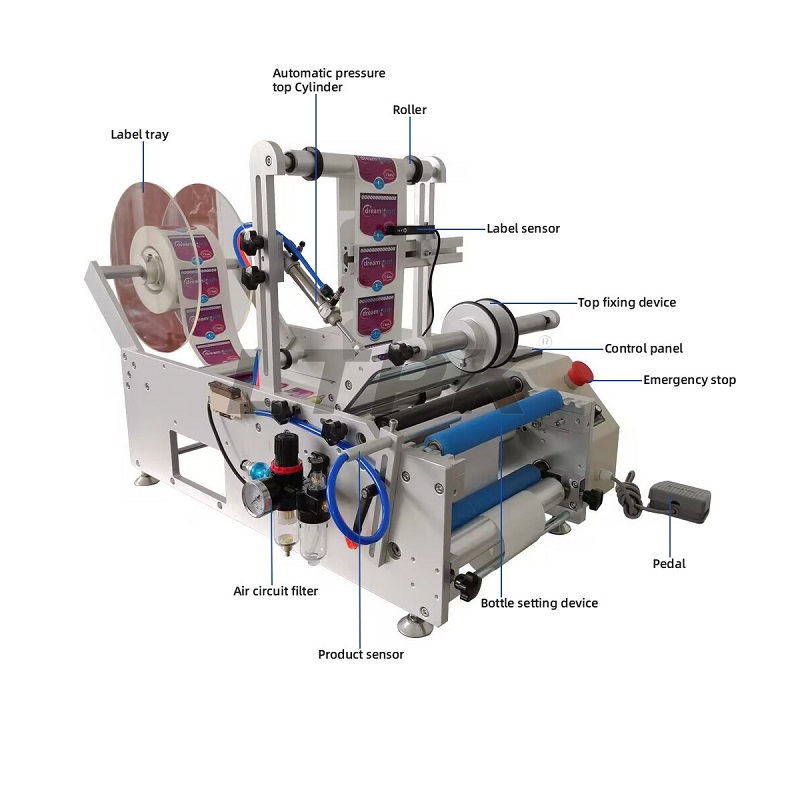

LTPK LT-190 Semi automatic Double Side Round Bottle Labeling Machine

LTPK LT-190 Semi automatic Double Side Round Bottle Labeling Machine

Description：

1.Two working mode:Pedal switch control or automatic working mode
2.Labeling function:Single side labeling and double side labeling (The space between two labels can be adjusted.)
3.Labeling speed is adjustable,improve the working efficiency greatly
4.Can be equipped with date printer,make labeling and printing at one machine.

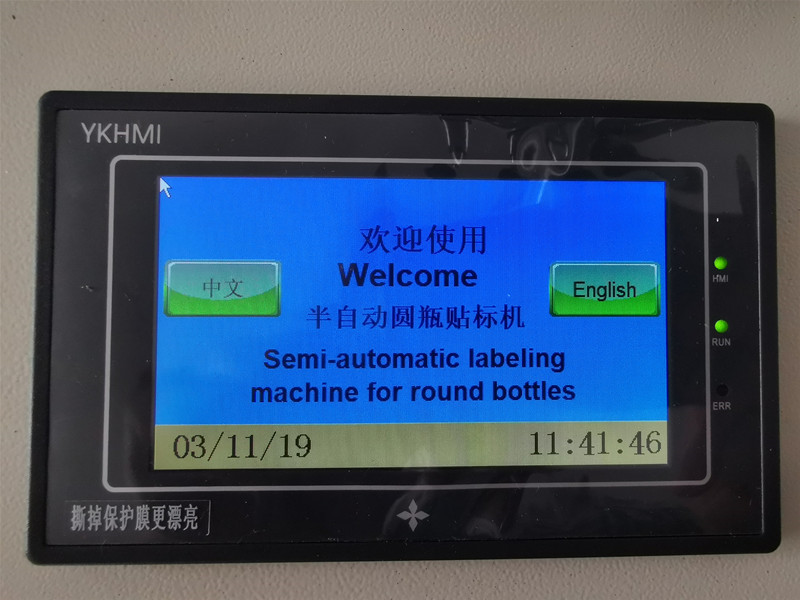

5.Intelligent operation panel:Easy to adjust the working data,improve the product quality.

Application
It is suitable for labeling cylindrical objects of various specifications and small taper round bottles, such as cosmetics round bottles, wine bottles, etc. markers can be adjusted arbitrarily. Widely used in food, cosmetics, chemical industry, brewing, medicine and other industries.
Notice:
1. The front and back label on the same roll.
2.If you need the labeling machine for Flat Or irregular thing. please contact us for customization.

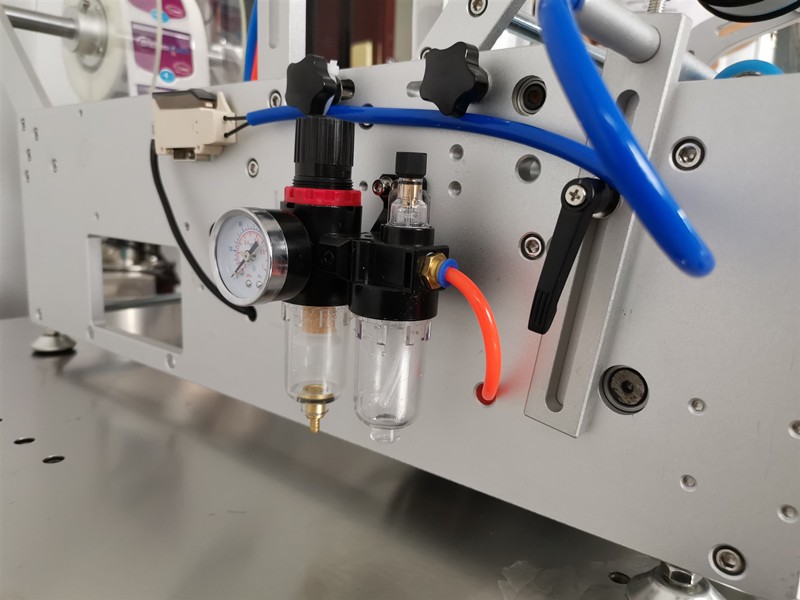

3. This machine should work with air compressor , please contact us if you need. Thank you!!

Technical Parameters

Model:LT-190

Labeling capacity(pcs/min) 15-35PCS/min

Labeling accuracy(mm) ±1.0mm

Label size(mm) (L)20-200mm (H)20-300mm

Suitable Bottle Diameter φ10-φ150mm

Suitable Bottle Height ≤26cm

Roll inside(mm) φ76mm

Roll outside diameter(mm) φ250mm

Power supply AC220V 50Hz/60Hz 250W

Machine size About 450*930*525mm

Package size About 755*535*380mm

Net weight/Gross weight About 42.5kg/50kg
