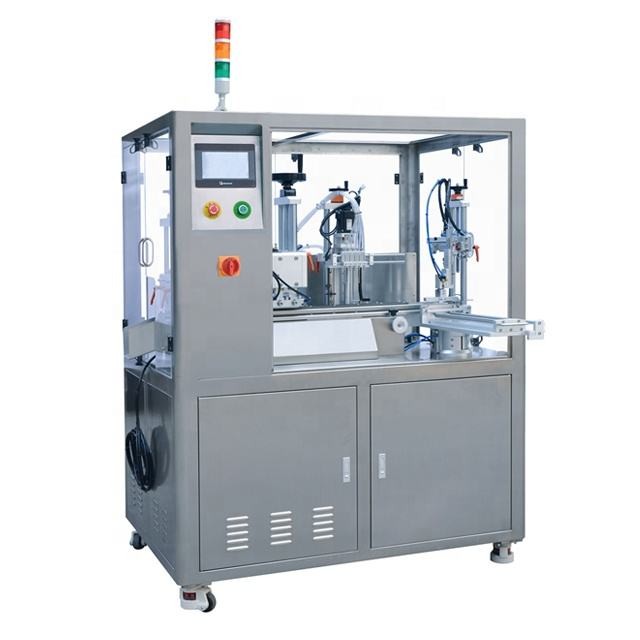

LTPK LT-005H Tube Filling Sealing Machine a Group Automatic Vial Filling Machine

Product Item:LT-005H
Output power 2600W
Filling range 1-10ml
Machine size 1300*1300*1640mm
Max Sealing Length 140mm
Category:Tube filling sealing machine


Technical Parameters

Model LT-005H

Filling range 1-10ml

Output power 2600W

Voltage AC220V/single phase 50/60HZ

Machine weight 360kgs

After packaging 380kgs

Machine size  1300*1300*1640mm

Max Sealing Length 140mm

Control Style PLC control

Time adjust  electronic adjust

Packaging Plywooden case packaging


Main Features

1. Easy to operate and maintain.

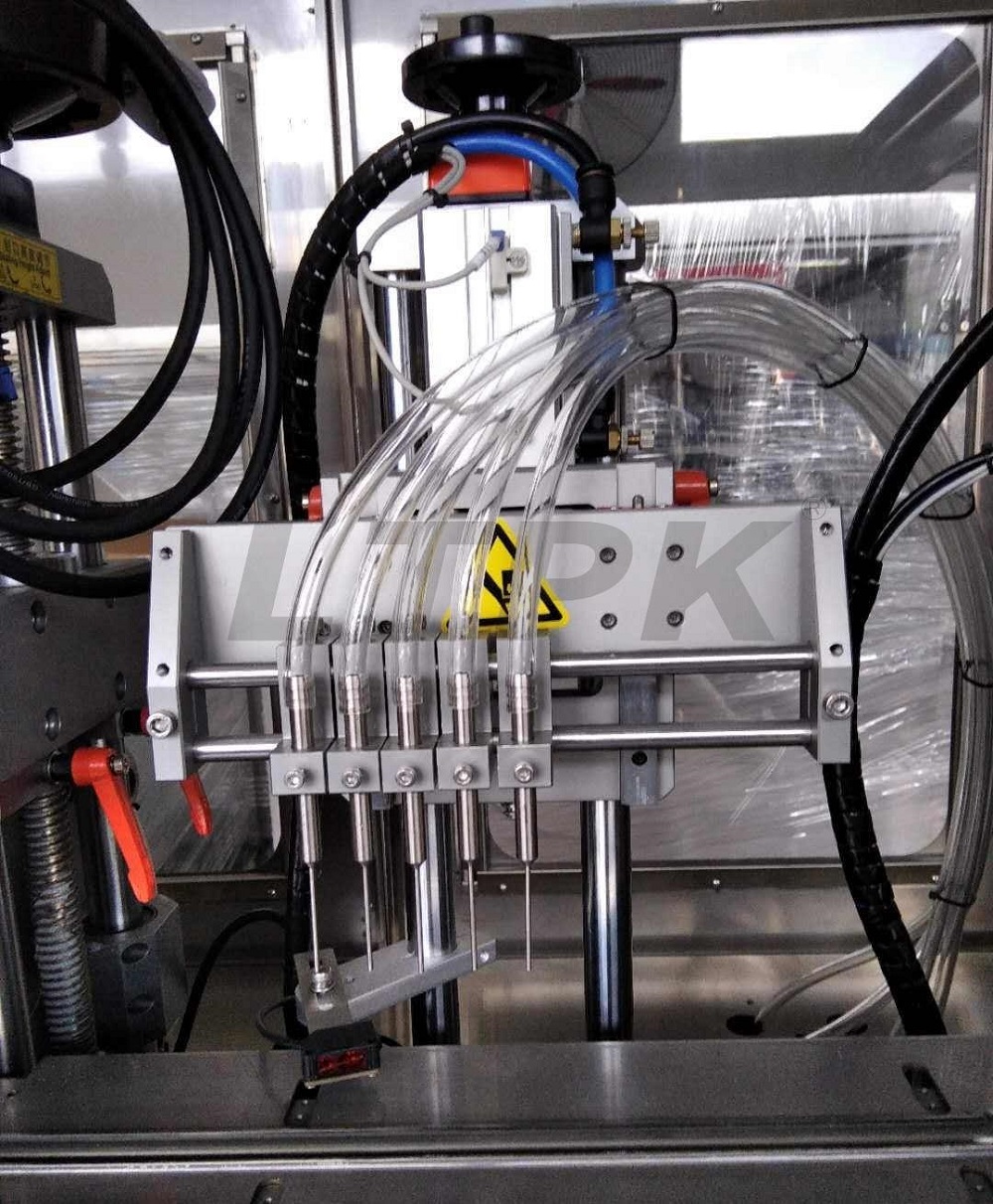

2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.

3. Stainless steel machine body, strong and beautiful looks,

4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.

5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.

6. Ultrasonic frequency can meet international standard, no harmful to human being or environment

7. Can be work in time, not need wait the heat time .


1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.

2. Overload protection, phase separation protection, power-fail protection.

3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.

4. With tube end trimming

5. Easy change working mold for difference tube diameter

6. Adjustable tube length

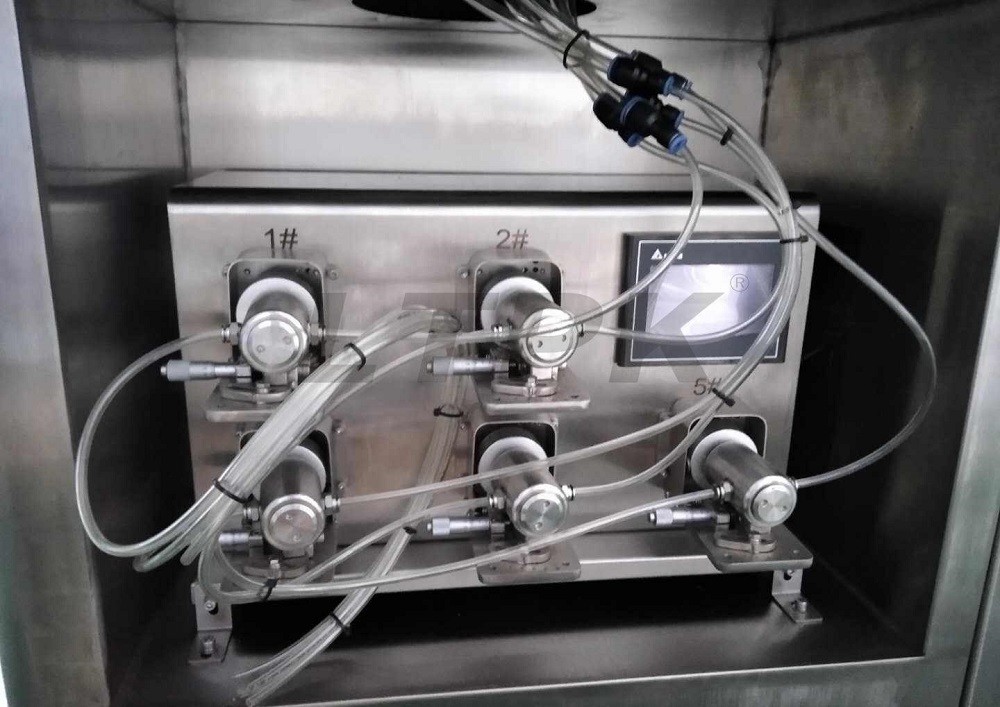

7. Machine include a gear pump filler( Good filling precision+- 1)
