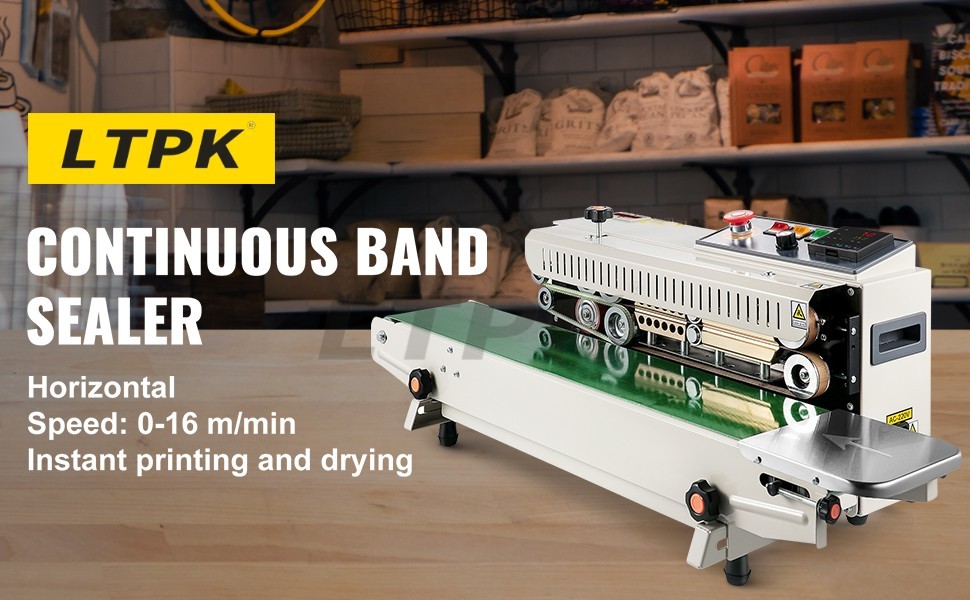

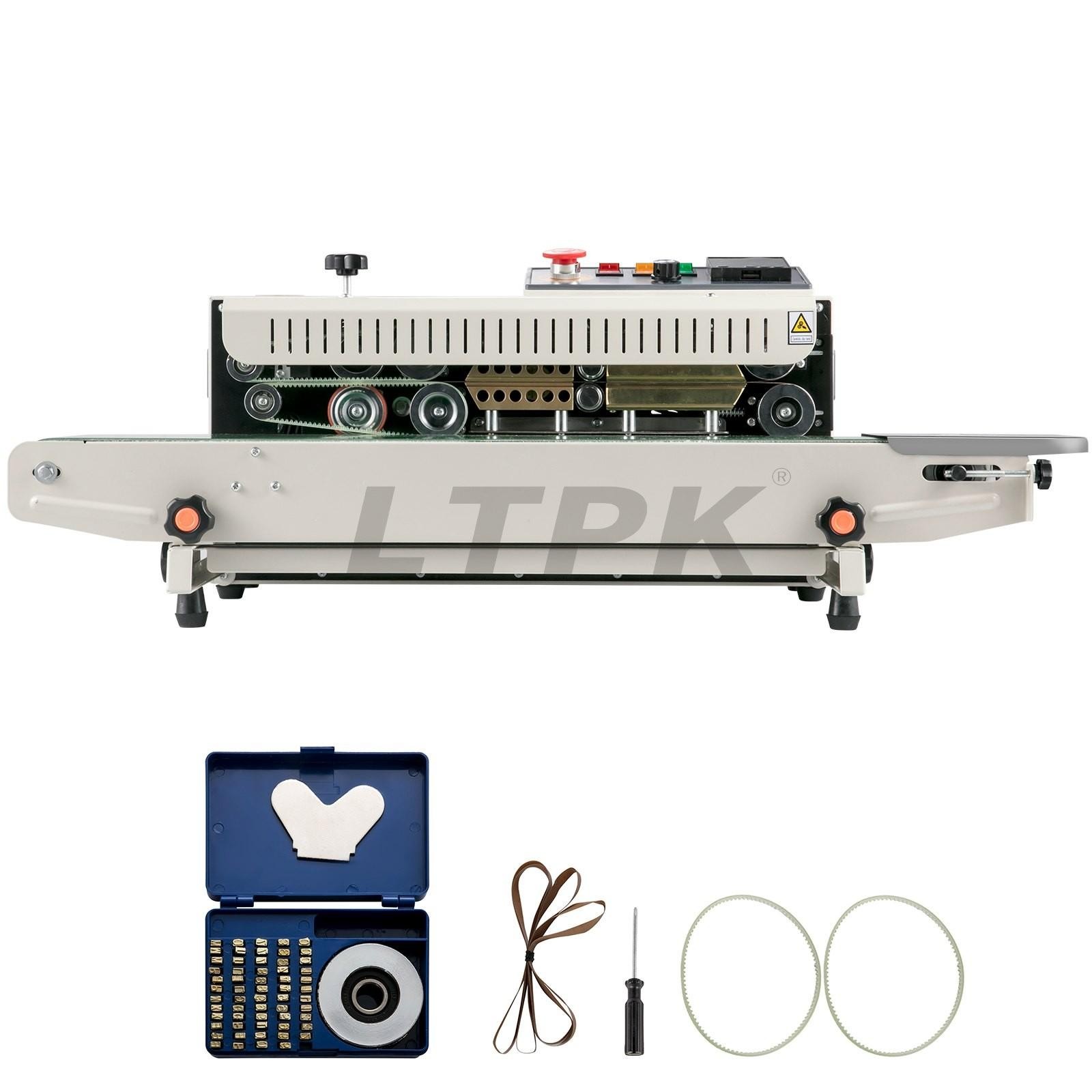

FR770W Horizontal Bag Sealer with Digital Temperature Control

Product Item:FR-770W
Voltage: 110V/60 Hz
Heating power: 700W
Seal Width: 0.24-0.59 in / 6-15 mm
Sealing Speed: 0-16 m/min
Category:Bag sealing machine

EMAIL

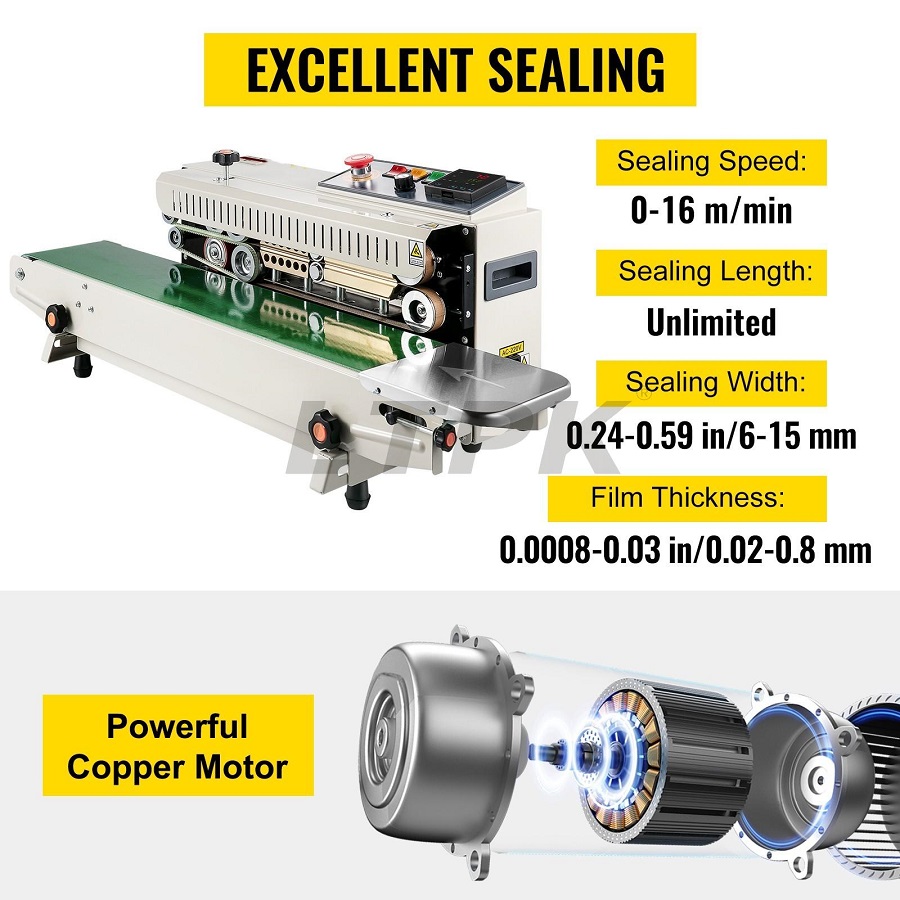

Premium Sealing: Our FR770A horizontal continuous sealing machine is suitable for different assembly lines with premium sealing. Sealing speed: 0-16 m/min, sealing width: 0.24-0.6 in/6-15 mm, film thickness: 0.0008-0.3 in/0.02-0.8 mm. The automatic conveyor belt and cooling/heating block both help the machine work more stably and securely.

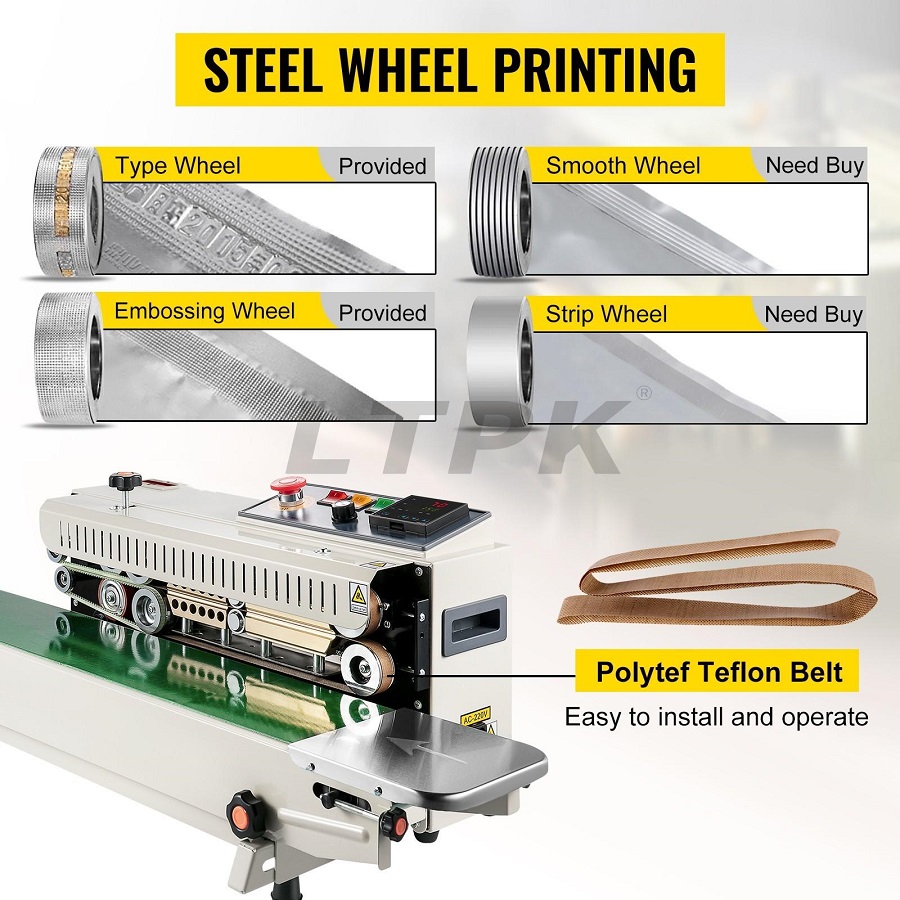

Efficient Printing: This continuous sealing machine is equipped with an embossing wheel and type wheel, which can print date, remark, introduction, logo simultaneously when sealing. Furthermore, this sealer is also compatible with a stripping wheel and smooth wheel to meet your various demands to some extent.

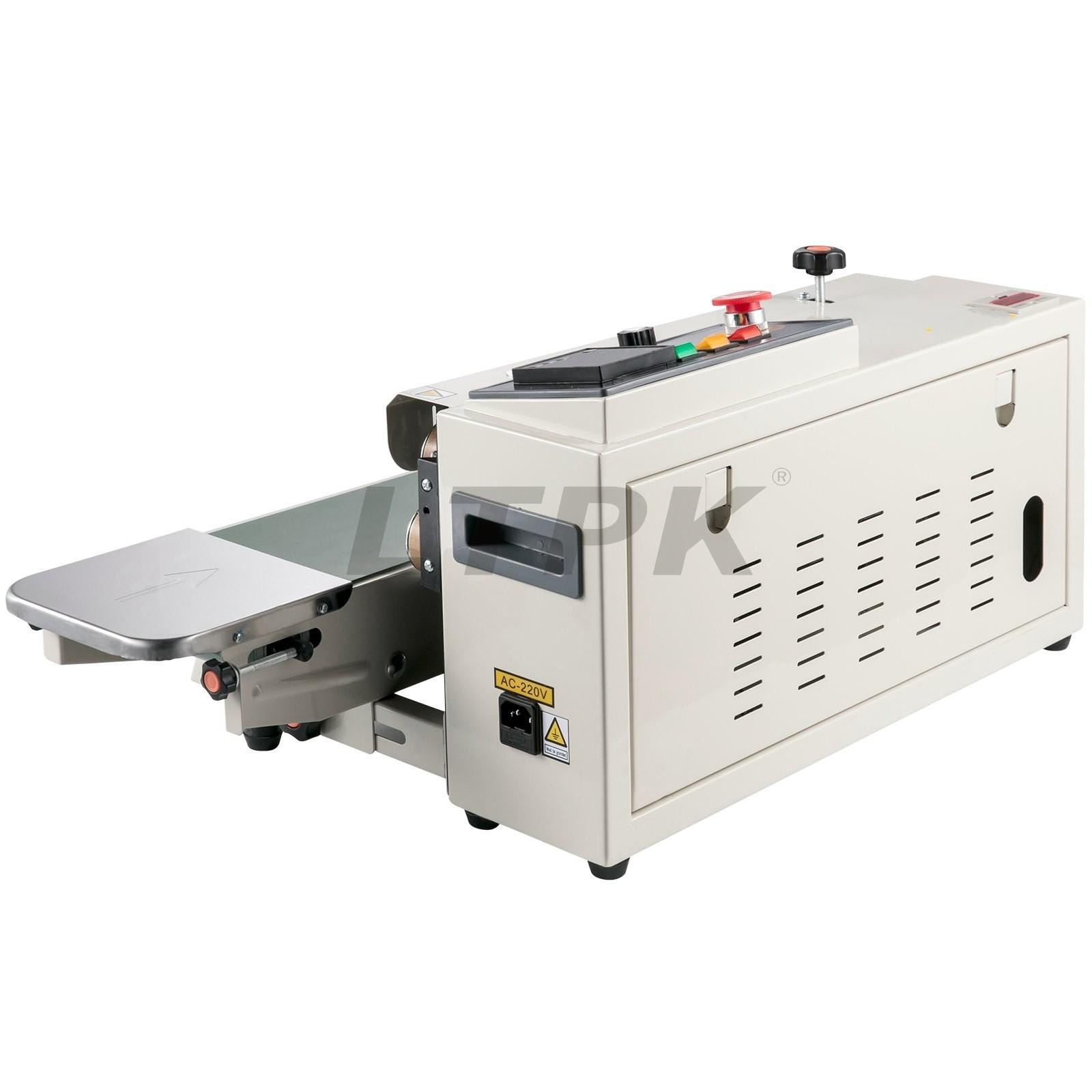

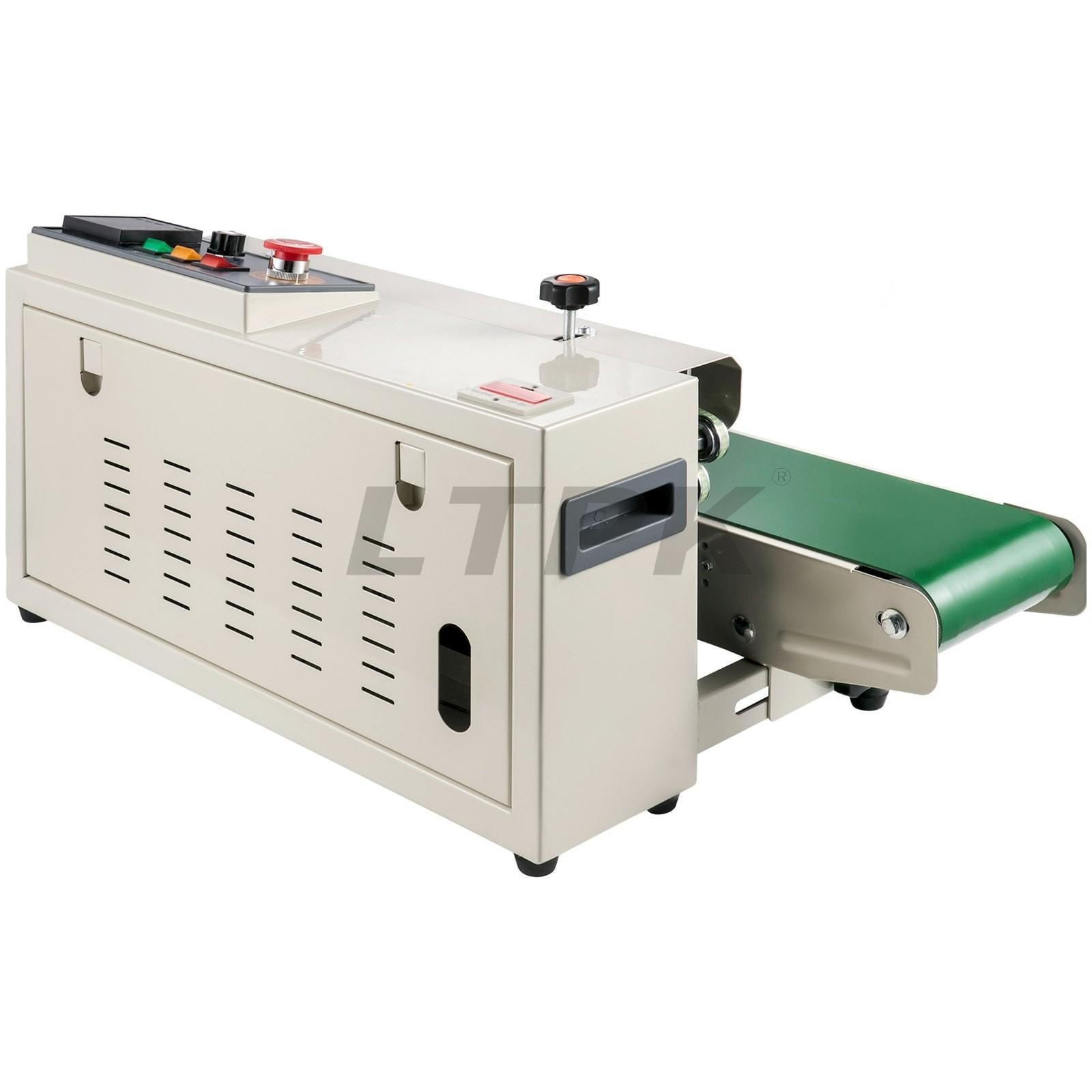

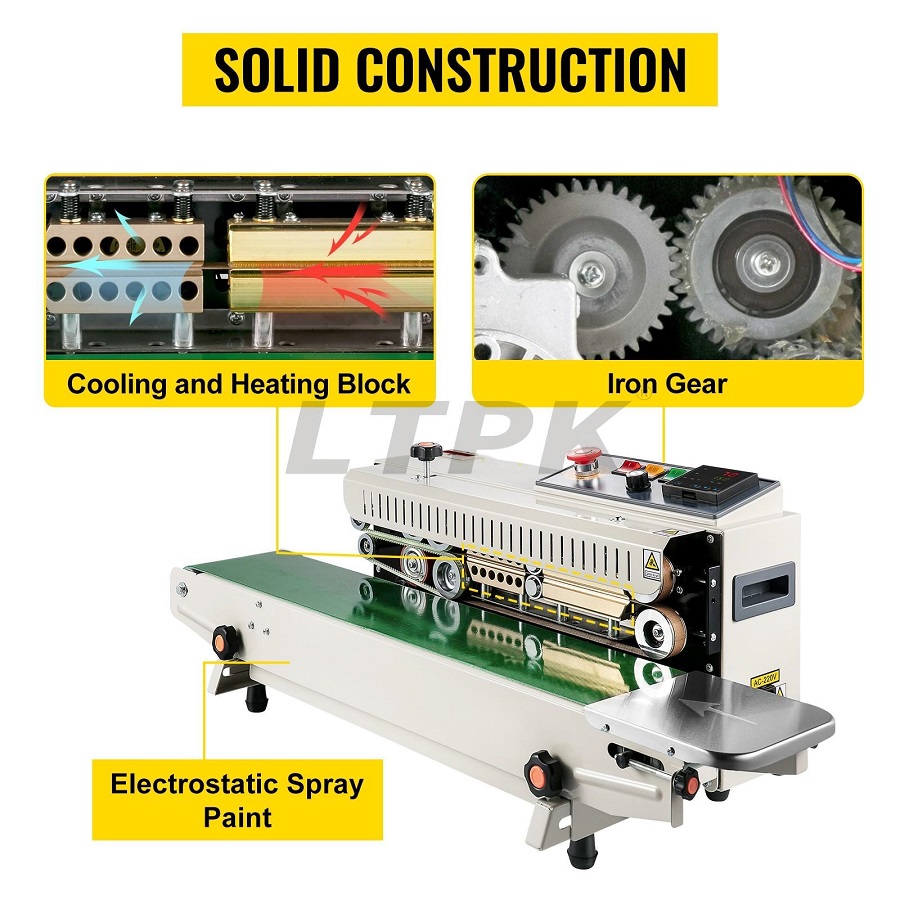

All-Metal Construction: Our horizontal bag sealer has a durable iron body with electrostatic spray paint. This all-metal construction ensures the sealer provides a long-life service. In addition, this machine is constructed by a DC copper motor that provides enormous working power.

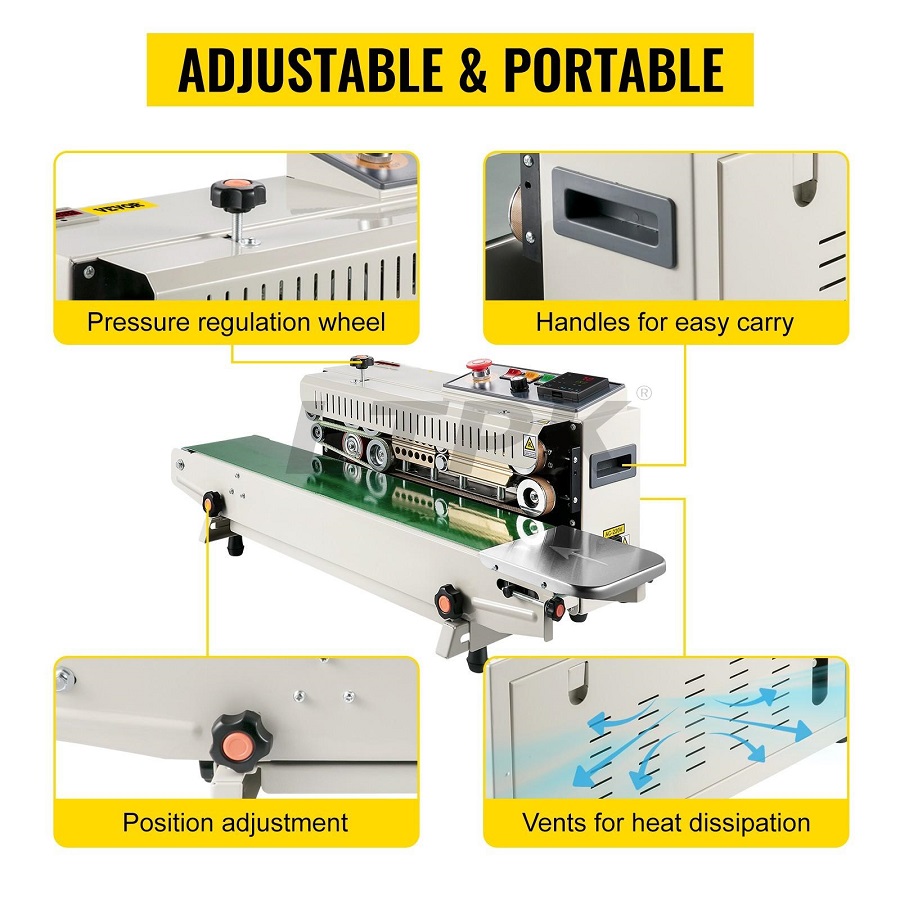

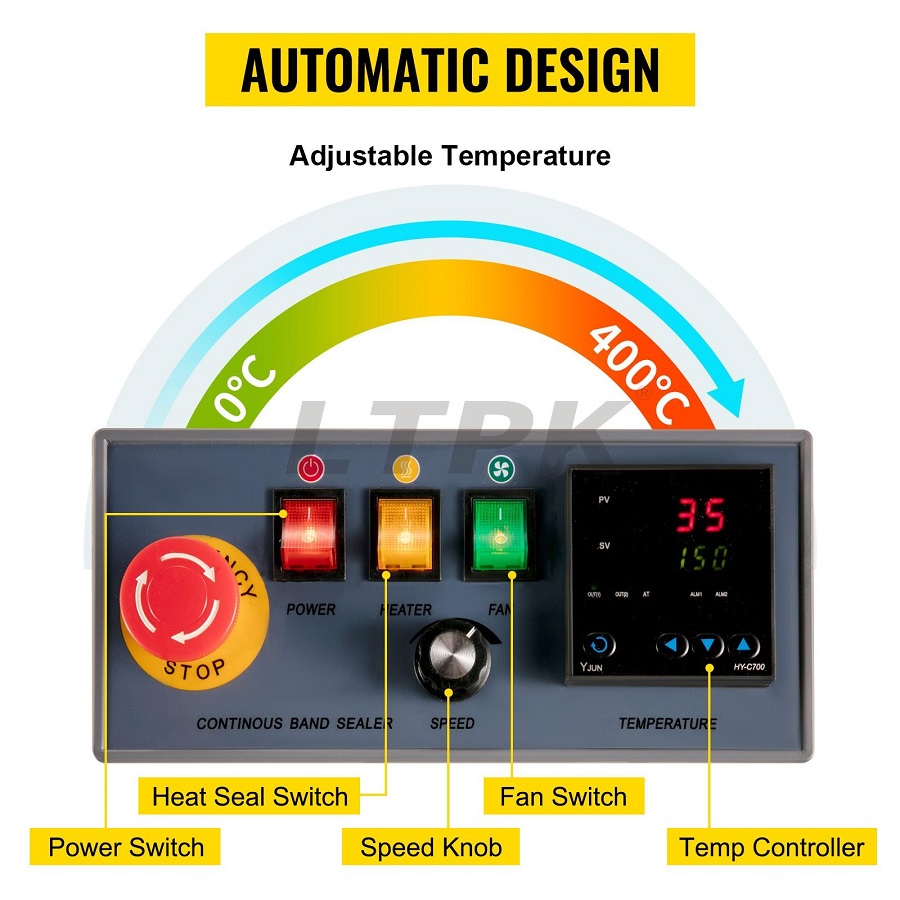

Powerful Control Panel: Automatic control panel is included in this band sealing machine for better operation. Different products need different sealing temperatures and speeds. Our machine can satisfy your working needs quickly because it possesses a thermostatic control, heat seal switch, and speed control knob.

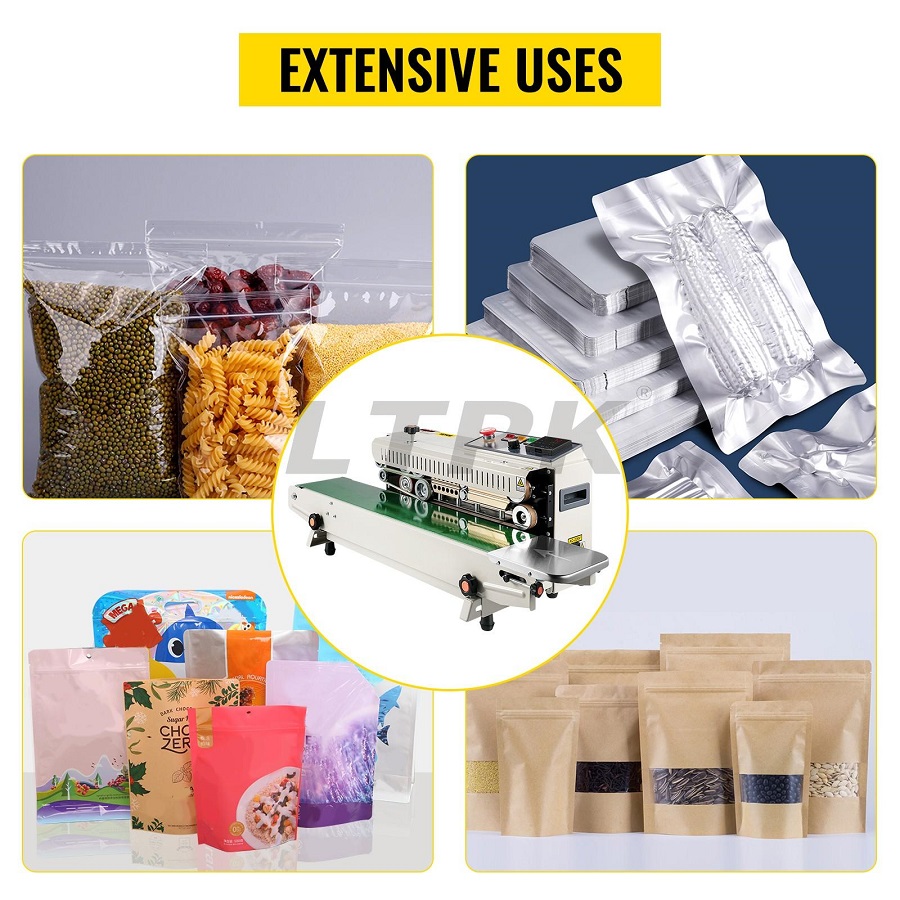

Wide Application: This kind of continuous bag sealer is compatible with bags in thickness of 0.02 mm-0.8 mm on both sides, which is applied to the seal of plastic bag, aluminum foil bag, compound bag, and paper bag. As a result, it is widely used in pharmacy, agriculture, industrial, food, etc.



Technical Parameters

  • Pattern: Horizontal

  • Voltage: 110V/60 Hz

  • Heating power: 700W

  • Seal Width: 0.24-0.59 in / 6-15 mm

  • Sealing Speed: 0-16 m/min

  • Sealing thickness: 0.0008-0.03 in / 0.02-0.08 mm

  • Temperature control range: 0 - 400 °C/32 ℉ - 752 ℉

  • Conveyor Load: Max. 11 lbs / 5 kg

  • Number of printing: ≤39pcs

  • Motor Power: 80W

  • Function: Sealing, Printing, Counting
